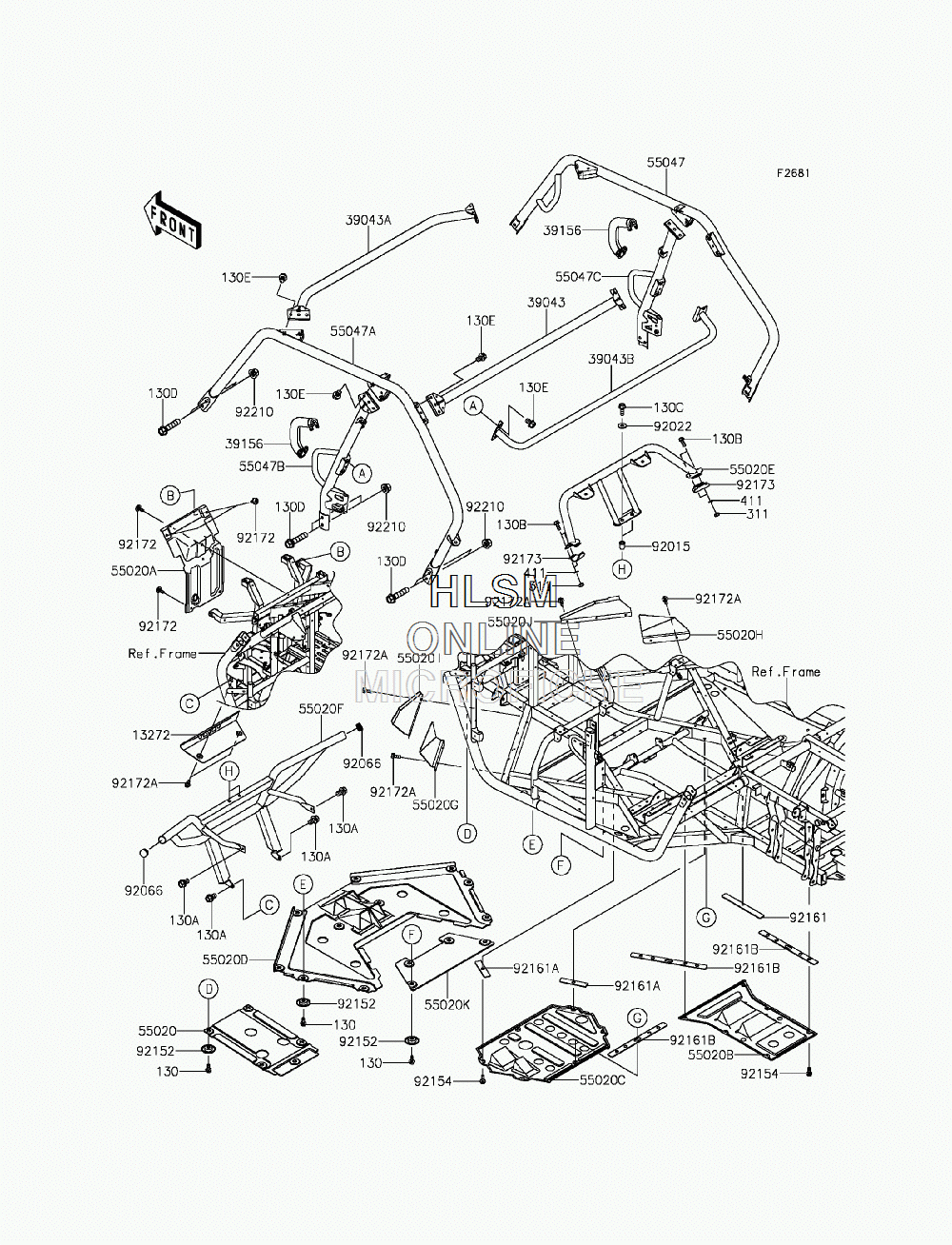

GUARD(S) / CAB FRAME для Kawasaki TERYX LE (KRF800CFF) - 2015 года выпуска
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
130A130BA1016 BOLT-FLANGED,10X16BOLT-FLANGED,10X16
-
130B130BB0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
130C130BB0822 BOLT-FLANGED,8X22BOLT-FLANGED,8X22
-
130D130BB1255 BOLT-FLANGED,12X55BOLT-FLANGED,12X55
-
130E130CB1014 BOLT-FLANGED,10X14BOLT-FLANGED,10X14
-
311311BB0600 NUT-HEX,6MMNUT-HEX,6MM
-
1327213272-1433-388 PLATE,(T.BLACK)PLATE,(T.BLACK)
-
3904339043-0009-388 CROSSMEMBER-COMP,UPPER, REAR,((T.BLACK))CROSSMEMBER-COMP,UPPER, REAR,((T.BLACK))
-
39043A39043-0010-388 CROSSMEMBER-COMP,UPPER, FRONT,((T.BLACK))CROSSMEMBER-COMP,UPPER, FRONT,((T.BLACK))
-
39043B39043-0015-388 CROSSMEMBER-COMP,((T.BLACK))CROSSMEMBER-COMP,((T.BLACK))
-
3915639156-0939 PAD,SHOULDERPAD,SHOULDER
-
5502055020-0723 GUARD,SKID, FRONTGUARD,SKID, FRONT
-
55020A55020-0741 GUARD, FRONT FRAMEGUARD, FRONT FRAME
-
55020B55020-0812 GUARD,SKID, REARGUARD,SKID, REAR
-
55020C55020-0815 GUARD,SKID,CNTGUARD,SKID,CNT
-
55020D55020-0890 GUARD,SKID, FRONT MIDDLEGUARD,SKID, FRONT MIDDLE
-
55020E55020-0891 GUARDGUARD
-
55020F55020-0895-388 GUARD, FRONT,(T.BLACK)GUARD, FRONT,(T.BLACK)
-
55020G55020-1846 GUARD,FLOOR, LEFT HAND,OUTGUARD,FLOOR, LEFT HAND,OUT
-
55020H55020-1847 GUARD,FLOOR, RIGHT HAND,OUTGUARD,FLOOR, RIGHT HAND,OUT
-
55020I55020-1874 GUARD,FLOOR, LEFT HAND,INGUARD,FLOOR, LEFT HAND,IN
-
55020J55020-1875 GUARD,FLOOR, RIGHT HAND,INGUARD,FLOOR, RIGHT HAND,IN
-
55020K55020-1883 GUARDGUARD
-
5504755047-0036-388 BAR-COMP,A/C-PILLAR, RIGHT HAND,(T.BLACK)BAR-COMP,A/C-PILLAR, RIGHT HAND,(T.BLACK)
-
55047A55047-0047-388 BAR-COMP,A/C-PILLAR, LEFT HAND,(T.BLACK)BAR-COMP,A/C-PILLAR, LEFT HAND,(T.BLACK)
-
55047B55047-0347-388 BAR-COMP,B-PILLAR, LEFT HAND,(T.BLACK)BAR-COMP,B-PILLAR, LEFT HAND,(T.BLACK)
-
55047C55047-0348-388 BAR-COMP,B-PILLAR, RIGHT HAND,(T.BLACK)BAR-COMP,B-PILLAR, RIGHT HAND,(T.BLACK)
-
9201592015-1793 NUT,POP,8MM,L=16.5NUT,POP,8MM,L=16.5
-
9202292022-1317 WASHER,8.5X20X1.6,(BLACK)WASHER,8.5X20X1.6,(BLACK)
-
9206692066-7503 PLUGPLUG
-
9215292152-0784 COLLARCOLLAR
-
9215492154-0887 BOLT,FLANGED,6X16BOLT,FLANGED,6X16
-
9216192161-1597 DAMPER,32X270X3DAMPER,32X270X3
-
92161A92161-1598 DAMPER,32X140X3DAMPER,32X140X3
-
92161B92161-1599 DAMPER,32X390X3DAMPER,32X390X3
-
9217292172-0826 SCREW,6X16SCREW,6X16
-
92172A92172-0869 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
9217392173-0779 CLAMPCLAMP
-
9221092210-0603 NUT,12MMNUT,12MM
-
411411AB0600 WASHER-PLAIN,6.5X13X1WASHER-PLAIN,6.5X13X1
