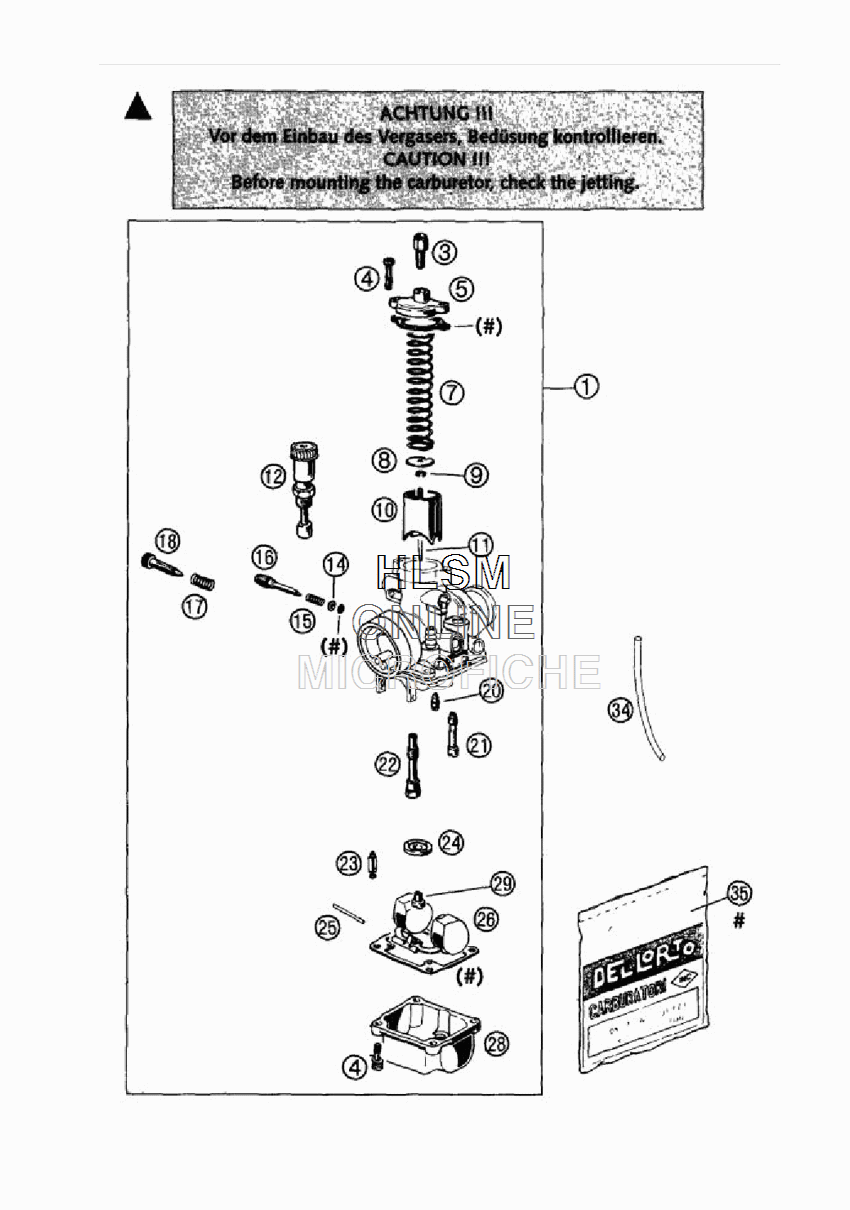

CARBURETOR DELLORTO PHBG 19 BS для Ktm 50 SX Pro Sr - 2002 года выпуска
-
№АртикулНазвание
-
145131001100 CARBUR. DELLO. PHBG 19 BSCARBUR. DELLO. PHBG 19 BS
-
357031525000 ADJUSTMENT SCREW M6X0,75ADJUSTMENT SCREW M6X0,75
-
40084040163 CYL.HEAD SCREW DIN84A M4X16CYL.HEAD SCREW DIN84A M4X16
-
545131027000 CARBURETOR COVER DELLORTO 19CARBURETOR COVER DELLORTO 19
-
745131030000 SPRING DELLORTOSPRING DELLORTO
-
845131109000 RETAINING SPRING DELLORTORETAINING SPRING DELLORTO
-
945131045000 SPRING DELLORTOSPRING DELLORTO
-
1045131035000 THROTTLE VALVE DELLO.19THROTTLE VALVE DELLO.19
-
1145131034009 JET NEEDLE W9JET NEEDLE W9
-
1245131048000 STARTING BUTTON DELLORTO 19STARTING BUTTON DELLORTO 19
-
1457031572000 WASHER 3,3 X 5,8 X 0,5WASHER 3,3 X 5,8 X 0,5
-
1545131015000 SPRING DELLORTOSPRING DELLORTO
-
1645131017000 AIR ADJUST SCREW DELLORTOAIR ADJUST SCREW DELLORTO
-
1745131016000 SPRING FOR AIR ADJUST SCREWSPRING FOR AIR ADJUST SCREW
-
1845131019000 IDLE ADJUST SCREWIDLE ADJUST SCREW
-
2045131007045 IDLING JET 45 DELLORTOIDLING JET 45 DELLORTO
-
2045131007048 IDLING JET 48 DELLORTOIDLING JET 48 DELLORTO
-
2045131007050 IDLING JET 50 DELLORTOIDLING JET 50 DELLORTO
-
2045131007052 IDLING JET 52 DELLORTOIDLING JET 52 DELLORTO
-
2145131051060 START JET 60 DELLORTOSTART JET 60 DELLORTO
-
2245131021260 NEEDLE JET 260NEEDLE JET 260
-
2345131020000 FLOATING NEEDLE VALVE DELLORTOFLOATING NEEDLE VALVE DELLORTO
-
2445131074000 COVER DELLORTOCOVER DELLORTO
-
2545131008000 PIN DELLORTOPIN DELLORTO
-
2645131009000 FLOAT 4 GR.FLOAT 4 GR.
-
2845131011000 FLOAT BOWL DELLORTO 19FLOAT BOWL DELLORTO 19
-
2915131123080 MAIN JET 80 DELLORTOMAIN JET 80 DELLORTO
-
2915131123085 MAIN JET 85 DELLORTOMAIN JET 85 DELLORTO
-
2915131123090 MAIN JET 90 DELLORTOMAIN JET 90 DELLORTO
-
3452031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
3545131099000 GASKET SET DELLORTO 19GASKET SET DELLORTO 19
Все узлы модели:
- BRAKE CALIPER FRONT
- • CARBURETOR DELLORTO PHBG 19 BS
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME W/ SIDE STAND
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- KICKSTARTER WITH BACKWARDS OPERATION
- MASK W/ FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- SHOCK ABSORBER - DISASSEMBLED
- SPECIAL TOOLS
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION
