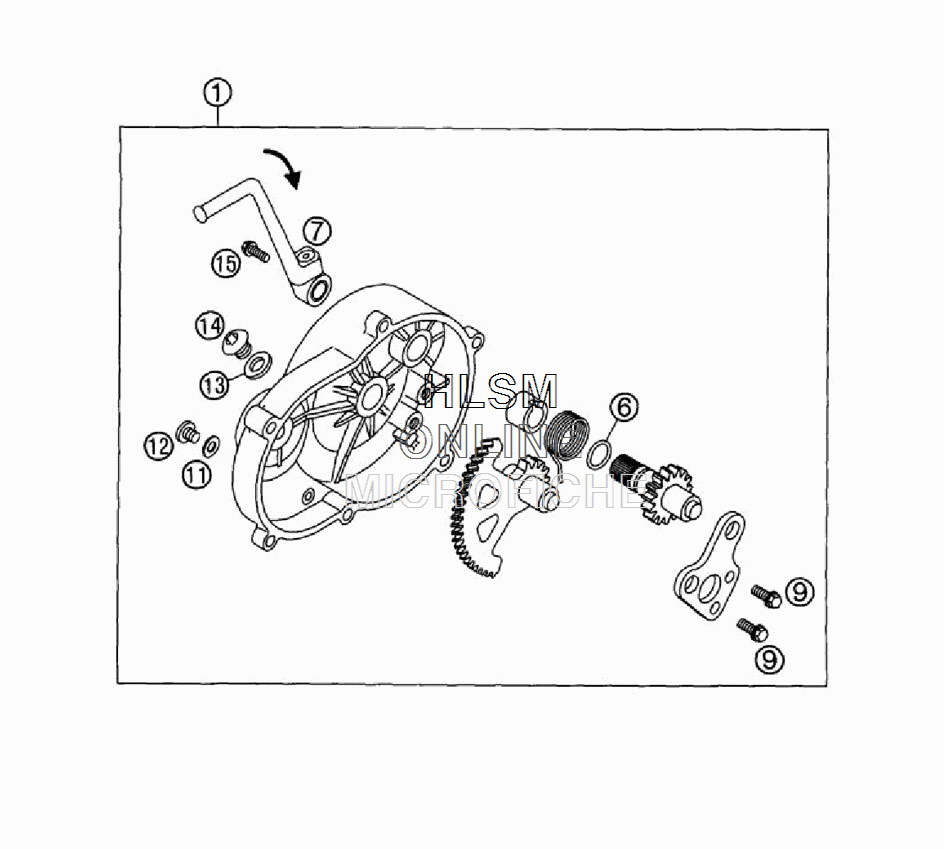

KICKSTARTER WITH BACKWARDS OPERATION для Ktm 50 SX Pro Sr - 2002 года выпуска
-
№АртикулНазвание
-
145130001044 CLUTCH C.F.KICK STARTER REARCLUTCH C.F.KICK STARTER REAR
-
645133057000 O-RING 12,5X1,5O-RING 12,5X1,5
-
746033070100 KICKSTARTER CPL. 60/65KICKSTARTER CPL. 60/65
-
90015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
110603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
120015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
1345130019000 GASKET FOR OIL PLUGGASKET FOR OIL PLUG
-
1445130020000 OIL PLUGOIL PLUG
-
150015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
Все узлы модели:
- BRAKE CALIPER FRONT
- CARBURETOR DELLORTO PHBG 19 BS
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME W/ SIDE STAND
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- • KICKSTARTER WITH BACKWARDS OPERATION
- MASK W/ FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- SHOCK ABSORBER - DISASSEMBLED
- SPECIAL TOOLS
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION
