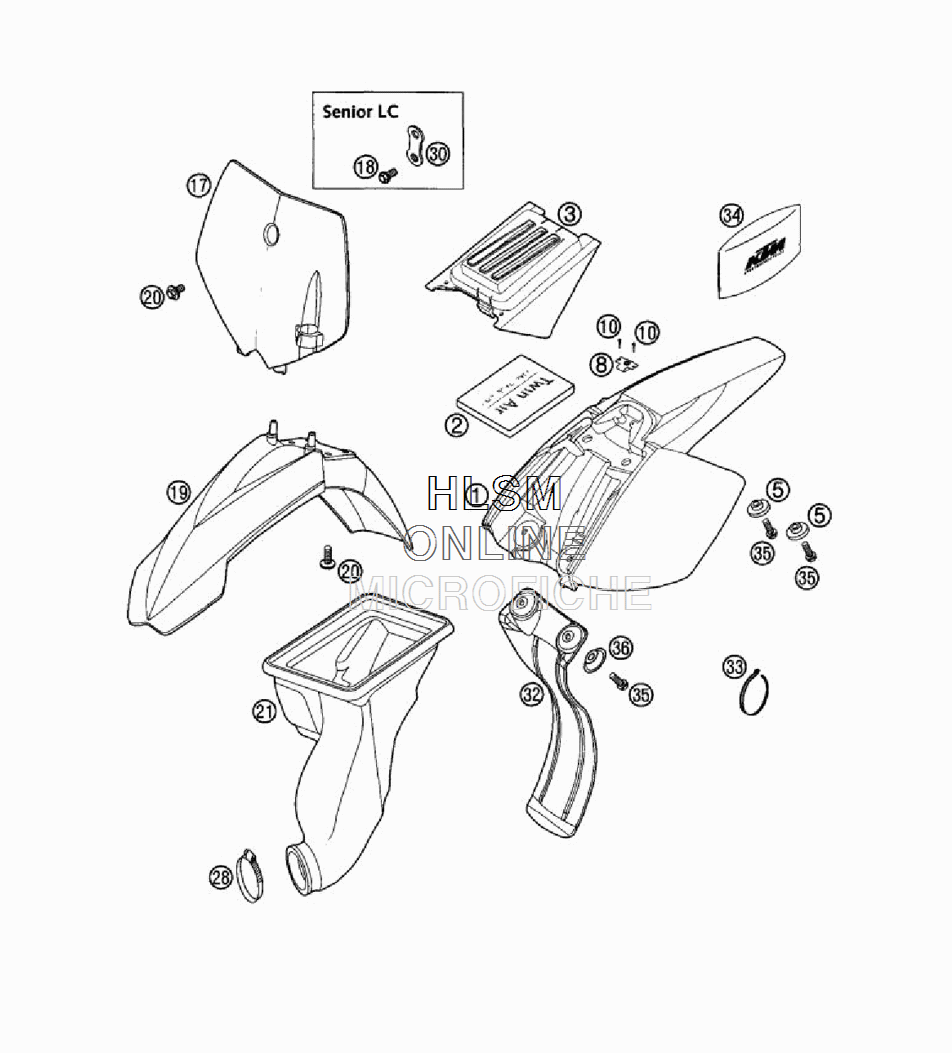

MASK W/ FENDERS для Ktm 50 SX Pro Sr - 2002 года выпуска
-
№АртикулНазвание
-
14510801300030 REAR PART 50 MINI BLACKREAR PART 50 MINI BLACK
-
245106015000 AIR FILTER 134X96X15 MMAIR FILTER 134X96X15 MM
-
345106012000 FILTER COVERFILTER COVER
-
545108013050 BUSH F. REAR P.BUSH F. REAR P.
-
845007040050 THRUST BEARING QUICK RELEASETHRUST BEARING QUICK RELEASE
-
100981350163 SHEET MET.SCR.DIN7981- 3,5X16SHEET MET.SCR.DIN7981- 3,5X16
-
174510800700004 NUMBER PLATENUMBER PLATE
-
180015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
194510801000004 FENDER FRONTFENDER FRONT
-
200014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
2145106026100 CARBUR.CONNEC.BOOTCARBUR.CONNEC.BOOT
-
2810001120000 CLAMP 25-40 SGT 4CLAMP 25-40 SGT 4
-
3045108007050 BRACKET FOR NUMBER PLATEBRACKET FOR NUMBER PLATE
-
3245106010100 SPLASH PROTECTORSPLASH PROTECTOR
-
3344011076305 CABLE TIE 290MMCABLE TIE 290MM
-
3445029099000 TOOL SET 50 MINI, 60/65TOOL SET 50 MINI, 60/65
-
350015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3672210079000 BUCKETBUCKET
Все узлы модели:
- BRAKE CALIPER FRONT
- CARBURETOR DELLORTO PHBG 19 BS
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME W/ SIDE STAND
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- KICKSTARTER WITH BACKWARDS OPERATION
- • MASK W/ FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- SHOCK ABSORBER - DISASSEMBLED
- SPECIAL TOOLS
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION
