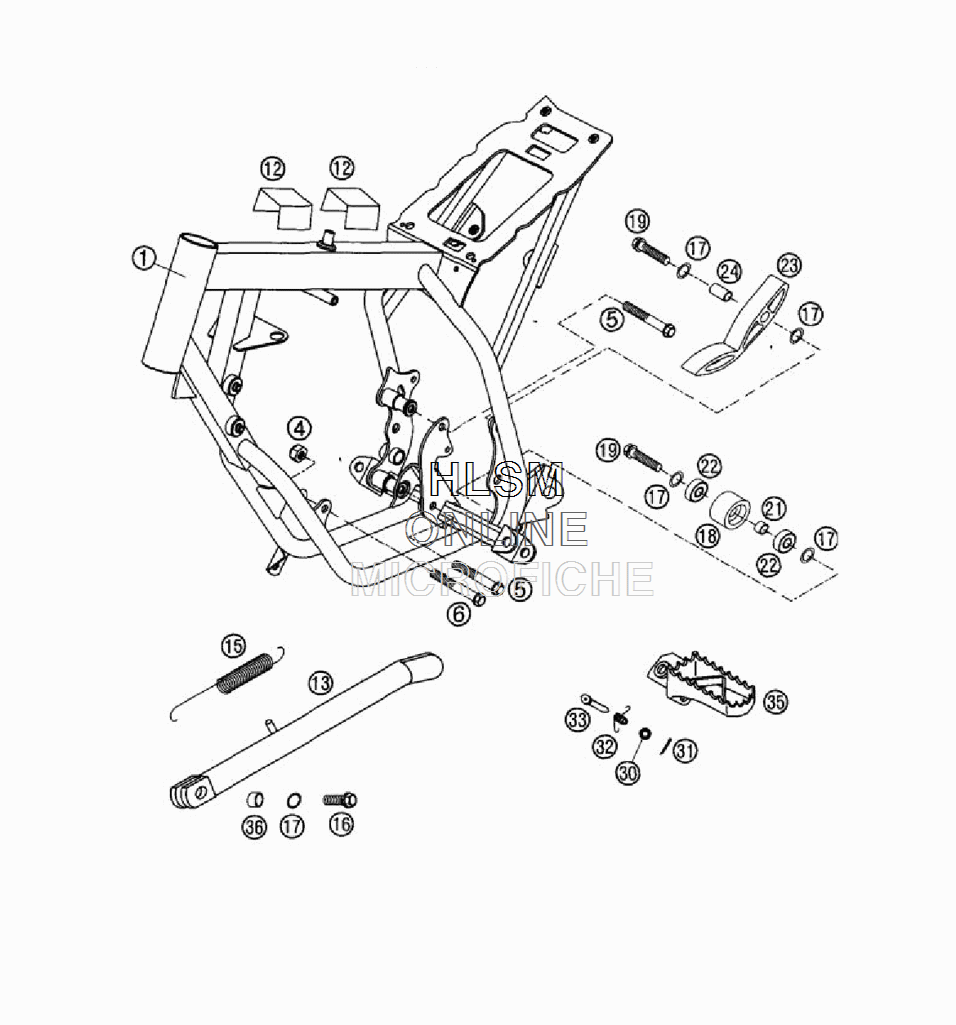

FRAME W/ SIDE STAND для Ktm 50 SX Pro Sr - 2002 года выпуска
-
№АртикулНазвание
-
145103001100 FRAME PRO SEN.LC (MC1R)FRAME PRO SEN.LC (MC1R)
-
454310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
50015080603 HH COLLAR SCREW M 8X60 W5=10HH COLLAR SCREW M 8X60 W5=10
-
60015080653 HH COLLAR SCREW M8X65 SW10HH COLLAR SCREW M8X65 SW10
-
1258711054050 METAMOLL FOR BATTERY BRACKETMETAMOLL FOR BATTERY BRACKET
-
134510302300090 SIDE STAND L=319MM SILVERSIDE STAND L=319MM SILVER
-
1551003021000 SIDESTAND SPRING LONGSIDESTAND SPRING LONG
-
160015080203 HH COLLAR SCREW M 8X20 WS=10HH COLLAR SCREW M 8X20 WS=10
-
1736003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
1850203053000 CHAIN ROLL D=30MMCHAIN ROLL D=30MM
-
190015080303 HH COLLAR SCREW M8X30 WS=10HH COLLAR SCREW M8X30 WS=10
-
2174003021000 BUSHING 8 X 12 X 6,5BUSHING 8 X 12 X 6,5
-
220625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
2351103053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
2451103053051 BUSHING 8,2X10X20BUSHING 8,2X10X20
-
300125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
310094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
3254603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
3354603044000 BOLT FOR FOOTREST 9,8 X 50BOLT FOR FOOTREST 9,8 X 50
-
355460304000090 FOOT REST L/S SILVERFOOT REST L/S SILVER
-
355460314000090 FOOT REST R/S SILVERFOOT REST R/S SILVER
-
3645103023250 BUSHING FOR SIDE STANDBUSHING FOR SIDE STAND
