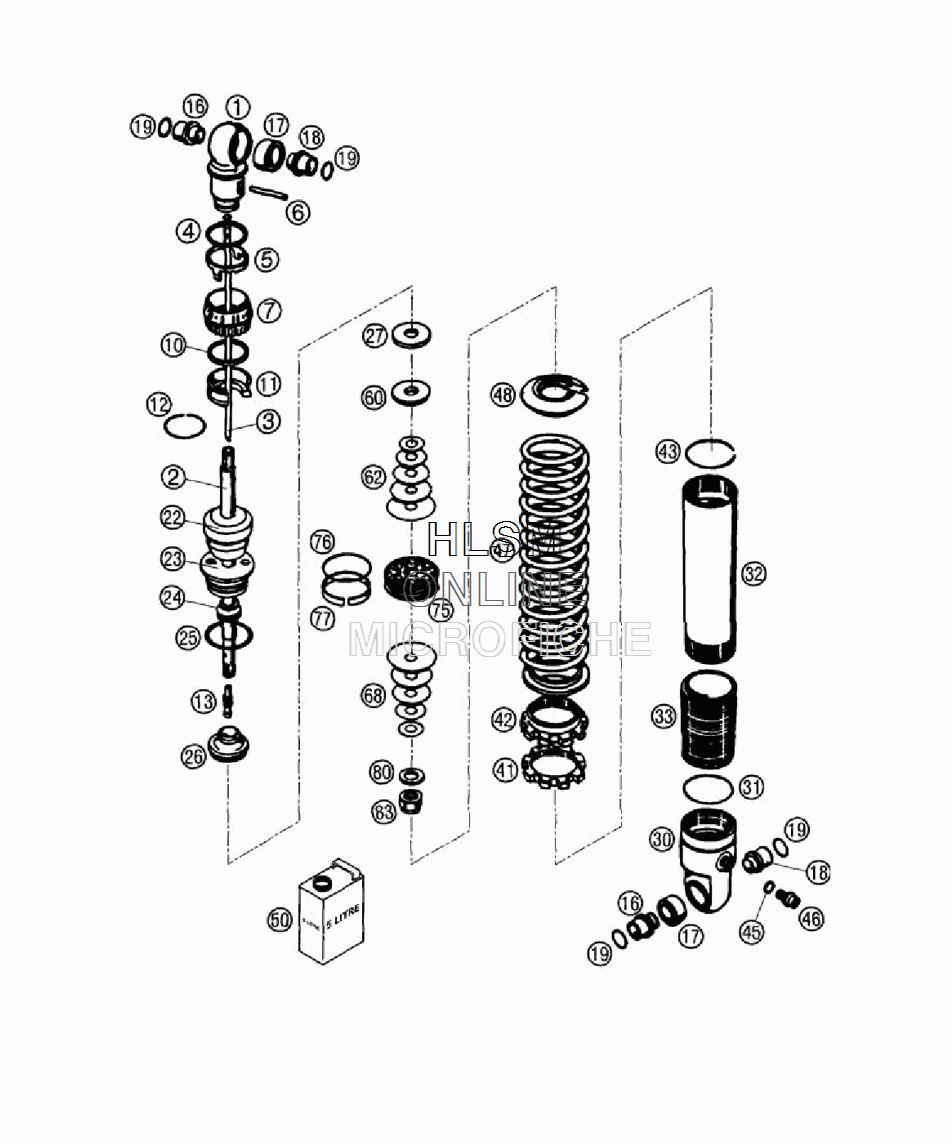

SHOCK ABSORBER - DISASSEMBLED для Ktm 50 SX Pro Sr - 2002 года выпуска
-
№АртикулНазвание
-
146811525 SHOCK ABS. BOTTOM L=46SHOCK ABS. BOTTOM L=46
-
236120576 PISTON ROD D=14;L=96PISTON ROD D=14;L=96
-
346811391S NEEDLE CPL. D=4; L=112NEEDLE CPL. D=4; L=112
-
446811222 O-RING 36X0,5O-RING 36X0,5
-
546811263 WASHERWASHER
-
646811261 PIN 4X35PIN 4X35
-
746811262 ADJ. KNOB D=41ADJ. KNOB D=41
-
1046811221 O-RING 35X3O-RING 35X3
-
1146811367 INTERMEDIATO RING H=4INTERMEDIATO RING H=4
-
1246811268 CIRCLIP 22X1,2CIRCLIP 22X1,2
-
1346811259 NEEDLE SEAT 5X17,25NEEDLE SEAT 5X17,25
-
1646811077 ADAPTOR BUSH KGW 10X22ADAPTOR BUSH KGW 10X22
-
1746811027 BEARING KGW 1525BEARING KGW 1525
-
1846811077 ADAPTOR BUSH KGW 10X22ADAPTOR BUSH KGW 10X22
-
1946811050 SEAL KGWSEAL KGW
-
2236120427 BUMP RUBBER WP65 L=20BUMP RUBBER WP65 L=20
-
2336120547 SCREW CAP M37,65SCREW CAP M37,65
-
2446811044 DUST SEAL 1424DUST SEAL 1424
-
2536120064 O-RING NBR 29,74X3,53O-RING NBR 29,74X3,53
-
2636120522S1 ADAPTOR CPL. D=36 H=20,5ADAPTOR CPL. D=36 H=20,5
-
2736120469 WASHER 28,5X14X2WASHER 28,5X14X2
-
3036120551 SHOCK ABSORBER CASE KGW H=38SHOCK ABSORBER CASE KGW H=38
-
310770380020 O-RING 38,00X2,00O-RING 38,00X2,00
-
3236120096 TUBE L=122TUBE L=122
-
3336120019 THREADED BUSH L=70 BLACKTHREADED BUSH L=70 BLACK
-
4136120015 COUNTERNUTCOUNTERNUT
-
4236120418 ADJUSTING NUTADJUSTING NUT
-
4340540015 CIRCLIP 38X1,5CIRCLIP 38X1,5
-
4546810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
4636120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
4793010168 SPRING (46,5) 45-130 D=7,75SPRING (46,5) 45-130 D=7,75
-
4793010169 SPRING (46,5) 50-130 D=8,0SPRING (46,5) 50-130 D=8,0
-
4836120386 SPRING RET. H=3; D=14,5SPRING RET. H=3; D=14,5
-
5046810208S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
-
6036120557 REBOUND BUSH H=5,6REBOUND BUSH H=5,6
-
6236120350 SHIM 10X21X0,30SHIM 10X21X0,30
-
6236120298 SHIM 10X16X0,2SHIM 10X16X0,2
-
6236120343 SHIM 10X23X0,25SHIM 10X23X0,25
-
6236120344 SHIM 10X25X0,25SHIM 10X25X0,25
-
6236120345 SHIM 10X27X0,25SHIM 10X27X0,25
-
6236120338 SHIM 10X29X0,20SHIM 10X29X0,20
-
6236120339 SHIM 10X31X0,20SHIM 10X31X0,20
-
6236120340 SHIM 10X33X0,20SHIM 10X33X0,20
-
6836120312 BACKPLATE 10X16X0,30BACKPLATE 10X16X0,30
-
6836120334 SHIM 10X21X0,20SHIM 10X21X0,20
-
6836120336 SHIM 10X25X0,2SHIM 10X25X0,2
-
6836120327 SHIM 10X23X0,15SHIM 10X23X0,15
-
6836120655 PRESSURE-RING 27X23,25X0,30PRESSURE-RING 27X23,25X0,30
-
6836120328 SHIM 10X25X0,15SHIM 10X25X0,15
-
7536120624 PISTON 6+6X5,5/3,5PISTON 6+6X5,5/3,5
-
7646810035 O-RING VITON 37,82X1,78O-RING VITON 37,82X1,78
-
7736120040 PISTON RING 8X1X108,3PISTON RING 8X1X108,3
-
8036120604 SHIM D10XD22X2,5SHIM D10XD22X2,5
-
8336120605S PISTON ROD NUT CPL. H=15,2PISTON ROD NUT CPL. H=15,2
