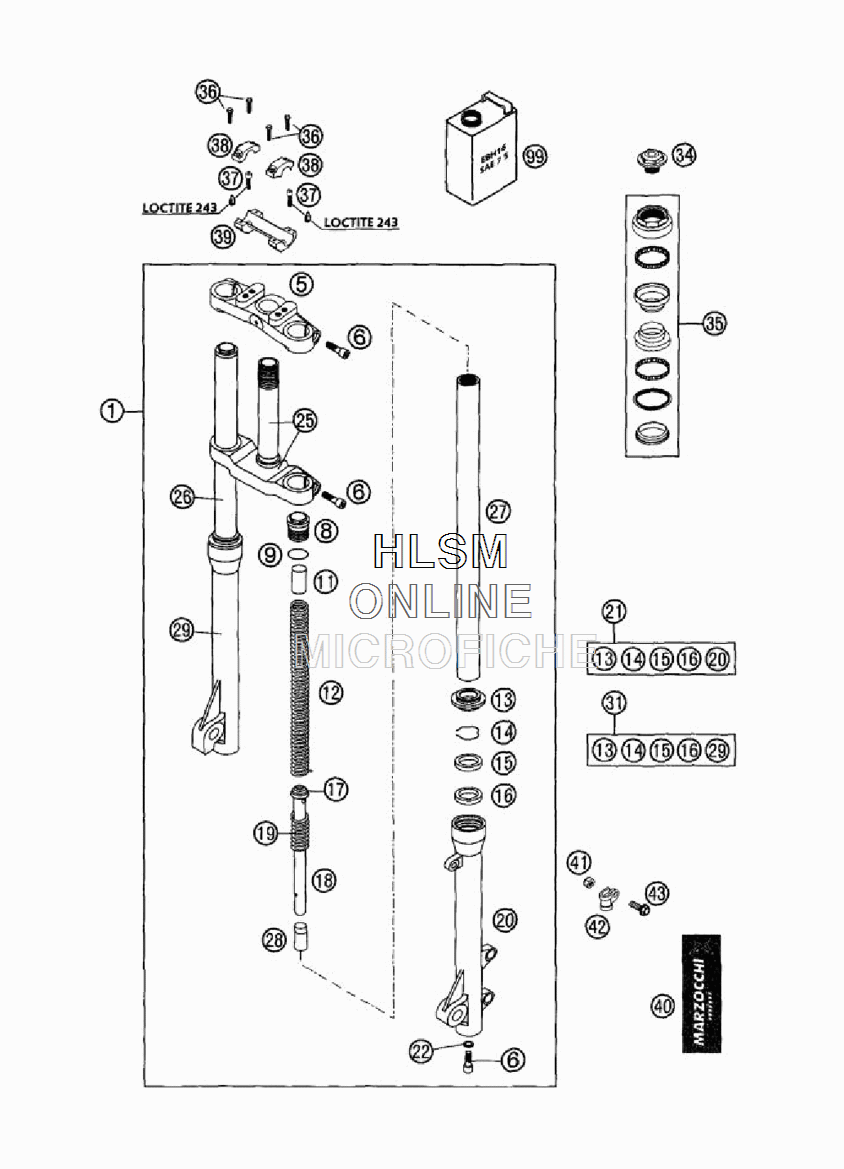

FRONT FORK для Ktm 50 SX Pro Sr - 2002 года выпуска
-
№АртикулНазвание
-
145101000544 FORK CPL.FORK CPL.
-
57501476A TOP FORK PLATETOP FORK PLATE
-
60912080303 AH SCREW DIN0912-M 8X30AH SCREW DIN0912-M 8X30
-
87504212AC SCREW CAPSCREW CAP
-
97528010 O-RINGO-RING
-
117518076 PRE LOAD BUSH 25X2,5X100PRE LOAD BUSH 25X2,5X100
-
1275141169 SPRING 2N/MMSPRING 2N/MM
-
1275141214 SPRING 2,5N/MMSPRING 2,5N/MM
-
137533297 DUST SEALDUST SEAL
-
147523264 STOP RINGSTOP RING
-
157528230 OIL SEAL 32/42/6,5-9,5OIL SEAL 32/42/6,5-9,5
-
167522166AA WASHER D42X32,5X1,5WASHER D42X32,5X1,5
-
177524157 PISTON RING D32 (ONLY FOR REBOUND DAMPING)PISTON RING D32 (ONLY FOR REBOUND DAMPING)
-
1878031047 PISTON ROD REBOUND (REBOUND DAMPING - LEFT SIDE)PISTON ROD REBOUND (REBOUND DAMPING - LEFT SIDE)
-
1878031045 PISTON ROD COMPRESSION (COMPRESSION DAMP- RIGHT SIDE)PISTON ROD COMPRESSION (COMPRESSION DAMP- RIGHT SIDE)
-
1975141015 REBOUND SPRINGREBOUND SPRING
-
2075031570A SLIDER L/SSLIDER L/S
-
2175031570A/R SLIDER CPL. L/SSLIDER CPL. L/S
-
227522225 WASHER 14X8X1,5WASHER 14X8X1,5
-
2577051095 BOT. FORK PLATE CPL.BOT. FORK PLATE CPL.
-
267708249/R FORK TUBE R/SFORK TUBE R/S
-
277708250/R FORK TUBE L/SFORK TUBE L/S
-
287512068 FOOT BUFFERFOOT BUFFER
-
2975031571A SLIDER R/SSLIDER R/S
-
3175031571A/R SLIDER CPL. R/SSLIDER CPL. R/S
-
3450301036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
3545101081000 STEER.STEM B. CPL.STEER.STEM B. CPL.
-
360015080303 HH COLLAR SCREW M8X30 WS=10HH COLLAR SCREW M8X30 WS=10
-
370912100250 AH SCREW DIN0912-M10X25 W.LOCKAH SCREW DIN0912-M10X25 W.LOCK
-
3850301038000 HANDLEBAR CLAMP D=22MMHANDLEBAR CLAMP D=22MM
-
3945101039000 HANDLEBAR SUPPORT D=22MMHANDLEBAR SUPPORT D=22MM
-
407547325 STICKER LEFT SIDE MARZOCCHISTICKER LEFT SIDE MARZOCCHI
-
407547331 STICKER RIGHT SIDE MARZOCCHISTICKER RIGHT SIDE MARZOCCHI
-
410985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
4245001070000 BRAKE CABLE GUIDEBRAKE CABLE GUIDE
-
430015050163 HH COLLAR SCREW M 5X16 W5=8HH COLLAR SCREW M 5X16 W5=8
-
997550013 FORKOIL EBH16 SAE 7.5FORKOIL EBH16 SAE 7.5
