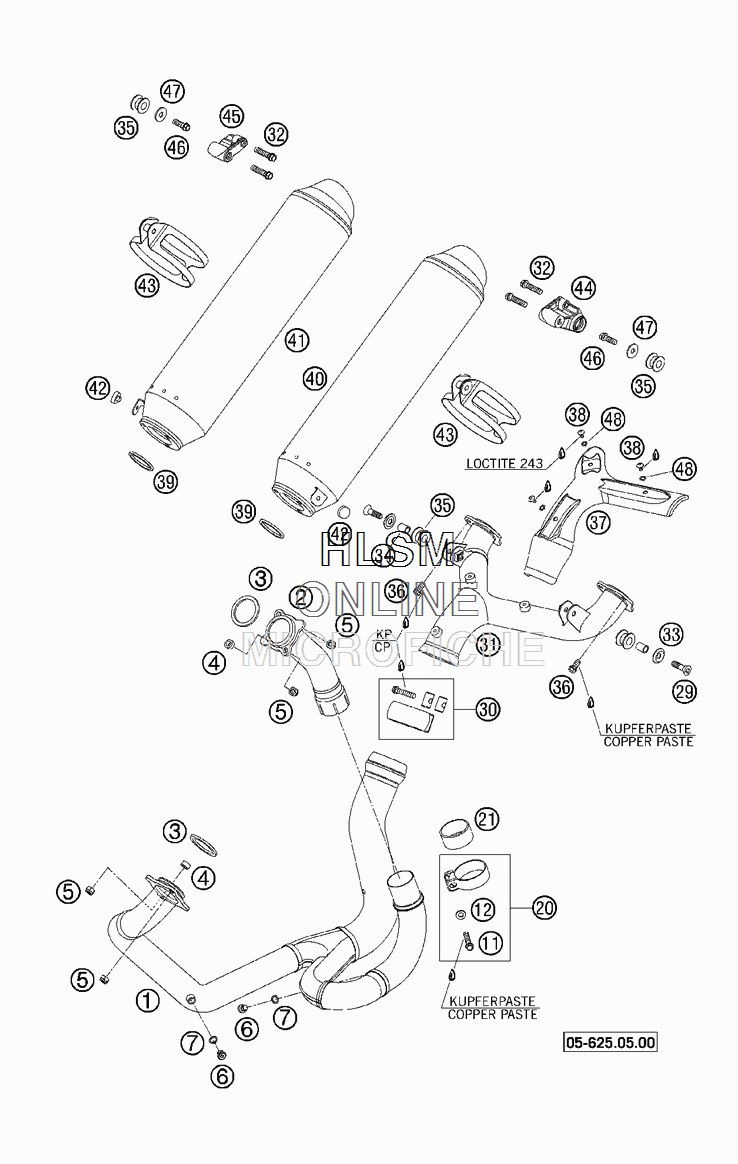

EXHAUST PIPES W/ SILENCER для Ktm 950 SUPERMOTO - 2005 года выпуска
-
№АртикулНазвание
-
162505007100 EXHAUST PIPE FRONTEXHAUST PIPE FRONT
-
262505008000 EXHAUST PIPE REAREXHAUST PIPE REAR
-
360005005000 GASKETGASKET
-
461005009000 SPACER BUSH. 8,5X15X7,5SPACER BUSH. 8,5X15X7,5
-
551010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
60908100000 PLUG DIN0908-M10X1 A2PLUG DIN0908-M10X1 A2
-
70603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
110015080403 HH COLLAR SCREW M 8X40 WS=10HH COLLAR SCREW M 8X40 WS=10
-
120125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
2061005051100 CLAMP CPL. D=53,2MMCLAMP CPL. D=53,2MM
-
2158405005001 GRAPHITRING 45X50X25GRAPHITRING 45X50X25
-
290991080353 FLAT HEAD SCREW DIN7991-M 8X35FLAT HEAD SCREW DIN7991-M 8X35
-
3061005052000 EXHAUST CLAMP CPL.EXHAUST CLAMP CPL.
-
3162505048100 DISTRIBUTOR TUBEDISTRIBUTOR TUBE
-
320015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
3358303061000 SPECIAL WASHER ALU 8 X 24 MMSPECIAL WASHER ALU 8 X 24 MM
-
3462505069000 SPACER BUSH. 8,5X12X18MMSPACER BUSH. 8,5X12X18MM
-
3554305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
360015080163 HH COLLAR SCREW M 8X16 WS=10HH COLLAR SCREW M 8X16 WS=10
-
3762505047000 THERMAL SHIELDTHERMAL SHIELD
-
3858605083010 SCREW TORX M5X10SCREW TORX M5X10
-
3960005005002 EXHAUST GASKETEXHAUST GASKET
-
4062505083100 SILENCER L/SSILENCER L/S
-
4162505083000 SILENCER R/SSILENCER R/S
-
4254308042000 RUBBER BUFFERRUBBER BUFFER
-
4360005095000 CLAMP FOR SILENCER CPL.CLAMP FOR SILENCER CPL.
-
4460005085000 SILENCER/HANDLE HOLDER L/SSILENCER/HANDLE HOLDER L/S
-
4560005086000 SILENCER/HANDLE HOLDER R/SSILENCER/HANDLE HOLDER R/S
-
460015080253 HH COLLAR SCREW M 8X25 WS=10HH COLLAR SCREW M 8X25 WS=10
-
470021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
480797050000 TOOTH LOCK WASHER DIN6797-JTOOTH LOCK WASHER DIN6797-J
Все узлы модели:
- AIR FILTER BOX
- BALANCER SHAFT
- BATTERY
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR KEIHIN CVRD 43
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD FRONT
- CYLINDER HEAD REAR
- DECAL
- ELECTRIC STARTER
- ELECTRONIC POWER CONTROL
- ENGINE CASE
- • EXHAUST PIPES W/ SILENCER
- FORK LEGS
- FRAME W/ SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM DENSO
- INSTRUMENTS - LOCK SYSTEM
- LIGHTING SYSTEM
- LUBRICATING SYSTEM
- MASK W/ FENDERS
- MONOSHOCK
- MONOSHOCK - DISASSEMBLED
- REAR BRAKE CONTROL
- REAR WHEEL
- SECONDARY AIR SYSTEM
- SHIFTING MECHANISM
- SIDE STAND
- SPECIAL TOOLS - ENGINE
- SPECIAL TOOLS - FRAME
- SWINGARM
- TANK - SEAT - COVER
- TIMING VALVE
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
- WATER PUMP
- WIRING HARNESS
