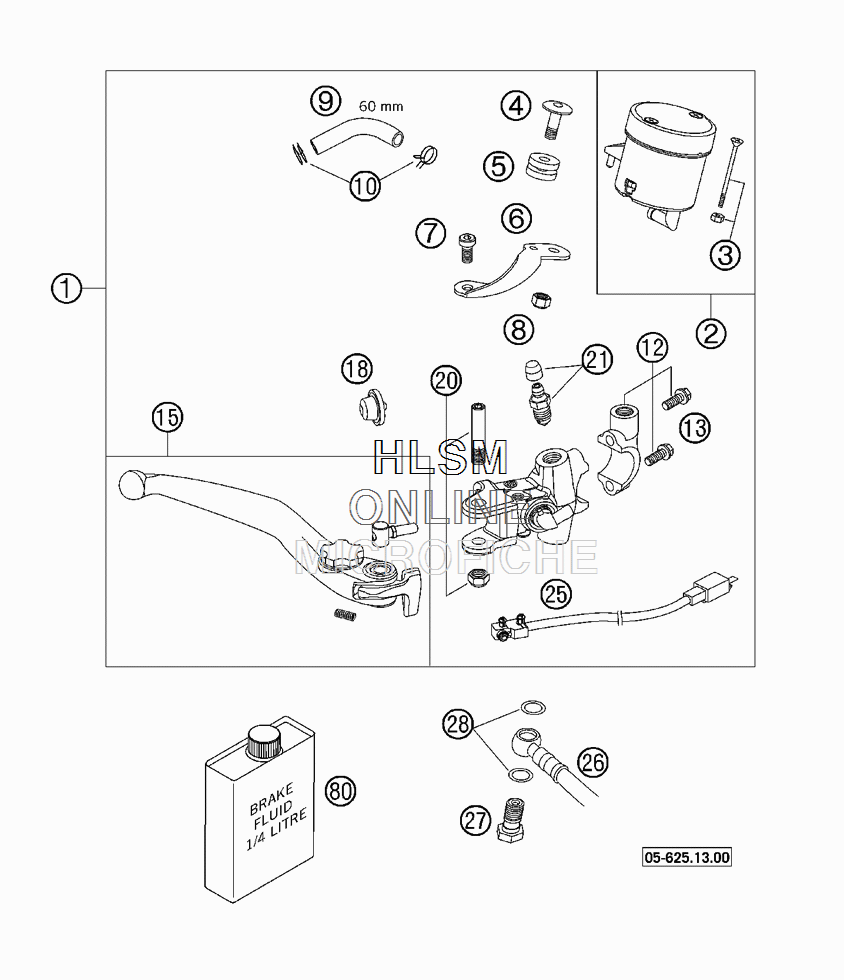

HAND BRAKE CYLINDER для Ktm 950 SUPERMOTO - 2005 года выпуска
-
№АртикулНазвание
-
162513001000 HAND BRAKE CYLINDERHAND BRAKE CYLINDER
-
261013009002 BRAKE FLUID RESERVOIR CPL.BRAKE FLUID RESERVOIR CPL.
-
361013009003 SCREW + NUT FOR RESERVOIRSCREW + NUT FOR RESERVOIR
-
461013013050 SCREW RET.PANEL-RESERVOIRSCREW RET.PANEL-RESERVOIR
-
561013013000 RUBBER BUSHRUBBER BUSH
-
661013009001 RET.PANEL FLUID RES. FRONTRET.PANEL FLUID RES. FRONT
-
761013021000 SCREW RET.PANEL-BRAKE CYLINDERSCREW RET.PANEL-BRAKE CYLINDER
-
861013009004 NUT FOR RESERVOIRNUT FOR RESERVOIR
-
958007016101 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
1058007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
1261013005000 CLAMP CPL.CLAMP CPL.
-
130015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1562513002044 HAND BRAKE LEVER CPL.HAND BRAKE LEVER CPL.
-
1861013008000 RUBBER CUPRUBBER CUP
-
2061013006000 LEVER SCREW CPL.LEVER SCREW CPL.
-
2160013020000 BLEEDER SCREW WITH CAPBLEEDER SCREW WITH CAP
-
2561011050000 BRAKE LIGHT SWITCH FRONTBRAKE LIGHT SWITCH FRONT
-
2662513012000 BRAKE PIPE FRONT CPL.BRAKE PIPE FRONT CPL.
-
2750213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
2842013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
