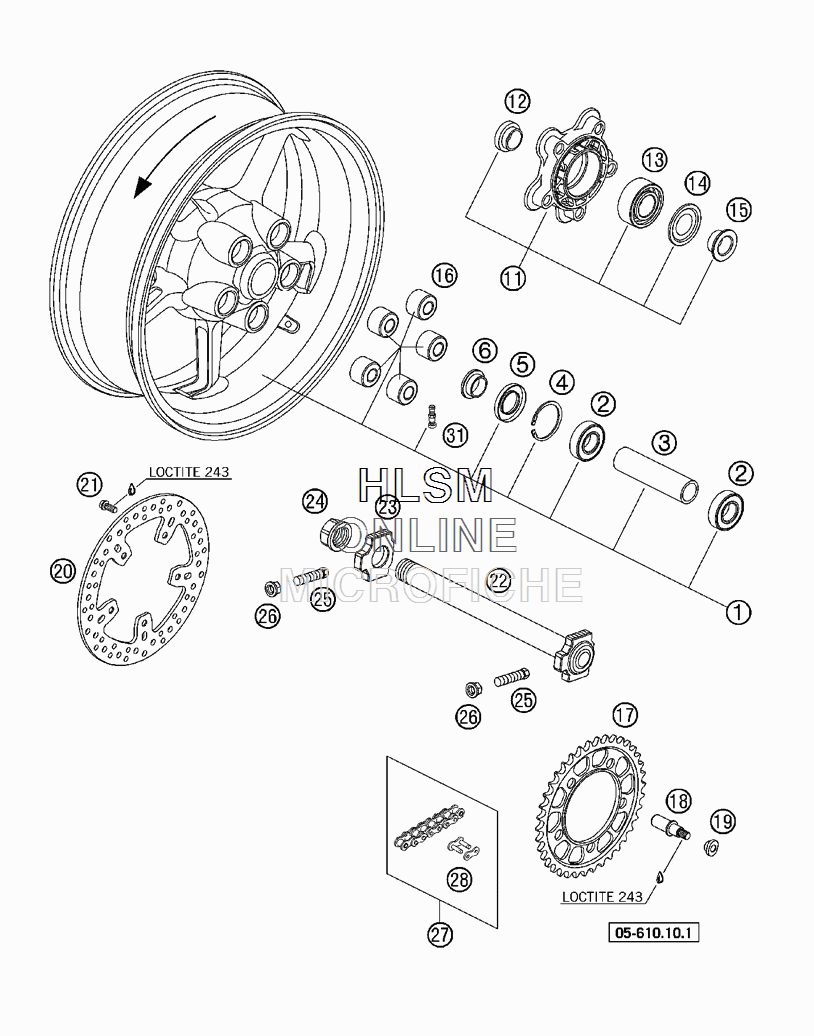

REAR WHEEL для Ktm 950 SUPERMOTO - 2005 года выпуска
-
№АртикулНазвание
-
161010001044 REAR WHEEL CPL.REAR WHEEL CPL.
-
20625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
361010011000 BEARING SPACER TUBE REARBEARING SPACER TUBE REAR
-
40472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
50760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
660010013000 SPACER BUSH. REAR WHEEL R/SSPACER BUSH. REAR WHEEL R/S
-
1161010050044 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
1260010014000 SPACER BUSH. SPR. SUPP. IN.SPACER BUSH. SPR. SUPP. IN.
-
130625032067 BALL BEARING 3206 2RS1BALL BEARING 3206 2RS1
-
1460010016000 NILOS RING 7206 AVHNILOS RING 7206 AVH
-
1560010012000 SPACER BUSH. SPROCKET SUPP.SPACER BUSH. SPROCKET SUPP.
-
1661010059000 DAMPING RUBBERDAMPING RUBBER
-
1761010051138 REAR SPROCKET 38-T STEELREAR SPROCKET 38-T STEEL
-
1761010051139 REAR SPROCKET 39-T STEELREAR SPROCKET 39-T STEEL
-
1761010051140 REAR SPROCKET 40-T STEELREAR SPROCKET 40-T STEEL
-
1761010051141 REAR SPROCKET 41-T STEELREAR SPROCKET 41-T STEEL
-
1761010051142 REAR SPROCKET 42-T STEELREAR SPROCKET 42-T STEEL
-
1861010056000 BOLT FOR SPROCKET SUPPORTBOLT FOR SPROCKET SUPPORT
-
1961010057000 NUT REAR SPROCKETNUT REAR SPROCKET
-
2061010060000 BRAKE DISK REAR D=240MMBRAKE DISK REAR D=240MM
-
2161009062018 SPECIAL SCREW M8X18SPECIAL SCREW M8X18
-
2260010081044 WHEEL SPINDLE REAR CPL.WHEEL SPINDLE REAR CPL.
-
2360010084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
2461010086000 COLLAR NUT M25X1,5 WS=32COLLAR NUT M25X1,5 WS=32
-
2550304040000 SPEC. SCREW M10X1,25X40 WS=10SPEC. SCREW M10X1,25X40 WS=10
-
2658414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
2760010165118 CHAIN 525 WITH MASTER LINKCHAIN 525 WITH MASTER LINK
-
2860010066000 MASTER LINK FOR CHAIN 525MASTER LINK FOR CHAIN 525
-
3158709076000 VALVE CPL. BREMBOVALVE CPL. BREMBO
