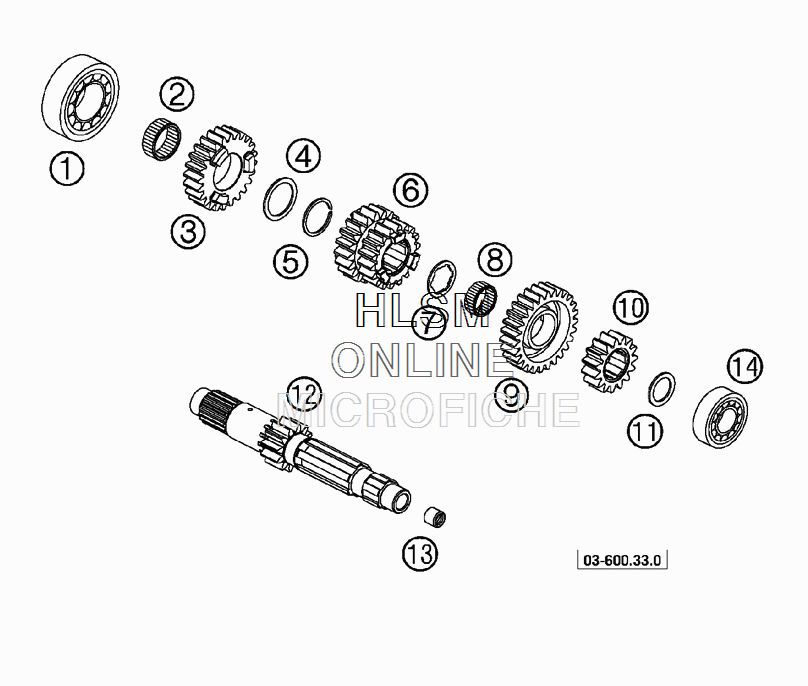

TRANSMISSION - MAIN SHAFT для Ktm 950 SUPERMOTO - 2005 года выпуска
-
№АртикулНазвание
-
10625062062 BALL BEARING 6206 C3 J1 NSKBALL BEARING 6206 C3 J1 NSK
-
20405263113 NEEDLE BEAR. K 26-31-13NEEDLE BEAR. K 26-31-13
-
360033005000 IDLER GEAR 5.G "600 5P24"IDLER GEAR 5.G "600 5P24"
-
460033042000 STOP DISK 28,3/35,75/1,5STOP DISK 28,3/35,75/1,5
-
50417280150 LOCK RING DIN5417-WS28LOCK RING DIN5417-WS28
-
660033003000 SLIDING G 3/4.G "600 34P18/20"SLIDING G 3/4.G "600 34P18/20"
-
760033041000 STOP DISK 22,2/30,2/1,5STOP DISK 22,2/30,2/1,5
-
80405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
960033006000 IDLER GEAR 6.G "600 6P27"IDLER GEAR 6.G "600 6P27"
-
1060033002000 SOLID GEAR 2.G. "600 2P15"SOLID GEAR 2.G. "600 2P15"
-
1160033040000 STOP DISK 20,2/28/1,5STOP DISK 20,2/28/1,5
-
1260033001000 MAIN SHAFT 12-TMAIN SHAFT 12-T
-
130618091312 NEEDLE BUSH HK0912 9/13/12NEEDLE BUSH HK0912 9/13/12
-
140625062040 BALL BEARING 6204 DU J1 C3BALL BEARING 6204 DU J1 C3
