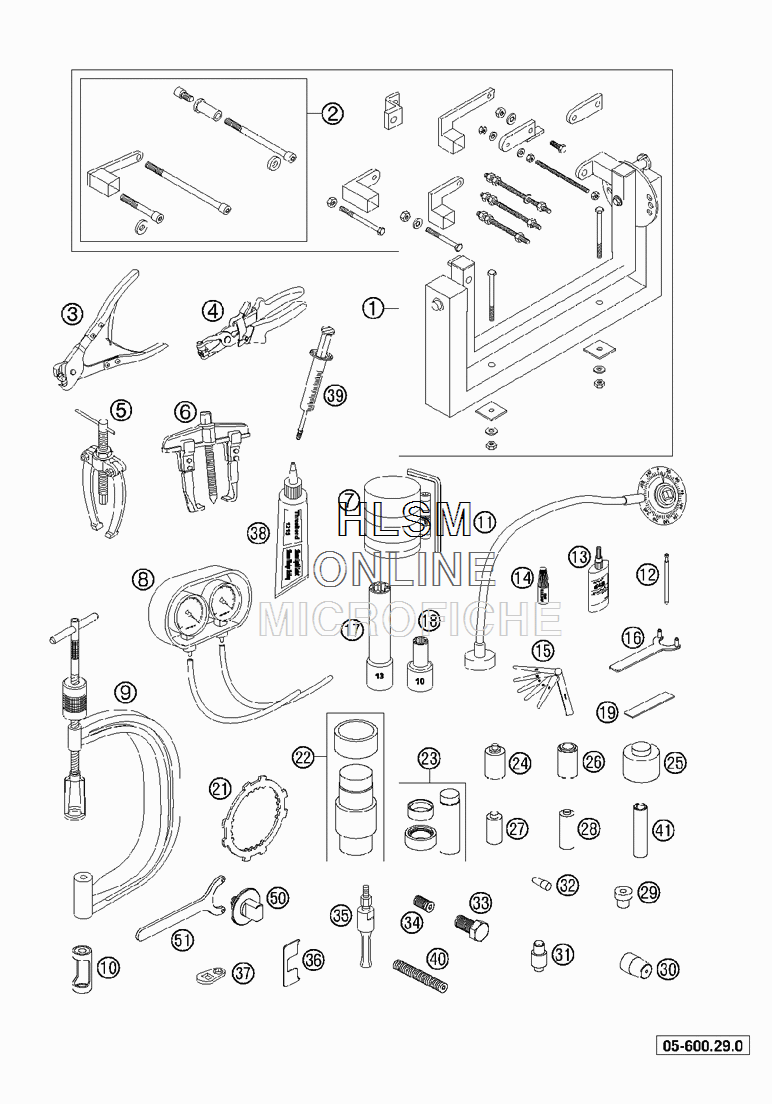

SPECIAL TOOLS - ENGINE для Ktm 950 SUPERMOTO - 2005 года выпуска
-
№АртикулНазвание
-
156012001044 UNIVERSAL MOUNTING RACK CPL.UNIVERSAL MOUNTING RACK CPL.
-
260029002000 ENGINE BRACKETENGINE BRACKET
-
360029057000 PLIERS F. VAR.ONE-EAR CLAMPPLIERS F. VAR.ONE-EAR CLAMP
-
460029057100 PLIERS F. CLAMPPLIERS F. CLAMP
-
515112017000 BUSHING EXTRACTORBUSHING EXTRACTOR
-
660029033000 EXTRACTOR PRIM. GEAREXTRACTOR PRIM. GEAR
-
760029015000 PISTON RING COMPRESSOR CPL.PISTON RING COMPRESSOR CPL.
-
860029011000 SYNCHRONIZER CPL. 2-CYLINDERSYNCHRONIZER CPL. 2-CYLINDER
-
959029019000 VALVE SPRING LEVERVALVE SPRING LEVER
-
1060029041000 INSERT FOR VALVE SPRING LEVERINSERT FOR VALVE SPRING LEVER
-
1160029010000 DEGREE DISK 360DEG - 1/2 INCHDEGREE DISK 360DEG - 1/2 INCH
-
1259029026006 LIMIT PLUG GAUGE F.VALVE GUIDELIMIT PLUG GAUGE F.VALVE GUIDE
-
1358429059000 LOCTITE 648 GREEN 24MLLOCTITE 648 GREEN 24ML
-
146899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
1559029041000 FEEL. GAUGE SET 10,12,15,20,25FEEL. GAUGE SET 10,12,15,20,25
-
1660029082000 HOLDER FOR WATER PUMP WHEELHOLDER FOR WATER PUMP WHEEL
-
1760029083000 SPECIAL SOCKET F. CYLINDER NUTSPECIAL SOCKET F. CYLINDER NUT
-
1860029075000 SPECIAL SOCKET F.CYL.-HEAD NUTSPECIAL SOCKET F.CYL.-HEAD NUT
-
1960029012000 PLASTIGAUGE - MEASURING STRIPPLASTIGAUGE - MEASURING STRIP
-
2160029003000 BRACKET FOR CLUTCHBRACKET FOR CLUTCH
-
2260029044050 PRESS TOOL FOR MAIN BEARINGPRESS TOOL FOR MAIN BEARING
-
2360029046028 PRESS TOOL F. SUPPORT BEARINGPRESS TOOL F. SUPPORT BEARING
-
2460029043010 SEAL.RING PRESS PUNCH PUSH RODSEAL.RING PRESS PUNCH PUSH ROD
-
2560029043020 SEAL.RING PRESS PUNCH COUNT.SHSEAL.RING PRESS PUNCH COUNT.SH
-
2660029043040 SEAL.RING PRESS PUNCH WAT.PUMPSEAL.RING PRESS PUNCH WAT.PUMP
-
2760029043050 SEAL.RING PRESS PUNCH BA.SHAFTSEAL.RING PRESS PUNCH BA.SHAFT
-
2860029043060 PRESS PUNCH WAPU-BEARINGPRESS PUNCH WAPU-BEARING
-
2960029031000 PRESSURE PUNCH F. CRANKSHAFTPRESSURE PUNCH F. CRANKSHAFT
-
3060029005000 MOUNT.SLEEVE F. SH. SEAL RINGMOUNT.SLEEVE F. SH. SEAL RING
-
3160029043030 PRESS PUNCH SEAL.RING/BEARINGPRESS PUNCH SEAL.RING/BEARING
-
3258529005000 MOUNT.SLEEVE F. SH.S.RING WAPUMOUNT.SLEEVE F. SH.S.RING WAPU
-
3360029009000 FLYWHEEL EXTRACTORFLYWHEEL EXTRACTOR
-
3460029009110 PUSH SCREW F. FLYWH. EXTRACTOR M16X1,5PUSH SCREW F. FLYWH. EXTRACTOR M16X1,5
-
3560029018000 INTERN.BEAR.PULLER 28 MMINTERN.BEAR.PULLER 28 MM
-
3660029016000 SETTING GAGE F. FLOAT LEVELSETTING GAGE F. FLOAT LEVEL
-
3760029081000 WRENCH FOR CYLINDER-HEAD SCREWWRENCH FOR CYLINDER-HEAD SCREW
-
38309098 SILICON GASKET THREE-BONDSILICON GASKET THREE-BOND
-
3950329050000 VENT INJEKTION HYDR. CLUTCHVENT INJEKTION HYDR. CLUTCH
-
400113080802 ENGINE BLOCKING SCREWENGINE BLOCKING SCREW
-
4160029073000 SPARK PLUG WRENCH 16MM 1/2 INCHSPARK PLUG WRENCH 16MM 1/2 INCH
-
5060029050000 BOTTOM PART PRETENSIONING TOOLBOTTOM PART PRETENSIONING TOOL
-
5160029051000 HOOK WRENCH PRETENS.TOOL CPL.HOOK WRENCH PRETENS.TOOL CPL.
