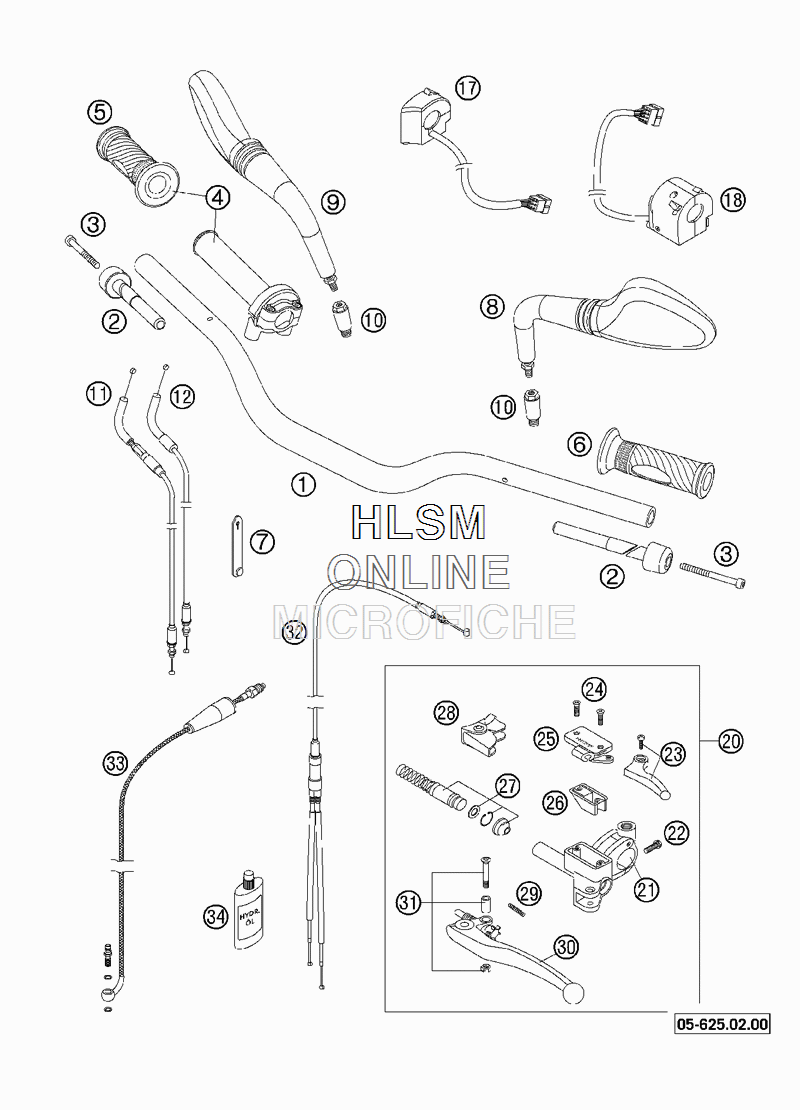

HANDLEBAR W/ CONTROLS для Ktm 950 SUPERMOTO - 2005 года выпуска
-
№АртикулНазвание
-
162502001000 HANDLEBAR ALUHANDLEBAR ALU
-
261002004000 VIBRATIONS ABSORBERVIBRATIONS ABSORBER
-
30912060653 AH SCREW DIN0912-M 6X65AH SCREW DIN0912-M 6X65
-
461002010000 THROTTLE GRIPTHROTTLE GRIP
-
561002013000 TWIST GRIP COVER PERFORATEDTWIST GRIP COVER PERFORATED
-
661002052000 FIXED GRIP PERFORATEDFIXED GRIP PERFORATED
-
760011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
858712040100 REAR MIRROR L/SREAR MIRROR L/S
-
958712041100 REAR MIRROR R/SREAR MIRROR R/S
-
1058412040050 SUPPORT FOR MIRROR LC4SUPPORT FOR MIRROR LC4
-
1162502091000 THROTTLE CABLE OPENTHROTTLE CABLE OPEN
-
1262502092000 THROTTLE CABLE CLOSETHROTTLE CABLE CLOSE
-
1758411074300 START-STOP SWITCH ADSTART-STOP SWITCH AD
-
1861011070000 LIGHT SWITCHLIGHT SWITCH
-
2060002030000 MASTER CYLINDER CPL.MASTER CYLINDER CPL.
-
2160002044000 CLAMP MIRROR WITH CLAMPCLAMP MIRROR WITH CLAMP
-
220015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
2360036050000 CHOKE LEVER CPLCHOKE LEVER CPL
-
240965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
2560002033000 COVER HYD.CLUTCHCOVER HYD.CLUTCH
-
2650302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
2750302032000 REP.SET PISTON CLUT.HYDR.REP.SET PISTON CLUT.HYDR.
-
2850302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
2959002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
3060002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
3150302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3260002095000 CHOKE CABLECHOKE CABLE
-
3360032063100 CLUTCH PIPECLUTCH PIPE
-
3450302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
