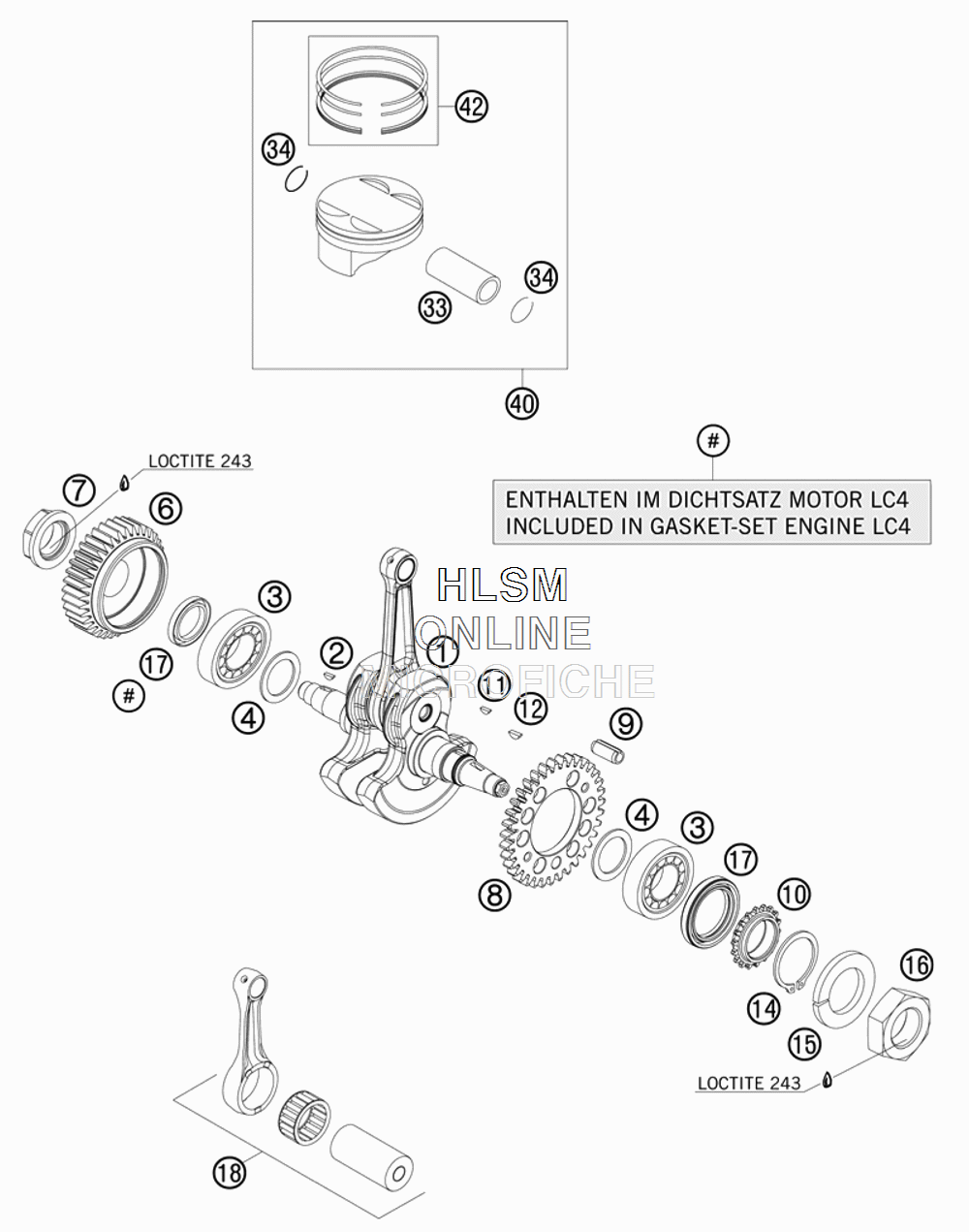

CRANKSHAFT PISTON для Ktm 690 DUKE (ORANGE) - 2010 года выпуска
-
№АртикулНазвание
-
175030018100 CRANKSHAFT CPLCRANKSHAFT CPL
-
20888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
375030018150 CYL.ROLLER BEARING NJ207 ECPC4CYL.ROLLER BEARING NJ207 ECPC4
-
456530081000 SHIM WASHER 36X48X0,10SHIM WASHER 36X48X0,10
-
456530081100 SHIM WASHER 36X48X0,15SHIM WASHER 36X48X0,15
-
456530081200 SHIM WASHER 36X48X0,20 STEELSHIM WASHER 36X48X0,20 STEEL
-
456530081300 SHIM WASHER 36X48X0,30SHIM WASHER 36X48X0,30
-
675032000002 PRIMARY GEAR 36 T 07PRIMARY GEAR 36 T 07
-
775030029100 NUT FOR PRIMARY GEARNUT FOR PRIMARY GEAR
-
875030055000 DRIVE WHEEL BALANCER SHAFT 07DRIVE WHEEL BALANCER SHAFT 07
-
90749080300 TENSION PIN ISO13337 8X30TENSION PIN ISO13337 8X30
-
1075036014000 TIMING PULLEY 07TIMING PULLEY 07
-
11888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
126946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
140471300151 CIRCLIP DIN0471-30X1,5 NIROCIRCLIP DIN0471-30X1,5 NIRO
-
1558132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
160936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
170760355070 SHAFT SEAL R.35X50X7B VITONSHAFT SEAL R.35X50X7B VITON
-
1875030015144 CONNECT. ROD REPAIR SET LC4 08CONNECT. ROD REPAIR SET LC4 08
-
3375030033000 PISTON PIN EB 22/72 D22X56PISTON PIN EB 22/72 D22X56
-
3477630074000 CIRCLIPCIRCLIP
-
4075030007300I PISTON CPL. IPISTON CPL. I
-
4075030007300II PISTON CPL. IIPISTON CPL. II
-
4275030031044 PISTONRING SET LC4 07PISTONRING SET LC4 07
