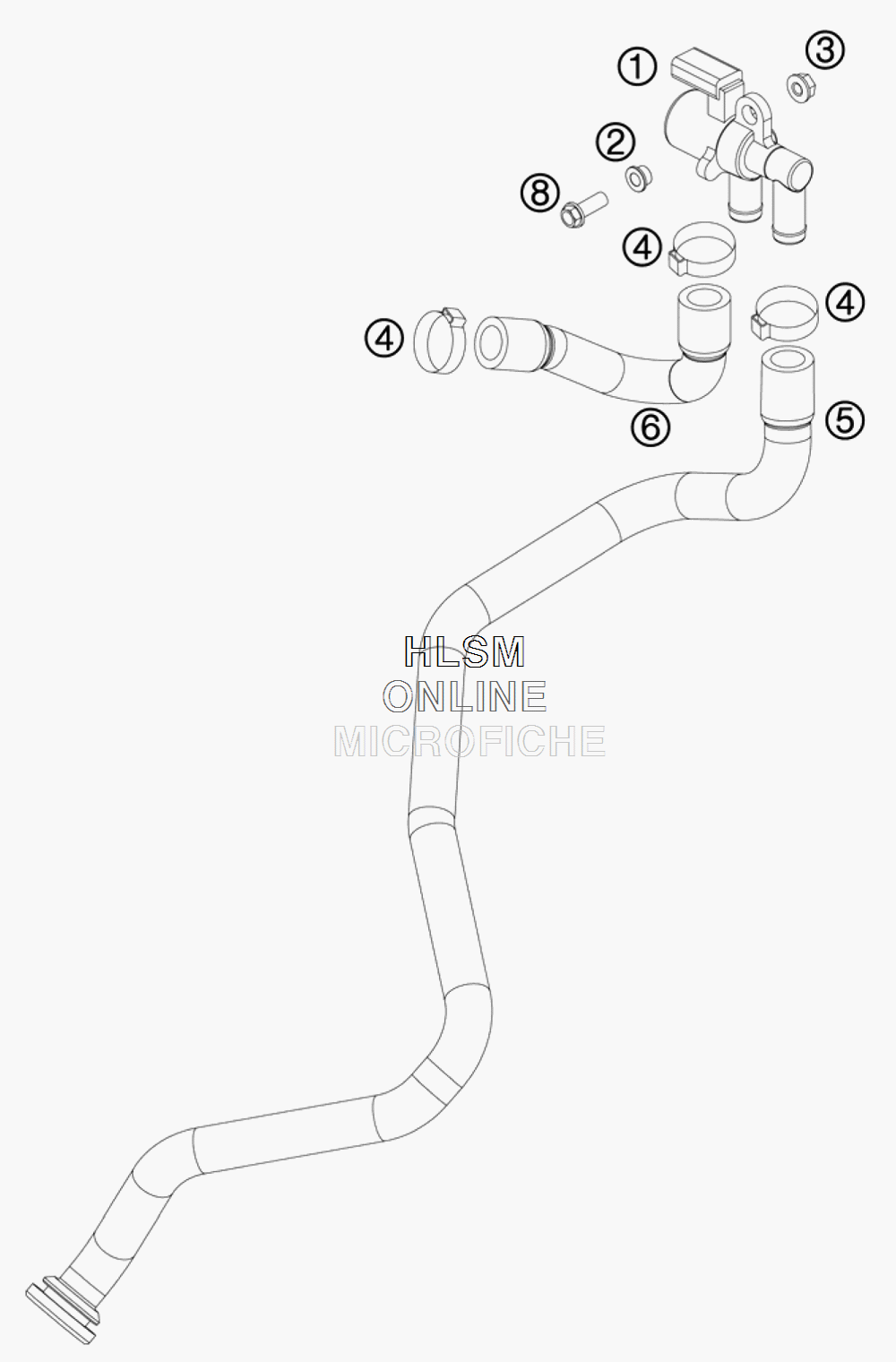

SECONDARY AIR SYSTEM SAS для Ktm 690 DUKE (ORANGE) - 2010 года выпуска
-
№АртикулНазвание
-
175005026000 SLS-VALVESLS-VALVE
-
275005033000 COLLAR BUSH SAS-VALVECOLLAR BUSH SAS-VALVE
-
356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
400049200121 CLAMP STD DN20CLAMP STD DN20
-
575005032000 HOSE SLS AIRFILTERBOXHOSE SLS AIRFILTERBOX
-
675005031000 HOSE SLS CYLINDERHOSE SLS CYLINDER
-
80025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
