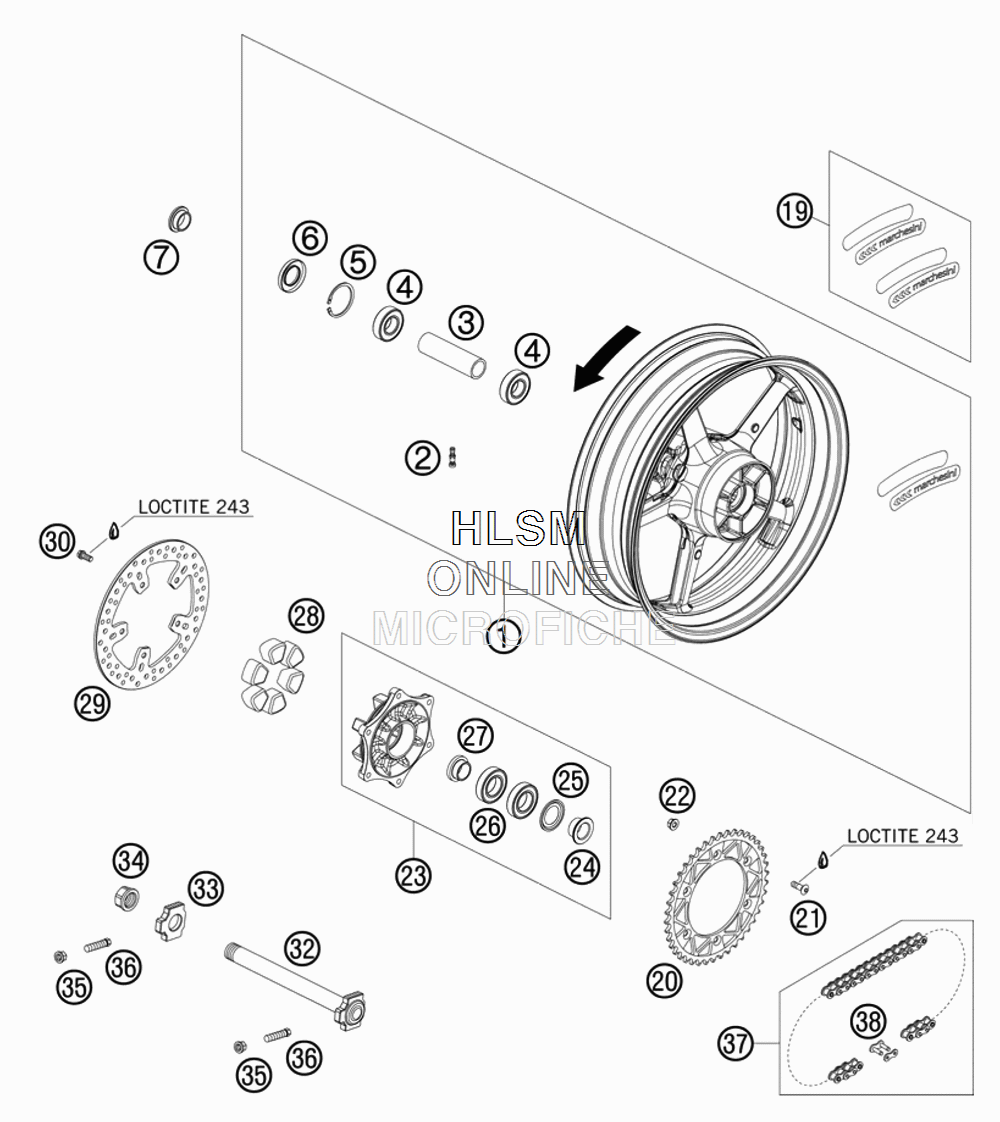

REAR WHEEL для Ktm 690 DUKE (ORANGE) - 2010 года выпуска
-
№АртикулНазвание
-
17561000104433 REAR WHEEL CPL. 5X17"REAR WHEEL CPL. 5X17"
-
258709076000 VALVE CPL. BREMBO DUKEVALVE CPL. BREMBO DUKE
-
375610011000 BEARING SPACER TUBE REARBEARING SPACER TUBE REAR
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
60760305271 SHAFT SEAL RING 30X52X7SHAFT SEAL RING 30X52X7
-
760010013000 SPACER BUSH. REAR WHEEL R/SSPACER BUSH. REAR WHEEL R/S
-
1900050000120 STICKER MARCH. 2L/S+2R/S WHITESTICKER MARCH. 2L/S+2R/S WHITE
-
2075010051040 SPROCKET STEALTH 40TSPROCKET STEALTH 40T
-
2075010051042 SPROCKET STEALTH 42TSPROCKET STEALTH 42T
-
210019080266S COUNTER-SUNK SCREW ISA45 M8X26COUNTER-SUNK SCREW ISA45 M8X26
-
22*06923080003 HEXAGON NUT DIN EN1661 M8 SW13HEXAGON NUT DIN EN1661 M8 SW13
-
23*7501005004491 SPROCKET SUPPORT CPL. SILVERSPROCKET SUPPORT CPL. SILVER
-
2460110012000 SPACER BUSH. SPROCKET SUPP.SPACER BUSH. SPROCKET SUPP.
-
2560110016000 NILOS RING 6006AVNILOS RING 6006AV
-
260625060060 BALL BEARING 6006 DDU2CG23S6NMBALL BEARING 6006 DDU2CG23S6NM
-
2760110014000 SPACER BUSH. SPR. SUPP. IN.SPACER BUSH. SPR. SUPP. IN.
-
2854610459000 RUBBER DAMPING BLOCK 91RUBBER DAMPING BLOCK 91
-
2961010060000 BRAKE DISK REAR D=240MMBRAKE DISK REAR D=240MM
-
3061009062018 SPECIAL SCREW M8X18SPECIAL SCREW M8X18
-
32*75010085144 WHEEL SPINDLE REAR CPL.WHEEL SPINDLE REAR CPL.
-
3360010084000 CHAIN TENSIONER R/S LC8CHAIN TENSIONER R/S LC8
-
3460010086000 COLLAR NUT WH. SPINDLE REARCOLLAR NUT WH. SPINDLE REAR
-
3558414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
3650304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
3776510065116 CHAIN X-RING 116 + RIVET LINKCHAIN X-RING 116 + RIVET LINK
-
3876510066000 RIVET LINK FOR 76510065116RIVET LINK FOR 76510065116
