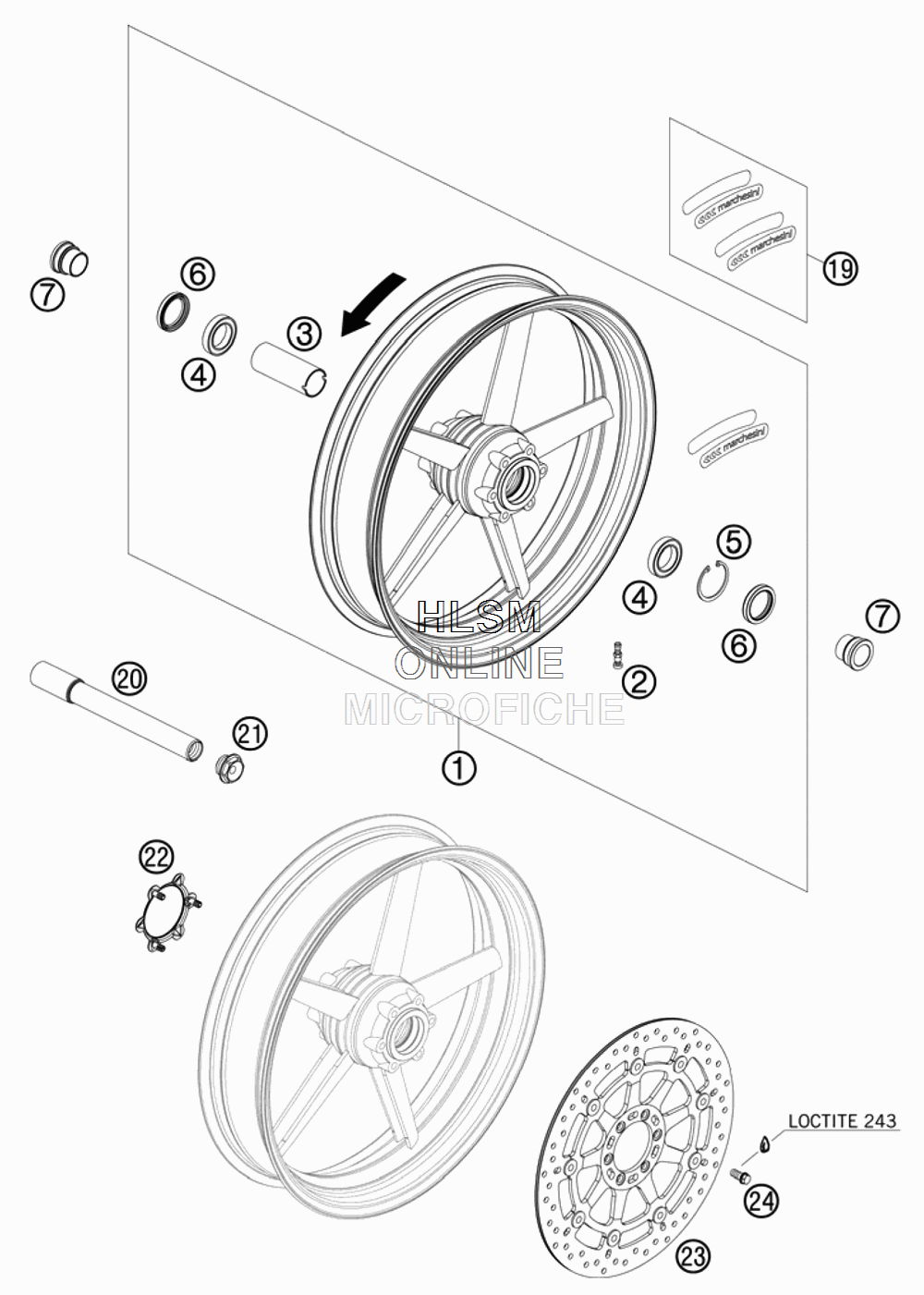

FRONT WHEEL для Ktm 690 DUKE (ORANGE) - 2010 года выпуска
-
№АртикулНазвание
-
17560900104433 FRONT WHEEL CPL. 3,5X17"FRONT WHEEL CPL. 3,5X17"
-
258709076000 VALVE CPL. BREMBO DUKEVALVE CPL. BREMBO DUKE
-
361009011000 BEARING SPACER TUBE FRONTBEARING SPACER TUBE FRONT
-
40625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
50472048175 LOCK RING DIN0472-48X1,75LOCK RING DIN0472-48X1,75
-
658709076000 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
754809012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
1900050000120 STICKER MARCH. 2L/S+2R/S WHITESTICKER MARCH. 2L/S+2R/S WHITE
-
2075009081000 WHEEL SPINDLE FRONT D=26MMWHEEL SPINDLE FRONT D=26MM
-
2154809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
2275009001010 PLASTIC COVER RINGPLASTIC COVER RING
-
2375609060000 BRAKE DISC D=320MMBRAKE DISC D=320MM
-
2461009062018 SPECIAL SCREW M8X18SPECIAL SCREW M8X18
