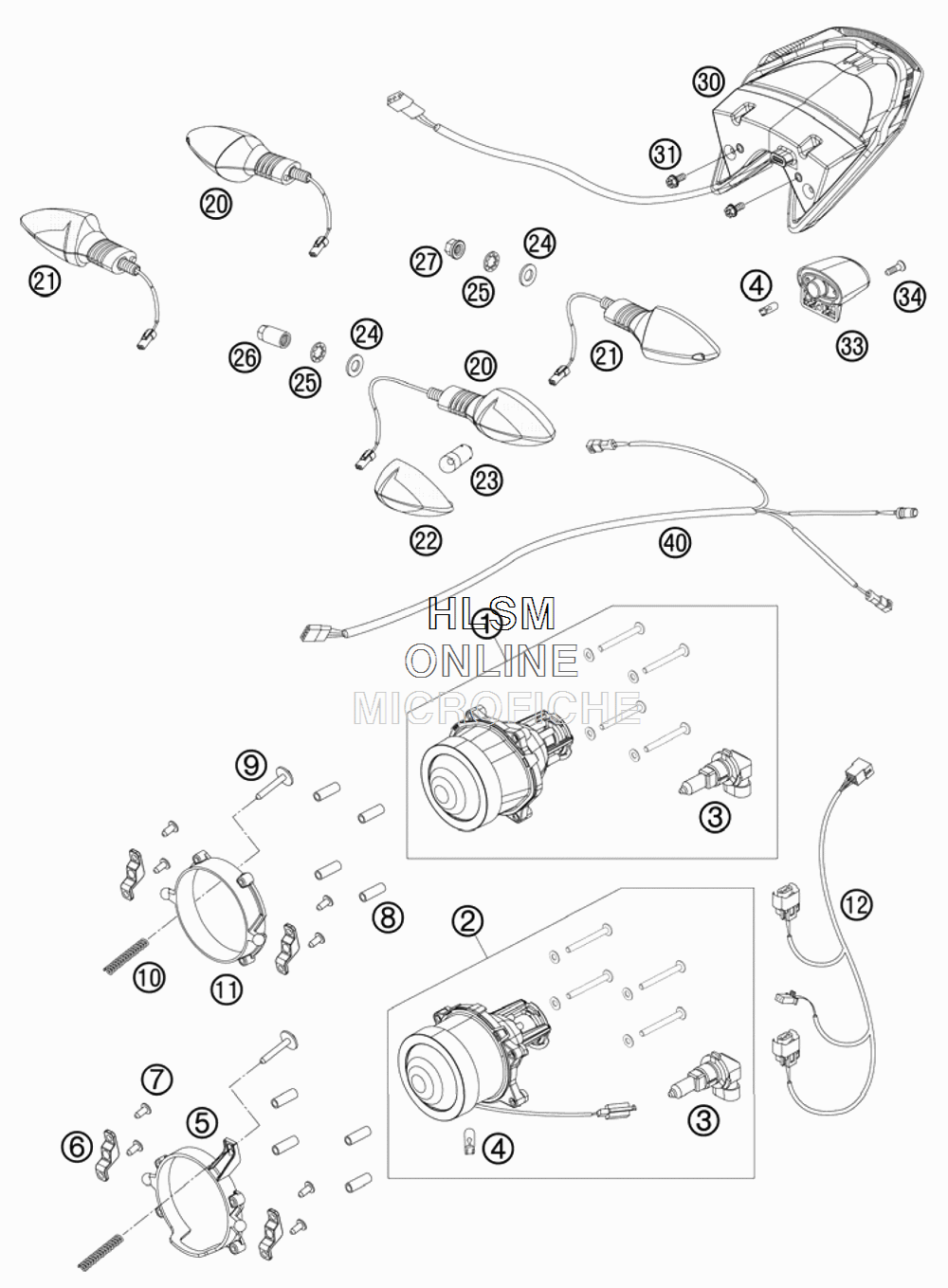

LIGHTING SYSTEM для Ktm 690 DUKE (ORANGE) - 2010 года выпуска

№

Артикул

Название
1

75614101000 HEADLIGHT LOW BEAM

HEADLIGHT LOW BEAM

29 650 ₽
2

75614002000 HEADLIGHT HIGH BEAM

HEADLIGHT HIGH BEAM

36 770 ₽
3

58714003000 BULB HB3 12V 60W

BULB HB3 12V 60W

9 350 ₽
4

49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.

BULB 12V 5W (W2,1X9,5D) PHIL.

1 170 ₽
5

75614008000 BRACKET F. HIGH BEAM

BRACKET F. HIGH BEAM

2 160 ₽
6

75614018000 HEADLIGHT BRACKET

HEADLIGHT BRACKET

1 780 ₽
7

0081050121 SCREW FOR PLASTIC K50X12 T20

SCREW FOR PLASTIC K50X12 T20

290 ₽
8

75614009000 DISTANCE BUSHING 5,5X8X23,4 MM

DISTANCE BUSHING 5,5X8X23,4 MM

1 030 ₽
9

58714001010 SCREW FOR PLASTIC D=5X35

SCREW FOR PLASTIC D=5X35

320 ₽
10

58714010050 SPRING F. HEAD LIGHT ADJ.

SPRING F. HEAD LIGHT ADJ.

850 ₽
11

75614007000 BRACKET F. LOW BEAM

BRACKET F. LOW BEAM

2 130 ₽
12

75611079000 WIRING HARNESS HEADLIGHT

WIRING HARNESS HEADLIGHT

9 640 ₽
20

60114025000 FLASHER CPL.FRONT L/S REAR R/S

FLASHER CPL.FRONT L/S REAR R/S

6 920 ₽
21

60114026000 FLASHER CPL.FRONT R/S REAR L/S

FLASHER CPL.FRONT R/S REAR L/S

6 920 ₽
22

60114028000 FLASHER LENS L/S R/S TRANSP.

FLASHER LENS L/S R/S TRANSP.

1 260 ₽
23

60114027000 BULB 12V ORANGE (RY10W)

BULB 12V ORANGE (RY10W)

1 780 ₽
24

0433100003 WASHER 18X10,5X1,6

WASHER 18X10,5X1,6

150 ₽
25

0797100003 LOCK WASHER DIN6797-J10,5 ZI

LOCK WASHER DIN6797-J10,5 ZI

210 ₽
26

75014030000 FLASHER NUT M10X1,25 WS12

FLASHER NUT M10X1,25 WS12

1 340 ₽
27

58414030000 HH COLLAR NUT M10X1,25 WS=13

HH COLLAR NUT M10X1,25 WS=13

350 ₽
30

75014040000 REAR LIGHT LED

REAR LIGHT LED

33 820 ₽
31

0025050126 HH COLLAR SCREW M5X12 TX30

HH COLLAR SCREW M5X12 TX30

500 ₽
33

75014047000 LICENSE PLATE ILLUMINATION

LICENSE PLATE ILLUMINATION

2 370 ₽
34

0081250181 SCREW FOR PLASTIC 50X18 T20

SCREW FOR PLASTIC 50X18 T20

150 ₽
40

75011076000 WIRING HARNESS REAR

WIRING HARNESS REAR

6 810 ₽
