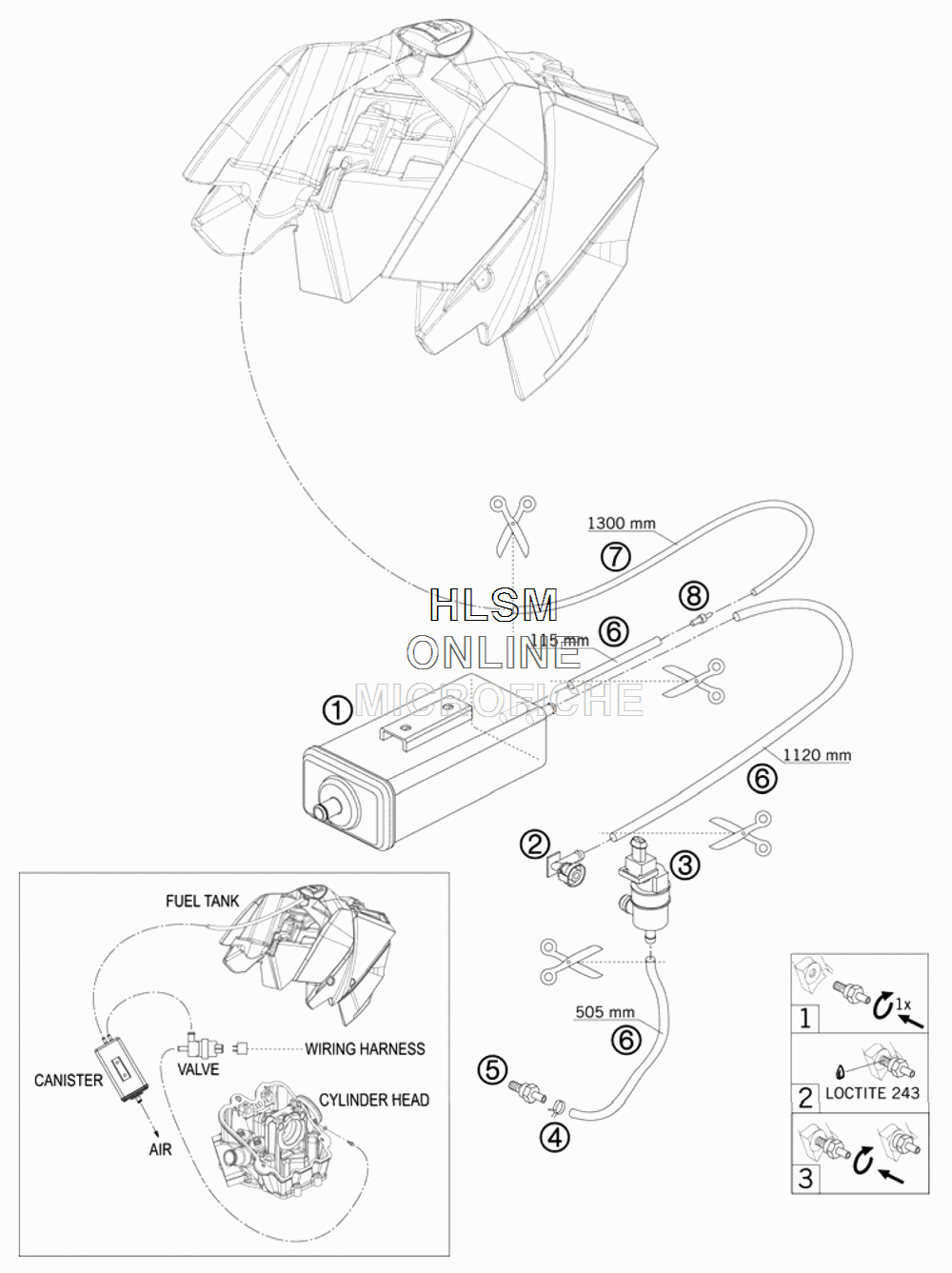

EVAPORATIVE CANISTER для Ktm 690 DUKE (ORANGE) - 2010 года выпуска
-
№АртикулНазвание
-
175015001100 EVAPORATIVE CANISTEREVAPORATIVE CANISTER
-
261115016000 FITTING PIECE NQV2 NW7 90°FITTING PIECE NQV2 NW7 90°
-
361115015000 VALVE FOR CARBON CANISTERVALVE FOR CARBON CANISTER
-
458007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
560036023100 VACUUM CONECTION M6/0,5MMVACUUM CONECTION M6/0,5MM
-
678015019000 HOSE EPA D=6/10 L=2000MMHOSE EPA D=6/10 L=2000MM
-
778015021000 HOSE EPA D=4/8 L=2000MMHOSE EPA D=4/8 L=2000MM
-
875015023000 REDUCTION CONNECTION GRS6-4REDUCTION CONNECTION GRS6-4
