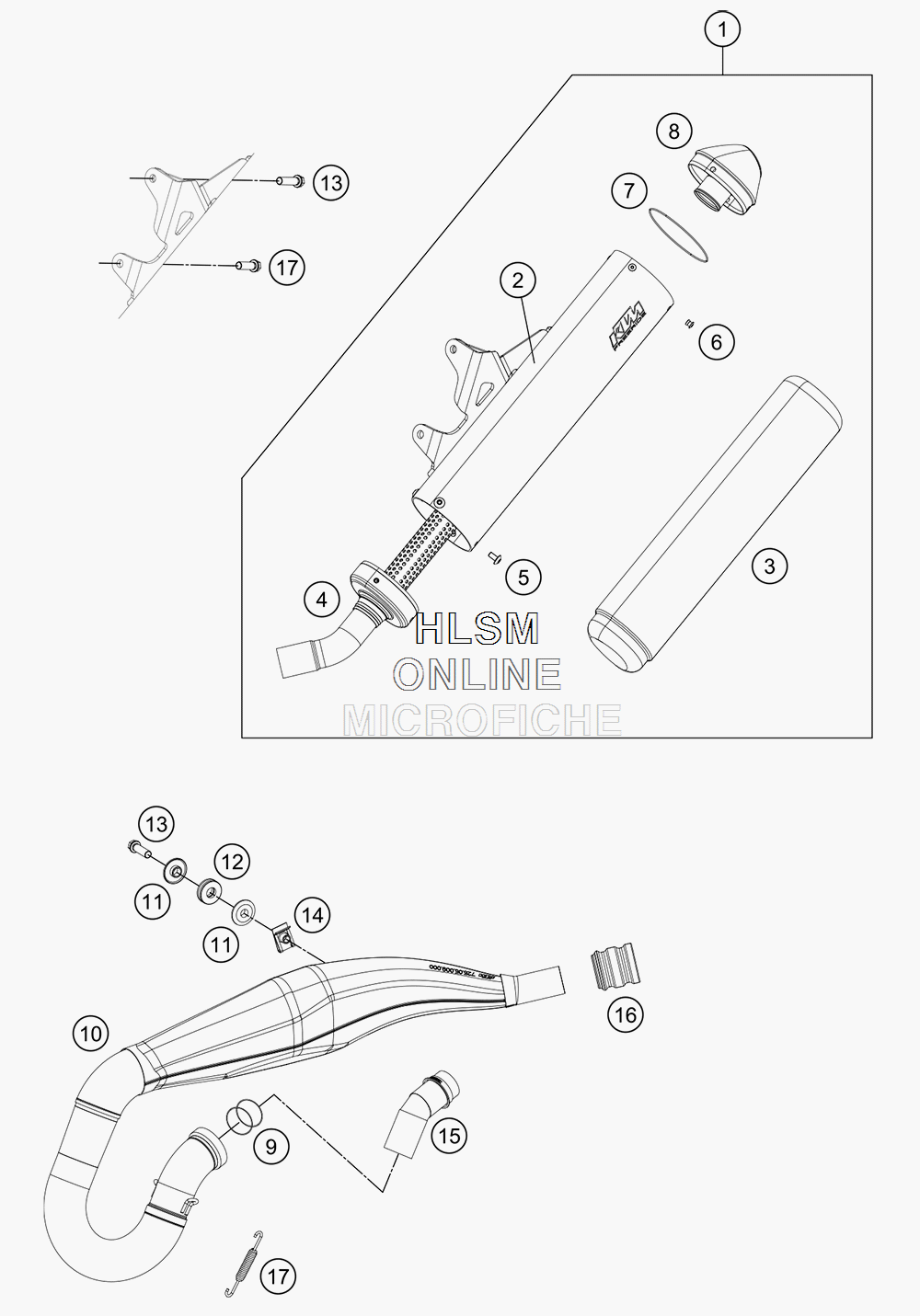

EXHAUST SYSTEM для Ktm 250R FREERIDE - 2017 года выпуска
-
№АртикулНазвание
-
172505083000 SILENCERSILENCER
-
272505083080 SILENCER HOUSINGSILENCER HOUSING
-
354805078265 ROCK WOOL 265GROCK WOOL 265G
-
472505083050 CONNECTING CAP CPL.CONNECTING CAP CPL.
-
578105081010 SCREW TORX M5X10SCREW TORX M5X10
-
60011480800 DUMMY RIVET 4,8X 8 NIRODUMMY RIVET 4,8X 8 NIRO
-
70770740015 O-RING 74,00X1,50 FKM 75SHO-RING 74,00X1,50 FKM 75SH
-
854805083260 ENDCAP CPL.ENDCAP CPL.
-
90770380030 O-RING 38,00X3,00 VITONO-RING 38,00X3,00 VITON
-
1072505009000 EXHAUST MANIFOLDEXHAUST MANIFOLD
-
1159405069000 BUSHING FOR EXHAUST SUPPORTBUSHING FOR EXHAUST SUPPORT
-
1277205068000 DAMP. COMPON. BLACKDAMP. COMPON. BLACK
-
130025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
1454603048000 RANGE CHANGE METAL NUT M8RANGE CHANGE METAL NUT M8
-
1572505091000 PLUG IN CATALYZERPLUG IN CATALYZER
-
1650205057000 SILICON SLEEVE D=29/31MMSILICON SLEEVE D=29/31MM
-
1750305016000 TEN.SPRING L=62MM EY.MOVEABLETEN.SPRING L=62MM EY.MOVEABLE
