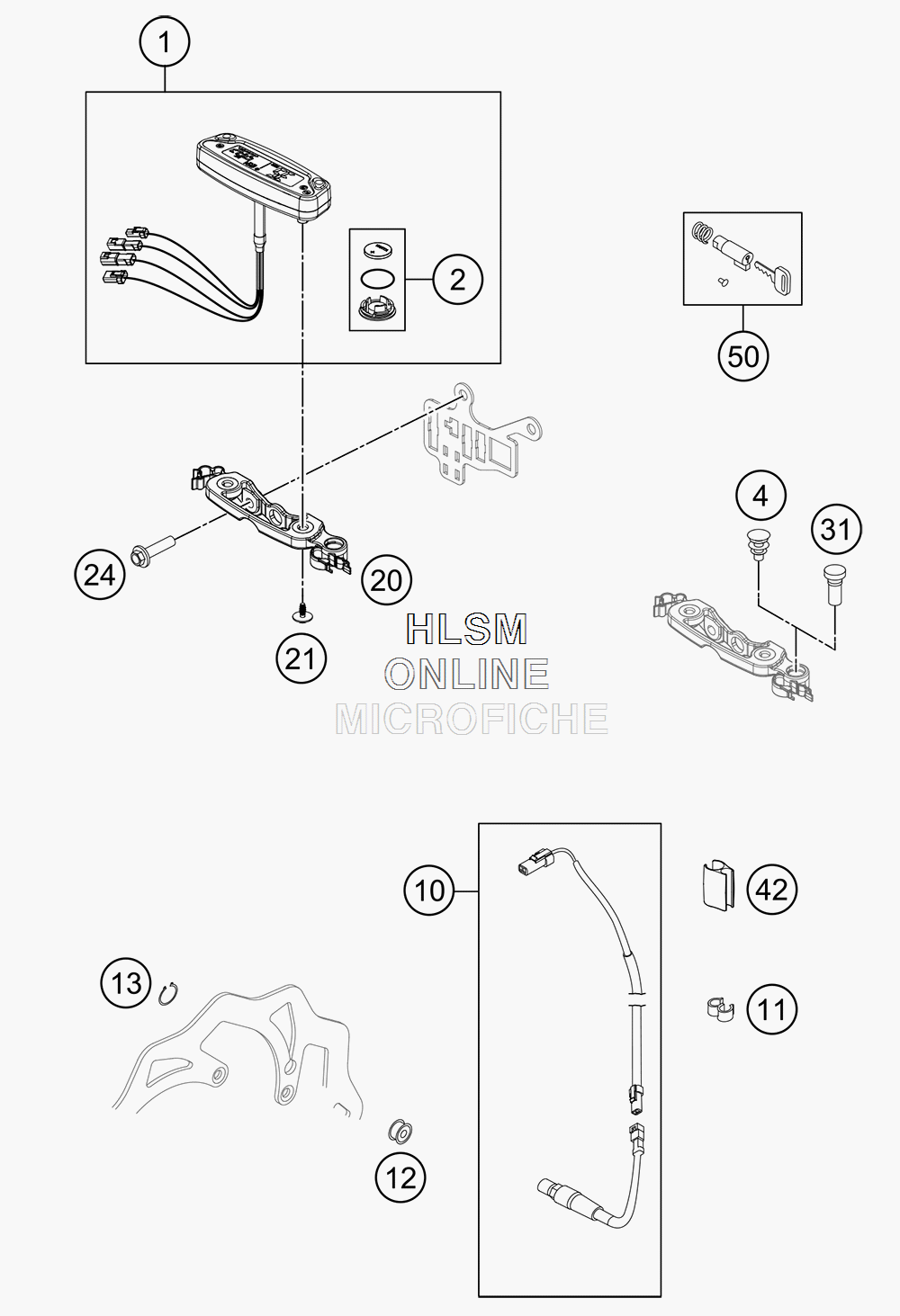

INSTRUMENTS- LOCKSYSTEM для Ktm 250R FREERIDE - 2017 года выпуска
-
№АртикулНазвание
-
181314069100 SPEEDOMETER DIGITAL KM/H 21"SPEEDOMETER DIGITAL KM/H 21"
-
281314069010 BATTERY COVER F. SPEEDOMETERBATTERY COVER F. SPEEDOMETER
-
450210086000 COVERING CAP SFL16COVERING CAP SFL16
-
1081314068000 CABLE FOR SPEEDOMETERCABLE FOR SPEEDOMETER
-
1160111094000 CLIP 5/7 MMCLIP 5/7 MM
-
1281314069050 MAGNET FOR SPEEDOMETERMAGNET FOR SPEEDOMETER
-
130471009104 CIRCLIP DIN0471- 9X1CIRCLIP DIN0471- 9X1
-
2077714060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
210081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
240025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
3158011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
4254813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
-
5078003035000 STEERING HEAD LOCKSTEERING HEAD LOCK
