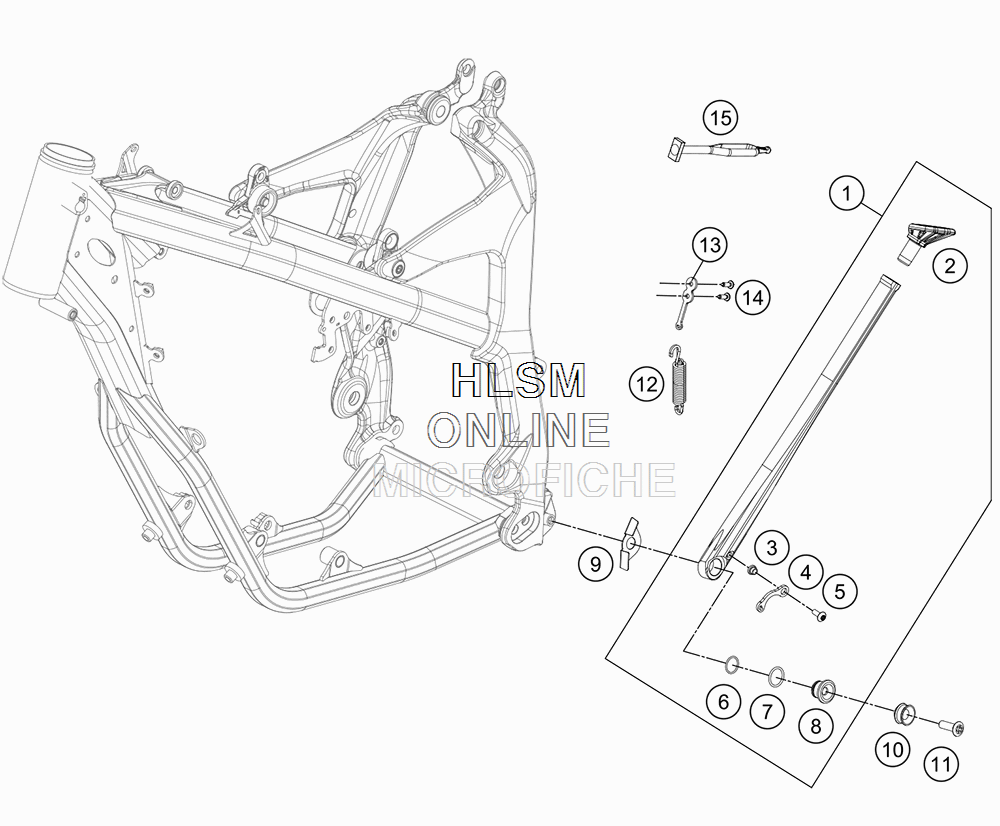

SIDE STAND для Ktm 250R FREERIDE - 2017 года выпуска
-
№АртикулНазвание
-
170003023044 SIDE STAND CPL.SIDE STAND CPL.
-
278003023155 STAND BASESTAND BASE
-
378003023070 SPACER BUSH. SPRING BRACKETSPACER BUSH. SPRING BRACKET
-
478003023090 SPRING BRACKET F. SIDE ST.SPRING BRACKET F. SIDE ST.
-
558605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
60770125015 O-RING 12,5X1,5 NBRO-RING 12,5X1,5 NBR
-
70770180020 O-RING 18,00X2,00 NBR 70O-RING 18,00X2,00 NBR 70
-
878003023080 SIDE STAND BUSHING EXC USASIDE STAND BUSHING EXC USA
-
947003023050 STOP SHEET SSTSTOP SHEET SST
-
1078003023081 SIDE STAND BUSHING EXC-EUSIDE STAND BUSHING EXC-EU
-
110019080356 COUNTERSUNK SCREW ISA45 M8X35COUNTERSUNK SCREW ISA45 M8X35
-
1281203024000 SIDE STAND SPRING EYE MOVEABLESIDE STAND SPRING EYE MOVEABLE
-
1370003024050 SIDE STAND SPRING PLATESIDE STAND SPRING PLATE
-
140017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
1550303018000 RUBBER L=145MMRUBBER L=145MM
