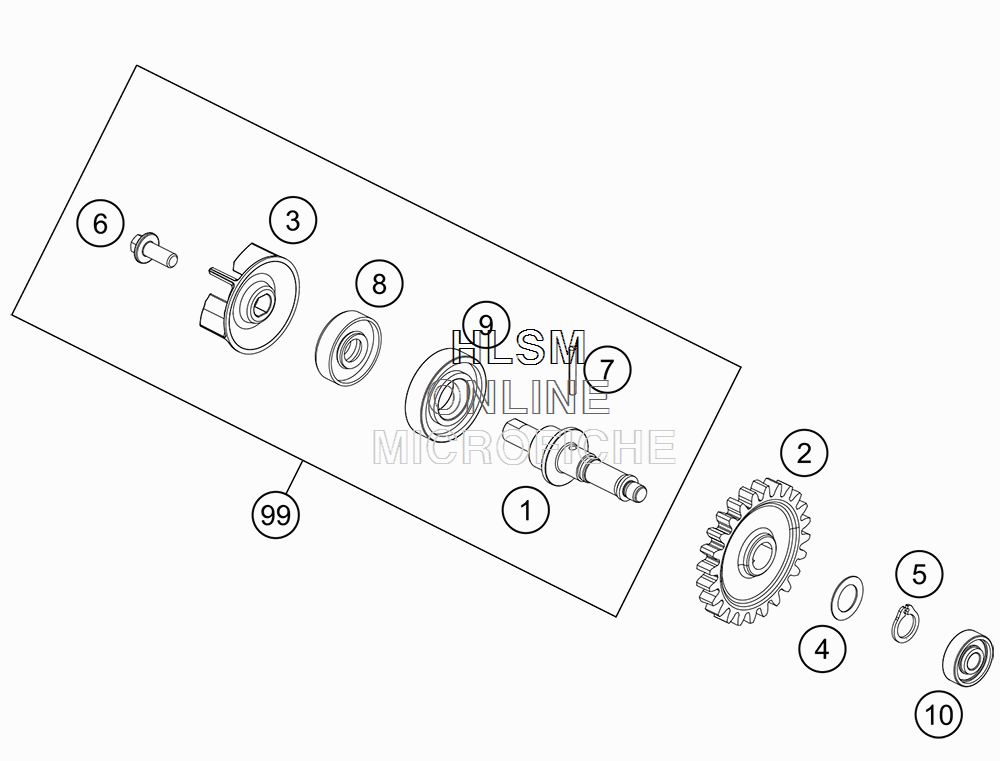

WATER PUMP для Ktm 250R FREERIDE - 2017 года выпуска
-
№АртикулНазвание
-
172535054000 WATER PUMP SHAFTWATER PUMP SHAFT
-
272535054024 WATER PUMP GEAR 24TWATER PUMP GEAR 24T
-
354835005000 WATER PUMP WHEELWATER PUMP WHEEL
-
460038007010 WASHER 10X16X0,5WASHER 10X16X0,5
-
50471009104 CIRCLIP DIN0471- 9X1CIRCLIP DIN0471- 9X1
-
60014050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
70402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8NEEDLEROL.DIN5402 NRA 2,5X19,8
-
80760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
90625160020 BALL BEARING 16002 C3BALL BEARING 16002 C3
-
1054637098100 BALL BEARING 626LLBC3/5KBALL BEARING 626LLBC3/5K
-
9972535055010 WATERPUMP REP-KITWATERPUMP REP-KIT
