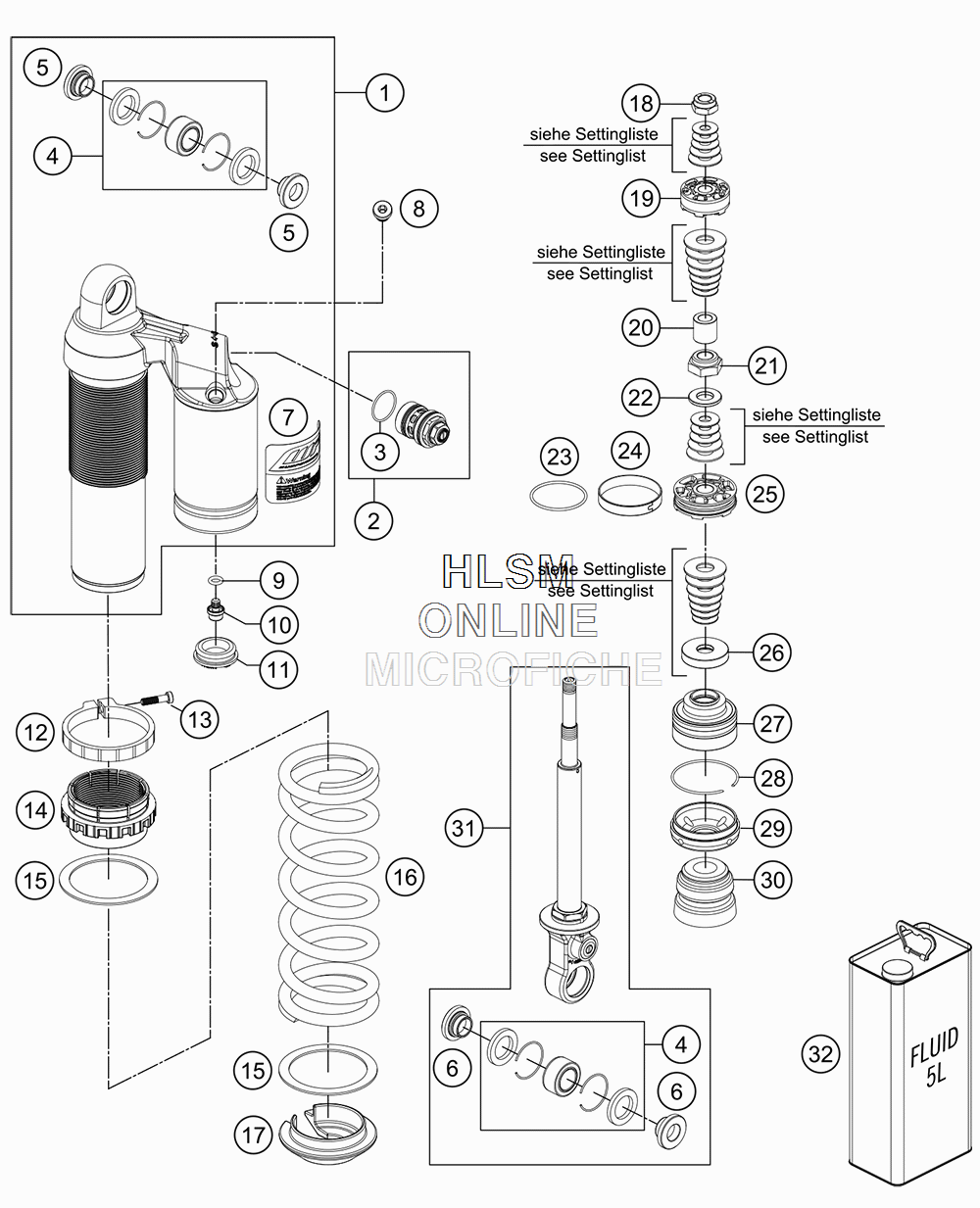

SHOCK ABSORBER DISASSEMBLED для Ktm 250R FREERIDE - 2017 года выпуска
-
№АртикулНазвание
-
146181018S1 MONOSHOCK CASE CPL.MONOSHOCK CASE CPL.
-
250180213S20 DCC-COMPR.DAMP.CONTROL CPL.DCC-COMPR.DAMP.CONTROL CPL.
-
350180218 O-RING 25X1,5 VITONO-RING 25X1,5 VITON
-
4R12012 REP. KIT BEAR./SEAL UP.REP. KIT BEAR./SEAL UP.
-
546181105 DISTANCE BUSH KGW 12X24DISTANCE BUSH KGW 12X24
-
646180007 ADAPTOR BUSH KGW 12X24ADAPTOR BUSH KGW 12X24
-
752000087 STICKER WP MONOSHOCKSTICKER WP MONOSHOCK
-
850180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
946810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
1036120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
1146811208 RUBBER CAP "DO NOT OPEN"RUBBER CAP "DO NOT OPEN"
-
1246181014 TENSIONING RING D64 H10TENSIONING RING D64 H10
-
1314460042 ALLENHEAD SCREW M5 L=20 STAINALLENHEAD SCREW M5 L=20 STAIN
-
1446181013 ADJUSTING NUT D46 PLASTICADJUSTING NUT D46 PLASTIC
-
1550180410 INTERM.RING D=58INTERM.RING D=58
-
1691010324S SPRING 55/63/71 N/MM SETSPRING 55/63/71 N/MM SET
-
1691010323S SPRING 58/66/74 N/MM SETSPRING 58/66/74 N/MM SET
-
1691010170S SPRING 55 N/MMSPRING 55 N/MM
-
1746180349 SPRING WASHER H=15 D=28SPRING WASHER H=15 D=28
-
1846180356 PISTON ROD NUT M10X1PISTON ROD NUT M10X1
-
1914460016 PISTON + PISTON SPRINGPISTON + PISTON SPRING
-
2046181016 SANDWICH BUSH 10X17X10SANDWICH BUSH 10X17X10
-
2146810474 PISTON ROD NUTPISTON ROD NUT
-
2246811258 RING 12X24X2,5RING 12X24X2,5
-
2346810035 O-RING VITON 37,82X1,78O-RING VITON 37,82X1,78
-
2446811206 PISTON RING 8X46PISTON RING 8X46
-
2546810560 PISTON 6+6D7PISTON 6+6D7
-
2614460017 REBOUND DISC H=4REBOUND DISC H=4
-
2746180669S ADAPTOR CPL. D=46 H=28ADAPTOR CPL. D=46 H=28
-
2846810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
2946180338 CAP D=46 H=9,5CAP D=46 H=9,5
-
3050180276 BUMP RUBBER WP60 D=18-26BUMP RUBBER WP60 D=18-26
-
3146181010S1 MONOSHOCK LOWER PARTMONOSHOCK LOWER PART
-
3250180751S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
