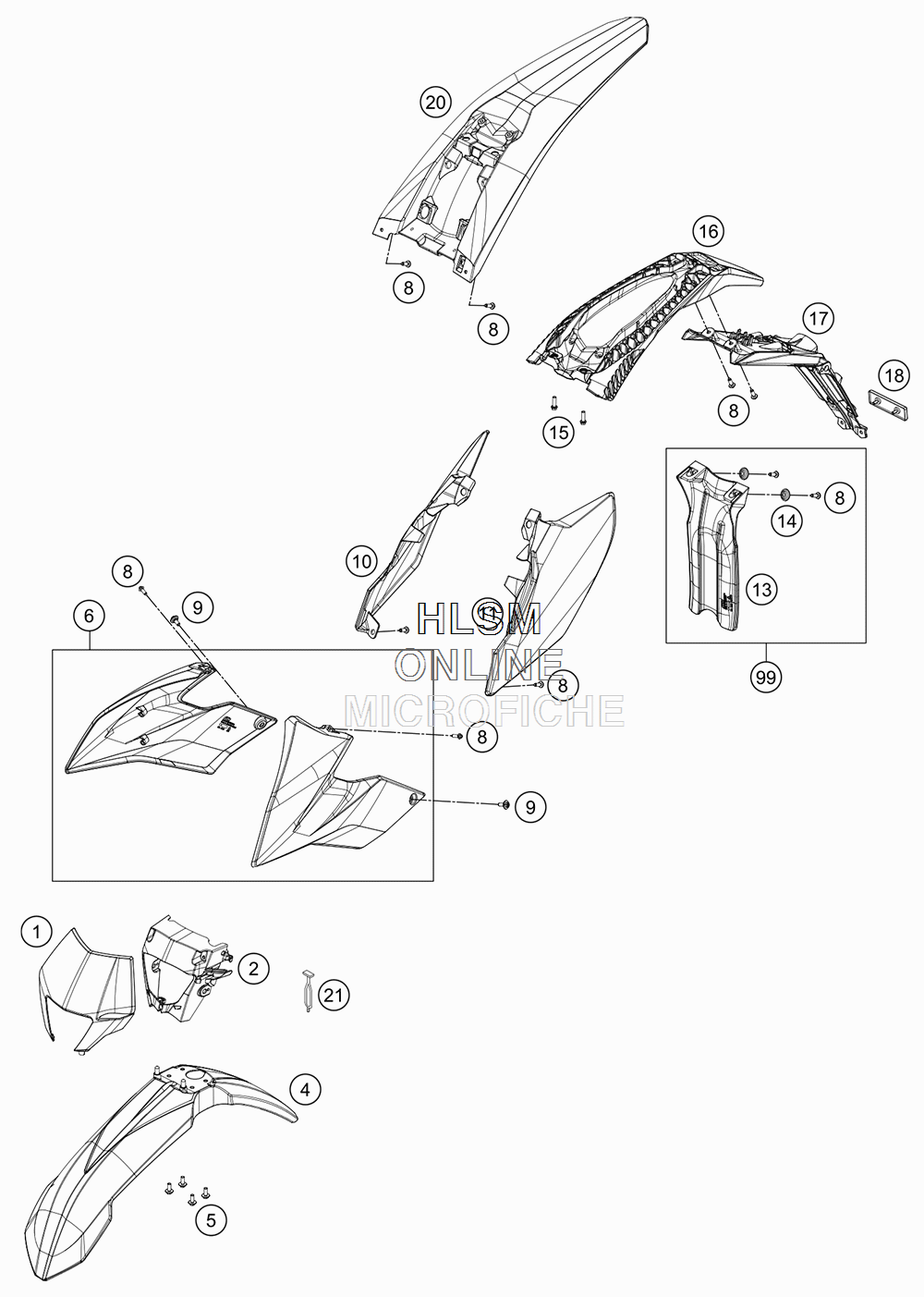

MASK- FENDER для Ktm 250R FREERIDE - 2017 года выпуска
-
№АртикулНазвание
-
17000800200028 HEADLIGHT MASK TOP PART WHITEHEADLIGHT MASK TOP PART WHITE
-
27200800100030 HEAD LIGHT MASK LOWER PARTHEAD LIGHT MASK LOWER PART
-
44710801000028 FRONT FENDER WHITEFRONT FENDER WHITE
-
50024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
67000805400028D SPOILER KIT FREERIDE WHITESPOILER KIT FREERIDE WHITE
-
80017060206 SCREW F. PLASTIC K60X20ALSCREW F. PLASTIC K60X20AL
-
983008000012 SPECIAL SCREW M6X12X3SPECIAL SCREW M6X12X3
-
107000804200028 SIDE COVER R/S WHITESIDE COVER R/S WHITE
-
117000804100028 SIDE COVER L/S WHITESIDE COVER L/S WHITE
-
1370004050000 SPLASHBACKSPLASHBACK
-
1477304066050 BUSHING F. CHAIN SLIDINGBUSHING F. CHAIN SLIDING
-
150025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1670008016000 NUMBER PLATE CARRIER TOPNUMBER PLATE CARRIER TOP
-
1770008016050 NUMBER PLATE CARRIER BOTTOMNUMBER PLATE CARRIER BOTTOM
-
1858412080200 REFLECTOR RED "CEV"REFLECTOR RED "CEV"
-
207000811310028 REAR PART WHITEREAR PART WHITE
-
2150303018000 RUBBER L=145MMRUBBER L=145MM
-
9970006010010 SPLASH PROTECTOR KIT FREERIDESPLASH PROTECTOR KIT FREERIDE
