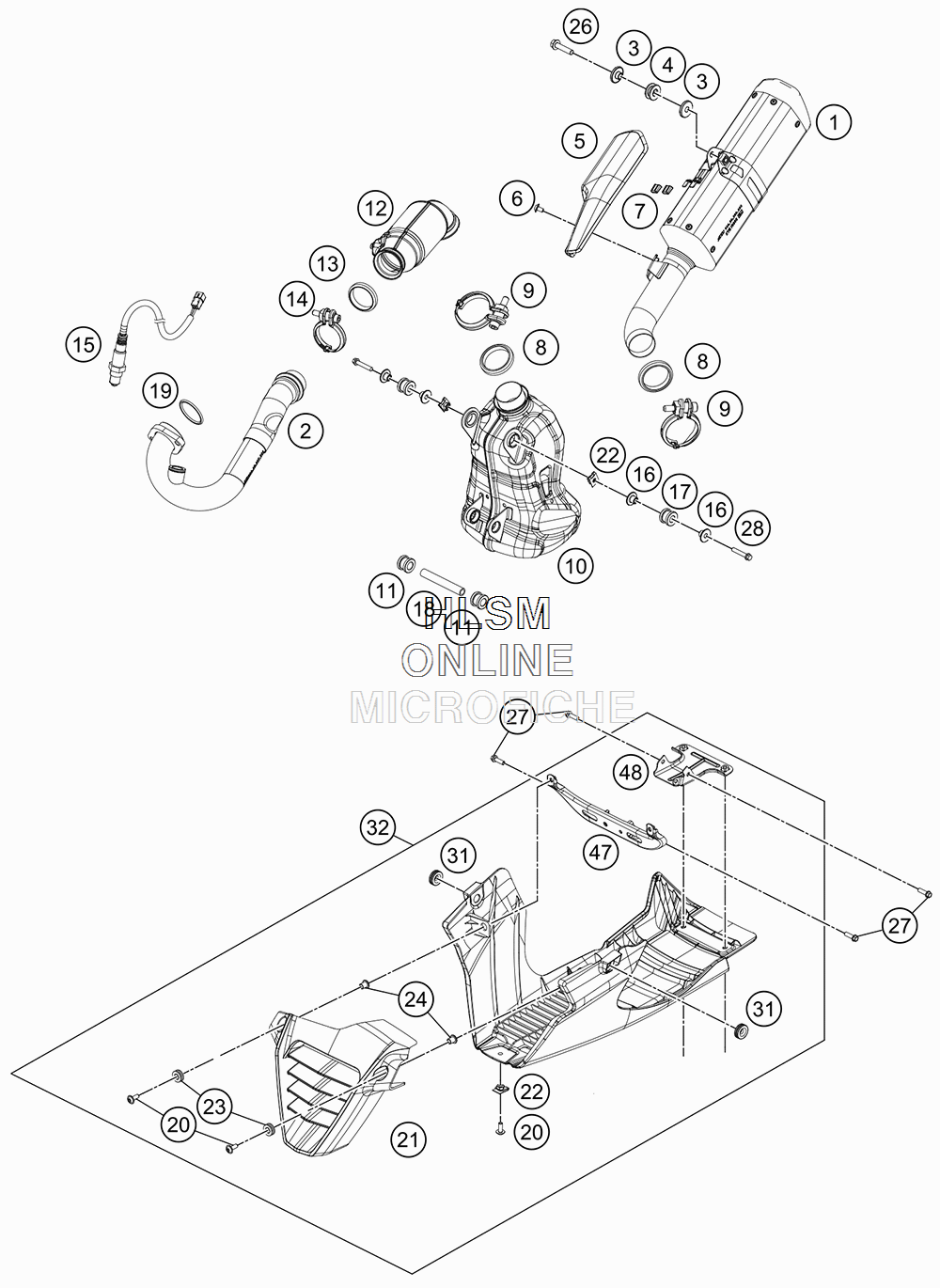

EXHAUST SYSTEM для Ktm 390 RC - 2018 года выпуска
-
№АртикулНазвание
-
193805583000 SILENCERSILENCER
-
293805007000 HEADER CPL.HEADER CPL.
-
393805095000 BUSH MUFFLERBUSH MUFFLER
-
493805096000 DAMPER MUFFLERDAMPER MUFFLER
-
593805011000 MUFFLER SHIELDMUFFLER SHIELD
-
690808073000 SPECIAL SCREW M6X1X10SPECIAL SCREW M6X1X10
-
793805011003 GROMMET MUFFLER SHIELDGROMMET MUFFLER SHIELD
-
893805005100 GASKET PIPE CGASKET PIPE C
-
993805058100 CLAMP DIA 60CLAMP DIA 60
-
1093505050000 PREMUFFLERPREMUFFLER
-
1190105068100 DAMPING ELEMENT LOWERDAMPING ELEMENT LOWER
-
1293605008000 CATALYTIC CONVERTER CPL.CATALYTIC CONVERTER CPL.
-
1393805005000 GASKET PIPE BGASKET PIPE B
-
1493805058000 CLAMP DIA 54CLAMP DIA 54
-
1590141090000 LAMBDA SENSORLAMBDA SENSOR
-
1690205086001 DISTANCE BUSHING SIL. MOUNTINGDISTANCE BUSHING SIL. MOUNTING
-
1790205068000 DAMPER , BOTTOMDAMPER , BOTTOM
-
1890105084000 MOUNTING TUBE EDMOUNTING TUBE ED
-
1990105004000 EXHAUST PIPE FLANGE GASKETEXHAUST PIPE FLANGE GASKET
-
2090508006003 AH SCREW M6X1X20AH SCREW M6X1X20
-
2193808020100 BELLY PANBELLY PAN
-
2290103097000 CLIP NUTCLIP NUT
-
2393808026100 GROMMET BELLY PANGROMMET BELLY PAN
-
2493808027000 SLEEVESLEEVE
-
26J025080353 BOLT FLANGED M8X35BOLT FLANGED M8X35
-
27J025060203 HH COLLAR SCREW M6X20 SW10HH COLLAR SCREW M6X20 SW10
-
2890105000002 BOL T SILENCER MTGBOL T SILENCER MTG
-
3190508055010 GROMMET SIDE FAIRINGGROMMET SIDE FAIRING
-
329380802003330 KT06 BELLY PAN ASSLYKT06 BELLY PAN ASSLY
-
4793808026001 BRACKET BELLY PAN FRONTBRACKET BELLY PAN FRONT
-
4893808027001 BRACKET BELLY PAN REARBRACKET BELLY PAN REAR
