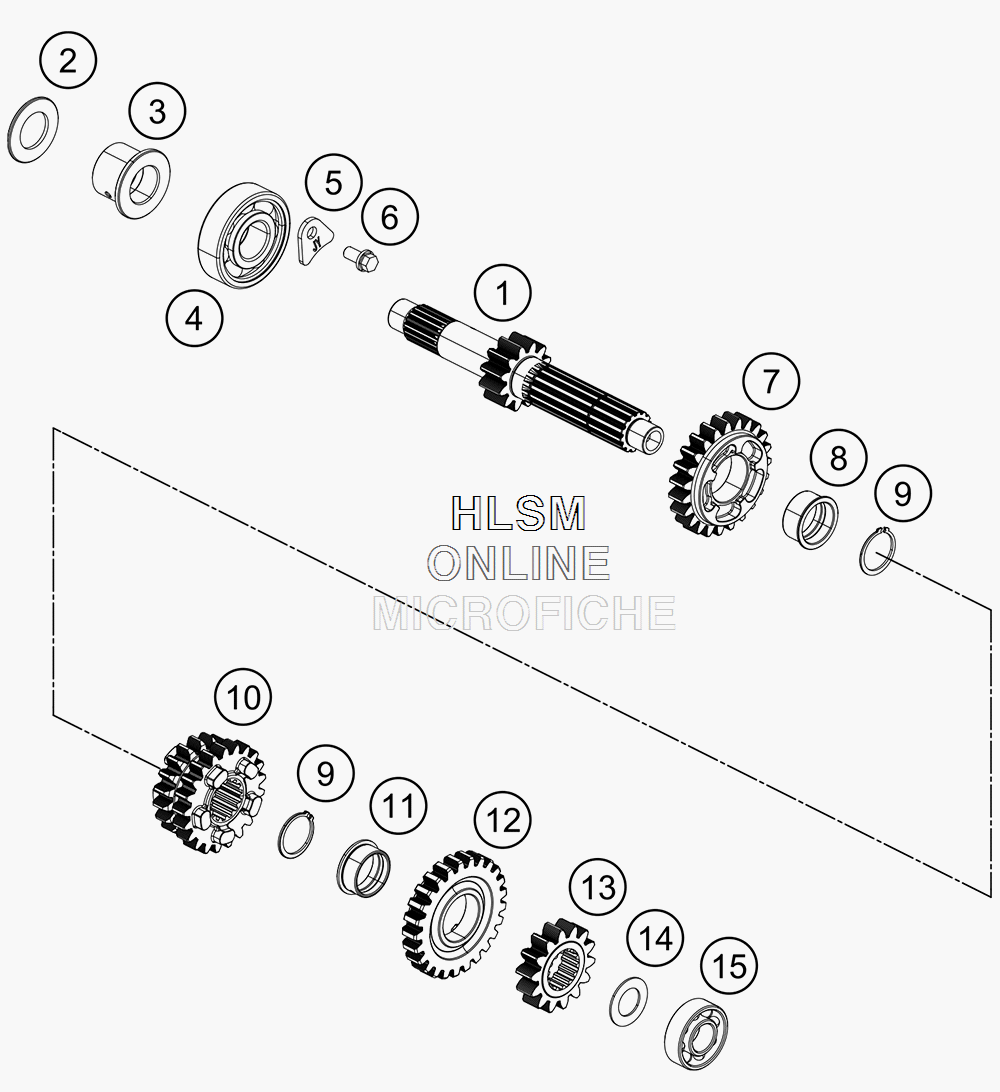

TRANSMISSION I - MAIN SHAFT для Ktm 390 RC - 2018 года выпуска
-
№АртикулНазвание
-
190233001000 MAIN SHAFTMAIN SHAFT
-
290232020000 WASHERWASHER
-
390232016000 COLLAR BUSHCOLLAR BUSH
-
4J625063040 DEEP GROOVE BALL BEARING 6304DEEP GROOVE BALL BEARING 6304
-
590230079000 STOPPER BALANCER SHAFT BEARINGSTOPPER BALANCER SHAFT BEARING
-
690130078001 FLANGED BOLT 6X12FLANGED BOLT 6X12
-
790233005000 GEAR 5TH DRIVEGEAR 5TH DRIVE
-
890233005001 COLLAR BUSHCOLLAR BUSH
-
9J471020123 CIRCLIP 20,5X1,2CIRCLIP 20,5X1,2
-
1090233003000 GEAR 3RD/4TH DRIVEGEAR 3RD/4TH DRIVE
-
1190233006001 COLLAR BUSHCOLLAR BUSH
-
1290233006000 GEAR 6TH DRIVEGEAR 6TH DRIVE
-
1390233002000 GEAR 2ND DRIVEGEAR 2ND DRIVE
-
1490233036000 WASHER TRUST 2ND DRIVEWASHER TRUST 2ND DRIVE
-
15J625062122 BALL BEARING 15X35X11-C3-1BALL BEARING 15X35X11-C3-1
