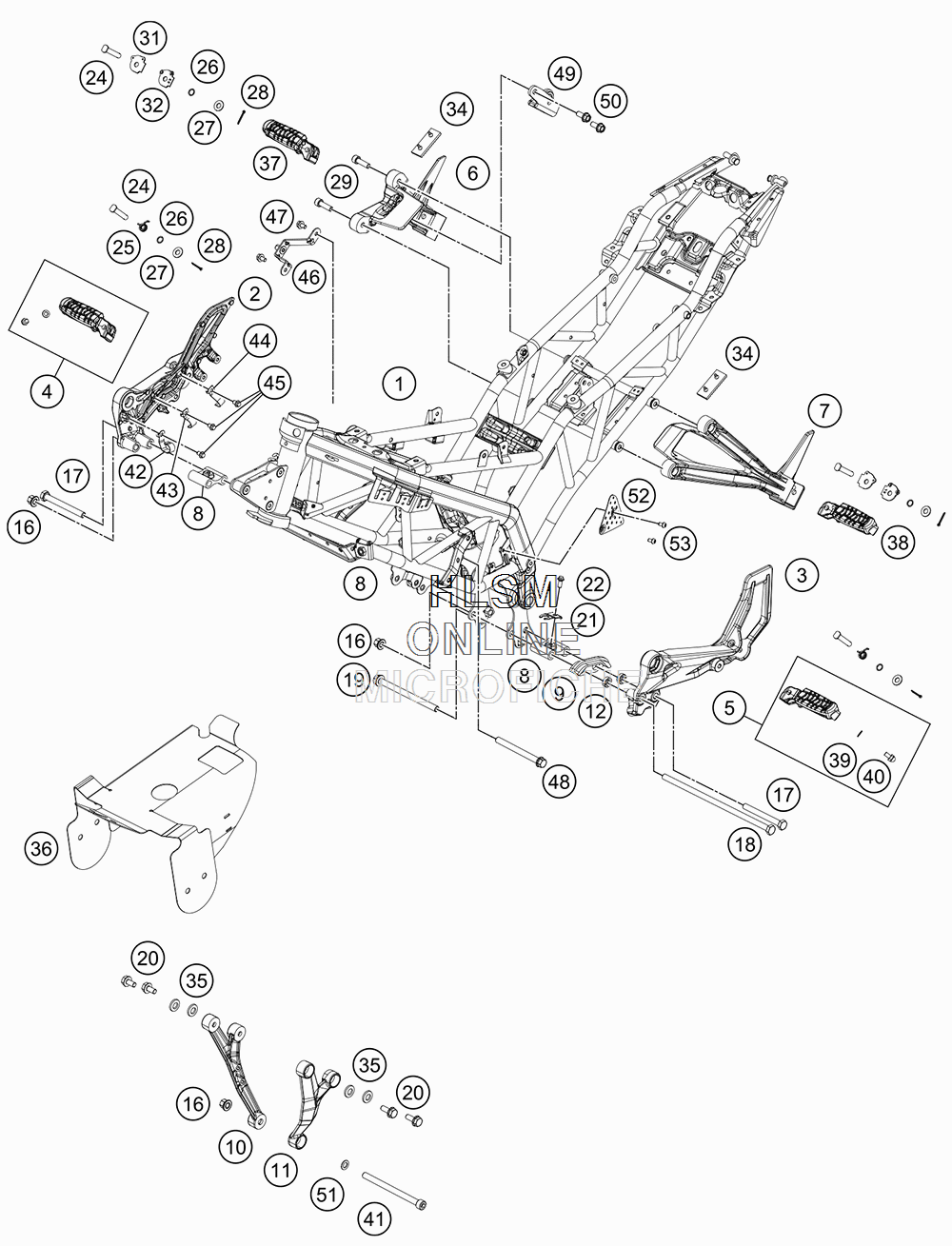

FRAME для Ktm 390 RC - 2018 года выпуска
-
№АртикулНазвание
-
193503001300EB RAHMEN ORANGERAHMEN ORANGE
-
290503039000 FOOTREST BRACKET FRONT R/SFOOTREST BRACKET FRONT R/S
-
390503038000 FOOTREST BRACKET FRONT L/SFOOTREST BRACKET FRONT L/S
-
490103041033 FOOTREST FRONT R/S CPL.FOOTREST FRONT R/S CPL.
-
590103040033 FOOTREST FRONT L/S CPL.FOOTREST FRONT L/S CPL.
-
690503049000 FOOTREST BRACKET REAR R/SFOOTREST BRACKET REAR R/S
-
790503048000 FOOTREST BRACKET REAR L/SFOOTREST BRACKET REAR L/S
-
890103038001 TAP FOOTREST BRACKET FRONTTAP FOOTREST BRACKET FRONT
-
990104070000 CHAIN GUIDECHAIN GUIDE
-
1093303006000 ENGINE BRACE RIGHTENGINE BRACE RIGHT
-
1193303005000 ENGINE BRACE LEFT250/390ENGINE BRACE LEFT250/390
-
1290104066010 SPACER CHAIN GUIDESPACER CHAIN GUIDE
-
1690103038002 FLANGED NUT M10X1,25 WS14FLANGED NUT M10X1,25 WS14
-
17J025100926 HH COLLAR SCREW M10X1,25X92HH COLLAR SCREW M10X1,25X92
-
18J025102656 HH COLLAR SCREW M10X1,25X265HH COLLAR SCREW M10X1,25X265
-
19J027081053 HH COLLAR SCREW M8X105 SW12HH COLLAR SCREW M8X105 SW12
-
20J912080253 SOCKET HEAD SCREW M8X25 8.8SOCKET HEAD SCREW M8X25 8.8
-
2190111045050 CABLE BRACKETCABLE BRACKET
-
2290103032000 FLANGED BOLT M6X14FLANGED BOLT M6X14
-
2490503045000 BOLT FOR FOOTRESTBOLT FOR FOOTREST
-
2590103042000 RETURN SPRING FOOTRESTRETURN SPRING FOOTREST
-
26J770009015 O-RING 9X1,5O-RING 9X1,5
-
2790503048010 W ASHER D=8,5W ASHER D=8,5
-
28J094018250 PIN 25X1,8MMPIN 25X1,8MM
-
2990503098000 BOLT SOCKET M8X1.25XLBOLT SOCKET M8X1.25XL
-
3190503053000 LOCK PLATE LOWERLOCK PLATE LOWER
-
3290503052000 LOCK PLATE UPPERLOCK PLATE UPPER
-
3490503050000 RUBBER DAMPER FOR FOOTRESTRUBBER DAMPER FOR FOOTREST
-
35J125080005 WASHER M8WASHER M8
-
3690805090000 HEAT SHIELDHEAT SHIELD
-
3790103051033 FOOTREST REAR R/S CPL.FOOTREST REAR R/S CPL.
-
3890103050033 FOOTREST REAR L/S CPL.FOOTREST REAR L/S CPL.
-
3990103040001 PLAIN W ASHER 6,4X12X1PLAIN W ASHER 6,4X12X1
-
40J029060103S CAP SCREW M6X10 SSCAP SCREW M6X10 SS
-
4190203008000 BOLT M10X135BOLT M10X135
-
4290113025000 BRAKE HOSE GUIDE FRONTBRAKE HOSE GUIDE FRONT
-
4390513046000 BRACKET HOSE CLAMP 2BRACKET HOSE CLAMP 2
-
4490513045000 BRACKET HOSE CLAMP 1BRACKET HOSE CLAMP 1
-
45J025060083 HH COLLAR SCREW M6X8 SW8HH COLLAR SCREW M6X8 SW8
-
4690503034000 BRACKET SIDECOVERBRACKET SIDECOVER
-
47J025060103 HH COLLAR SCREW M6X10 SW10HH COLLAR SCREW M6X10 SW10
-
48J025101103 HH COLLAR SCREW M10X110 WS14HH COLLAR SCREW M10X110 WS14
-
4993505088000 BRACKET SILENCER MTGBRACKET SILENCER MTG
-
50J025080183 BOL T FLANGED M8X18BOL T FLANGED M8X18
-
51J125100009 WASHER M10WASHER M10
-
5293508041080 PROTECTION CATALYSTPROTECTION CATALYST
-
53J031060106 SCREW BUTTON HEAD-M5X0.8XL 8XBSCREW BUTTON HEAD-M5X0.8XL 8XB
