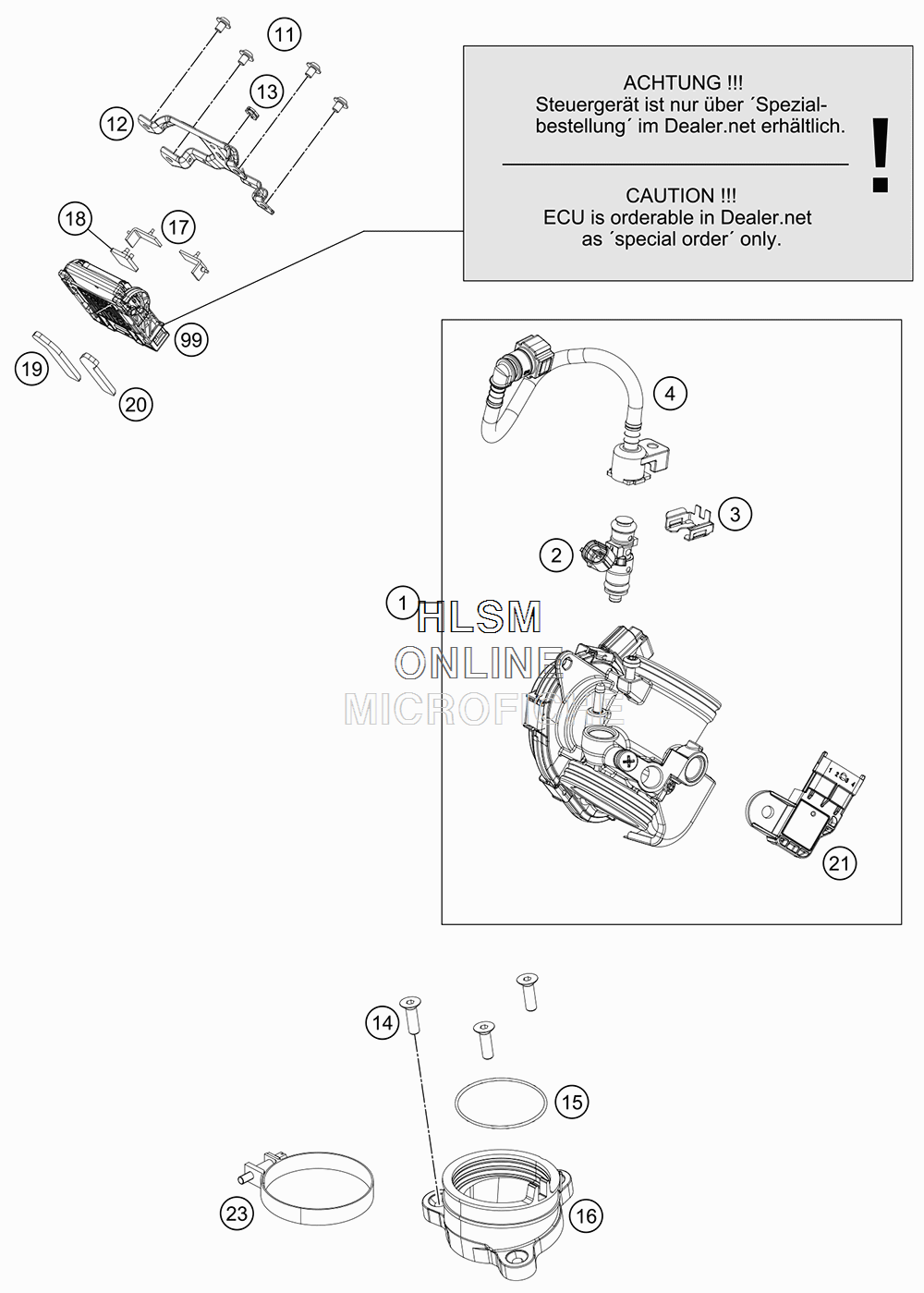

THROTTLE BODY для Ktm 390 RC - 2018 года выпуска
-
№АртикулНазвание
-
193841001000 THROTTLE BODYTHROTTLE BODY
-
290241023000 FUEL INJECTORFUEL INJECTOR
-
390141001001 INJECTOR CLIPINJECTOR CLIP
-
493841034000 FUEL HOSE CPL.FUEL HOSE CPL.
-
1190508006004 SOCKET HEAD BOLT M6X1X8SOCKET HEAD BOLT M6X1X8
-
1293807017001 BRACKET ECU MTG TOPBRACKET ECU MTG TOP
-
1393541034000 DAMPER ECUDAMPER ECU
-
14J991060203S COUNTERSUNK SCREW M6X20COUNTERSUNK SCREW M6X20
-
15J770053024 O-RING 53X2,4O-RING 53X2,4
-
1690241002000 PIPE INTAKEPIPE INTAKE
-
1793841036000 RUBBER BAND, ECURUBBER BAND, ECU
-
1893841032000 RUBBER BAND, ECU, TOPRUBBER BAND, ECU, TOP
-
1993841035000 RUBBER BAND, ECU, RIGHTRUBBER BAND, ECU, RIGHT
-
2093841030000 RUBBER BAND, ECU, LEFTRUBBER BAND, ECU, LEFT
-
2190141071000 TMAP-SENSORTMAP-SENSOR
-
2390241002010 HOSE CLAMPHOSE CLAMP
-
9993841031000 CONTROL UNITCONTROL UNIT
