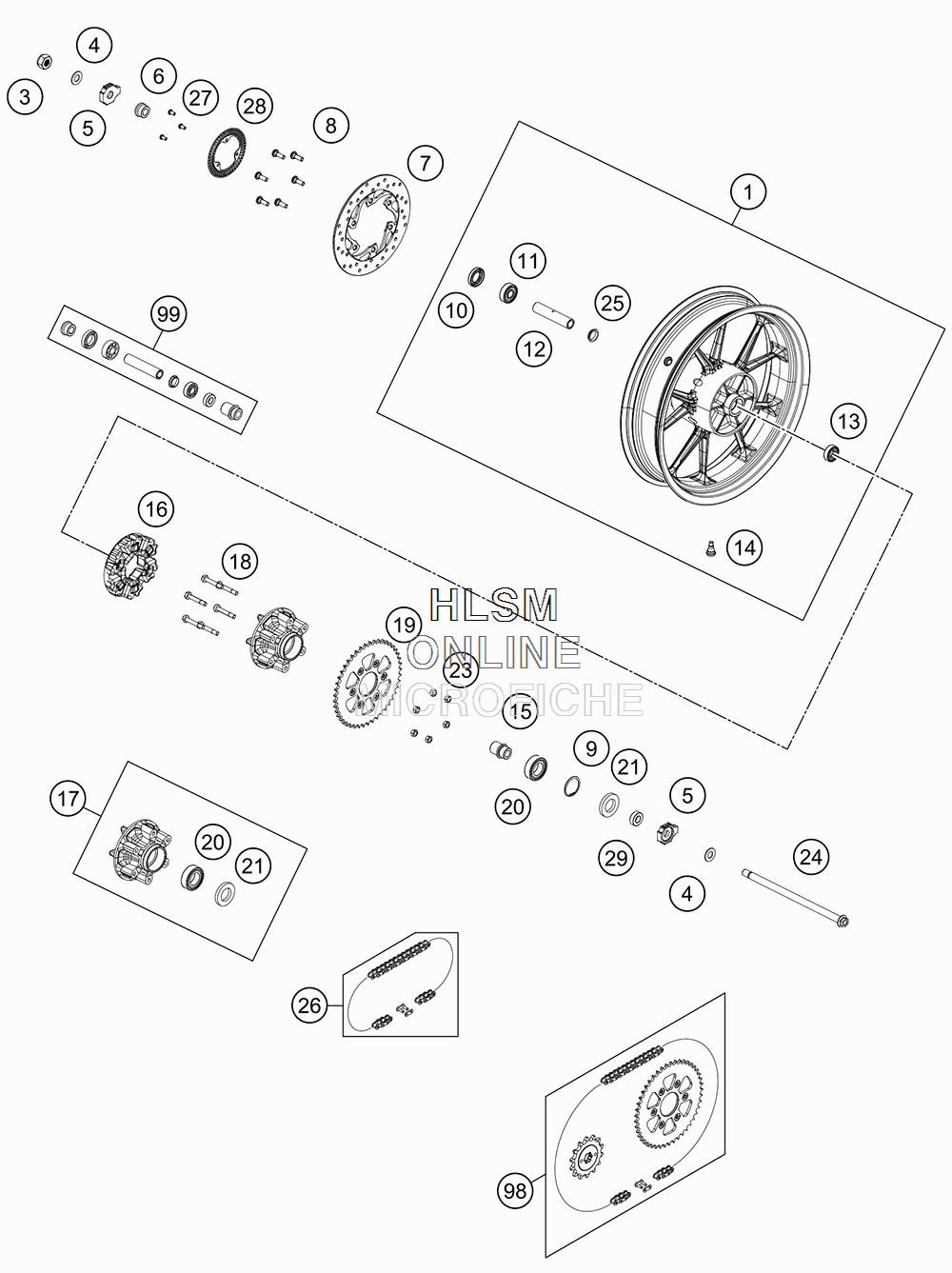

REAR WHEEL для Ktm 390 RC - 2018 года выпуска
-
№АртикулНазвание
-
193010001044EB REAR WHEEL CPL. ORANGEREAR WHEEL CPL. ORANGE
-
390210086000 NUT REAR AXLENUT REAR AXLE
-
490610087000 WASHER 15,2X30X2WASHER 15,2X30X2
-
590110084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
690110013000 SPACER BUSHING REAR WHEEL R/SSPACER BUSHING REAR WHEEL R/S
-
790110060000 WAVE BRAKE DISC REARWAVE BRAKE DISC REAR
-
890110062000 SPECIAL SCREW M8X25 SELF LOCK.SPECIAL SCREW M8X25 SELF LOCK.
-
9J472042170 CIRCLIPCIRCLIP
-
10J760264208 SHAFT SEAL RING 26X42X8SHAFT SEAL RING 26X42X8
-
11J625063021 GROOVED BALL BEARING 6302GROOVED BALL BEARING 6302
-
1290110011000 BEARING SPACER TUBE REARBEARING SPACER TUBE REAR
-
13J625062023 BALL BEARING 6202BALL BEARING 6202
-
1490109076000 VALVE CPL.VALVE CPL.
-
1590610054000 SPACER BUSHING KRT INSIDESPACER BUSHING KRT INSIDE
-
1690210059100 DAMP RUBBER REAR WHEELDAMP RUBBER REAR WHEEL
-
1790210050000 SPROCKET SUPPORTSPROCKET SUPPORT
-
1890810052000 SPECIAL SCREW M8X48SPECIAL SCREW M8X48
-
1990510051045 SPROCKET 45TSPROCKET 45T
-
20J625062050 BALL BEARING 6205BALL BEARING 6205
-
21J760295207 SHAFT SEAL RING 29X52X7SHAFT SEAL RING 29X52X7
-
2390510052000 FLANGED NUT M8X1,25FLANGED NUT M8X1,25
-
2490210085000 REAR AXLEREAR AXLE
-
2590109011001 FIXATION BEARING SPACER TUBEFIXATION BEARING SPACER TUBE
-
2678010167118 CHAIN DID 118 LINKSCHAIN DID 118 LINKS
-
2790142021001 SCREW FOR ABSSCREW FOR ABS
-
2890142021000 SENSOR DISC REARSENSOR DISC REAR
-
2990110053000 SPACER CHAIN WHEEL SUPPORTSPACER CHAIN WHEEL SUPPORT
-
9800050002059 DRIVETRAIN KIT 390 DUKE 2015DRIVETRAIN KIT 390 DUKE 2015
-
9990110015100 REAR WHEEL REP . KIT 390 DUKEREAR WHEEL REP . KIT 390 DUKE
