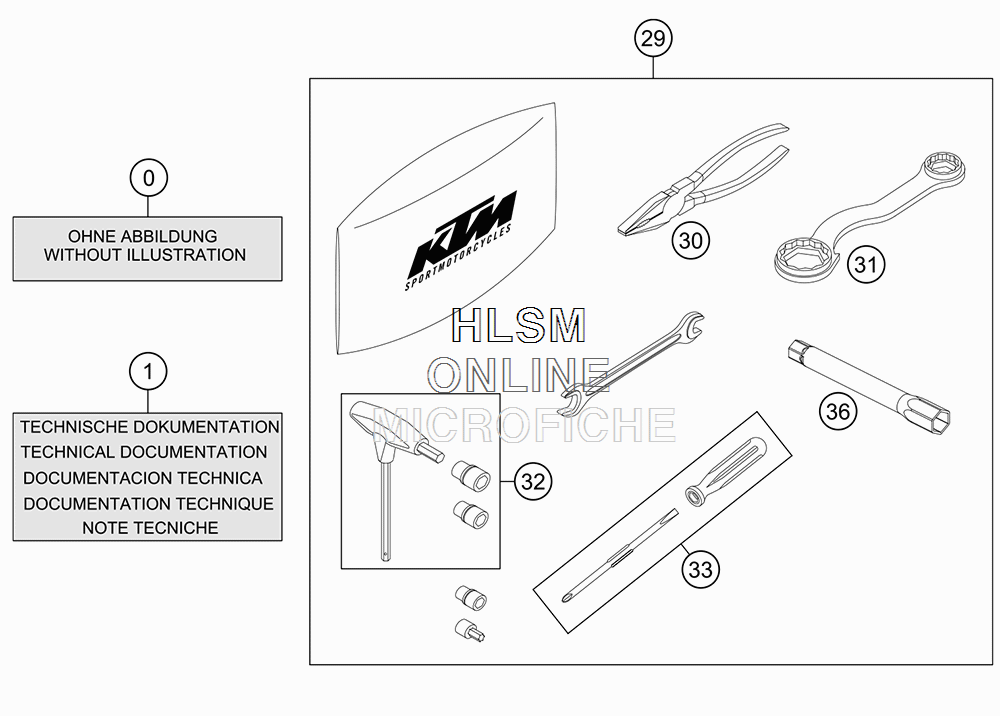

ACCESSORIES KIT для Ktm 690 ENDURO R - 2018 года выпуска
-
№АртикулНазвание
-
076512008000 HAND GRIP L/SHAND GRIP L/S
-
076512009000 HAND GRIP R/SHAND GRIP R/S
-
00019080756 COUNTERSUNK SCREW ISA45 M8X75COUNTERSUNK SCREW ISA45 M8X75
-
076503038150 HEEL PROTECTOR LSHEEL PROTECTOR LS
-
076503039050 HEEL PROTECTOR RSHEEL PROTECTOR RS
-
00025080126 HH COLLAR SCREW M8X12HH COLLAR SCREW M8X12
-
078003040033 FOOTREST L/S + R/S CPL.FOOTREST L/S + R/S CPL.
-
060012081200 LICENCE FITTINGLICENCE FITTING
-
00125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
00985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
058412080400 REAR REFLECTOR REDREAR REFLECTOR RED
-
058412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
040006006000 WASHER 6MMWASHER 6MM
-
00966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
00125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
00985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
0312305 DOCUMENTS BAGDOCUMENTS BAG
-
03210917 NOTEP ADNOTEP AD
-
0312313 KTM BALLPOINT PEN ORANGEKTM BALLPOINT PEN ORANGE
-
000063099111 BAG FOR INSTR. MANUAL 245X170BAG FOR INSTR. MANUAL 245X170
-
07650304803301 FOOT REST SUPPORT REAR L/SFOOT REST SUPPORT REAR L/S
-
07650304903301 FOOT REST SUPPORT REAR R/SFOOT REST SUPPORT REAR R/S
-
00025080166 HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
076512040000 REVIEW MIRROR L/SREVIEW MIRROR L/S
-
076512041000 REVIEW MIRROR R/SREVIEW MIRROR R/S
-
058412040050 SUPPORT FOR MIRRORSUPPORT FOR MIRROR
-
076503090044 UNDERRIDE PROTECTION CPL.UNDERRIDE PROTECTION CPL.
-
00024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
060035001000 SPECIAL SCREW M6X21 WS=8SPECIAL SCREW M6X21 WS=8
-
056401040000 RUBBER BUSHINGRUBBER BUSHING
-
076503025000 RUBBER SIDE STANDRUBBER SIDE STAND
-
000063004202 PRINT LABEL 60X51 MMPRINT LABEL 60X51 MM
-
000040000100 ADHESIVE FOIL, SILVER 95X35MMADHESIVE FOIL, SILVER 95X35MM
-
000063004012 HEADLIGHT MASK BOXHEADLIGHT MASK BOX
-
13213746EN BED.-ANL. 690 ENDURO R US 2018BED.-ANL. 690 ENDURO R US 2018
-
2975029099100 TOOL SETTOOL SET
-
3053012028200 GRIP ORANGE B & FGRIP ORANGE B & F
-
3150329080100 WRENCH SW=17/21/27/32 B & FWRENCH SW=17/21/27/32 B & F
-
3260029070300 T-WRENCH WS=6/8/10/TX45/SK4X1T-WRENCH WS=6/8/10/TX45/SK4X1
-
3353012024100 SCREW DRIVER L=105MMSCREW DRIVER L=105MM
-
3675029072000 SPARK PLUG WRENCHSPARK PLUG WRENCH
