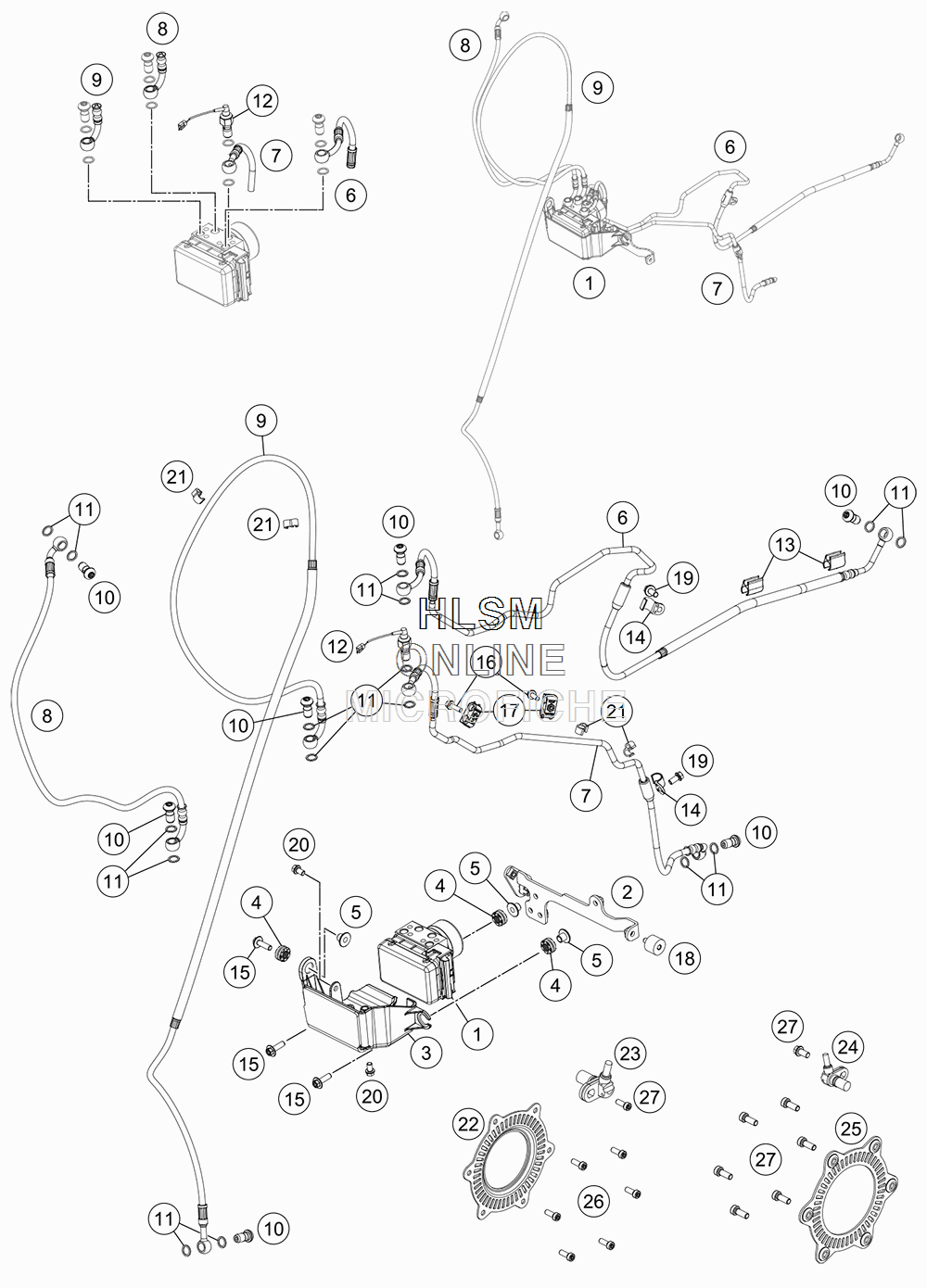

ANTI-LOCK SYSTEM ABS для Ktm 690 ENDURO R - 2018 года выпуска
-
№АртикулНазвание
-
176542031044 ABS-MODULE FILLEDABS-MODULE FILLED
-
276542040000 BRACKET ABS-MODULEBRACKET ABS-MODULE
-
376542030000 COVER ABS-MODULECOVER ABS-MODULE
-
462142041000 DAMP. COMPONENT ABS MODULDAMP. COMPONENT ABS MODUL
-
561342041000 COLLAR BUSH 6,5X9X18X8,5COLLAR BUSH 6,5X9X18X8,5
-
676542001000 BRAKE HOSE REAR CALIPERBRAKE HOSE REAR CALIPER
-
776542003000 BRAKE HOSE REAR MASTER CYL.BRAKE HOSE REAR MASTER CYL.
-
876542005000 BRAKE HOSE HAND BRAKE CYLINDERBRAKE HOSE HAND BRAKE CYLINDER
-
976542006000 BRAKE HOSE FRONT CALIPERBRAKE HOSE FRONT CALIPER
-
1062113020100 HOLL. SCREW M10X1X19.5HOLL. SCREW M10X1X19.5
-
110603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1262111051000 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
1354813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
-
1476542050000 CLAMPCLAMP
-
150024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
160025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
1760113146000 SUPPORT FOR BRAKE HOSE M5SUPPORT FOR BRAKE HOSE M5
-
1843205062100 RUBBER GROMMET 20X15-M6X10 (1)RUBBER GROMMET 20X15-M6X10 (1)
-
190025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
200025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
2160111094000 CLIP 5/7 MMCLIP 5/7 MM
-
2260142020000 SENSOR WHEEL FRONTSENSOR WHEEL FRONT
-
2376542025000 ABS-SENSOR LEFTABS-SENSOR LEFT
-
2476042025000 ABS-SENSOR RIGHTABS-SENSOR RIGHT
-
2576542021000 SENSOR WHEEL ABS REARSENSOR WHEEL ABS REAR
-
2659009062026 SPECIAL SCREW M6X26 SW=8 10.9SPECIAL SCREW M6X26 SW=8 10.9
-
27014580060166S CYL.HEAD SCREW DIN14580 M6X16CYL.HEAD SCREW DIN14580 M6X16
