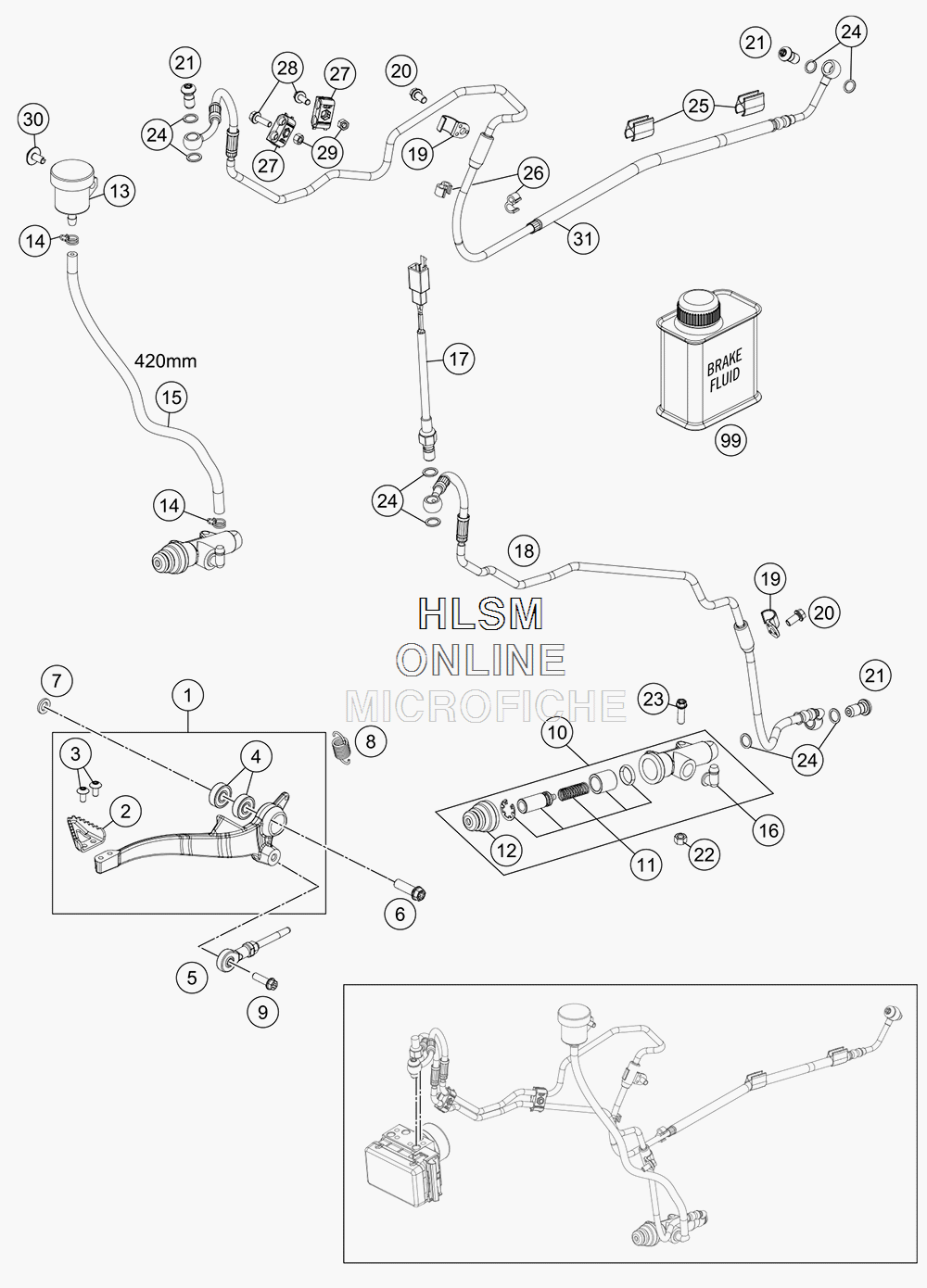

REAR BRAKE CONTROL для Ktm 690 ENDURO R - 2018 года выпуска
-
№АртикулНазвание
-
17651305024401 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
260013051000 STEP PLATE FOOT BRAKE LEVER 03STEP PLATE FOOT BRAKE LEVER 03
-
378105081010 SCREW TORX M5X10SCREW TORX M5X10
-
40625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
576513056144 PUSH ROD CPL.PUSH ROD CPL.
-
60025080306S HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
70125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
854603062100 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
90025060206S HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1054513101044 MAIN BRAKE CYLINDERMAIN BRAKE CYLINDER
-
1176513061000 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
-
1254513151000 RUBBER SLEEVERUBBER SLEEVE
-
1354513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
1458007017000 YDNAC CLAMP 10101 (10,4MM)YDNAC CLAMP 10101 (10,4MM)
-
1569013069001 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
1654513155000 ANGLE PIECEANGLE PIECE
-
1762111051000 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
1876542003000 BRAKE HOSE REAR MASTER CYL.BRAKE HOSE REAR MASTER CYL.
-
1976542050000 CLAMPCLAMP
-
200025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
2162113020100 HOLL. SCREW M10X1X19.5HOLL. SCREW M10X1X19.5
-
220926060000 STOP NUT M6 DIN6926 A2-70STOP NUT M6 DIN6926 A2-70
-
230025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
240603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2554813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
-
2660111094000 CLIP 5/7 MMCLIP 5/7 MM
-
2760113146000 SUPPORT FOR BRAKE HOSE M5SUPPORT FOR BRAKE HOSE M5
-
280025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
290934050003 HEXAGON NUT DIN0934-M 5HEXAGON NUT DIN0934-M 5
-
300024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
3176542001000 BRAKE HOSE REAR CALIPERBRAKE HOSE REAR CALIPER
-
9900062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
