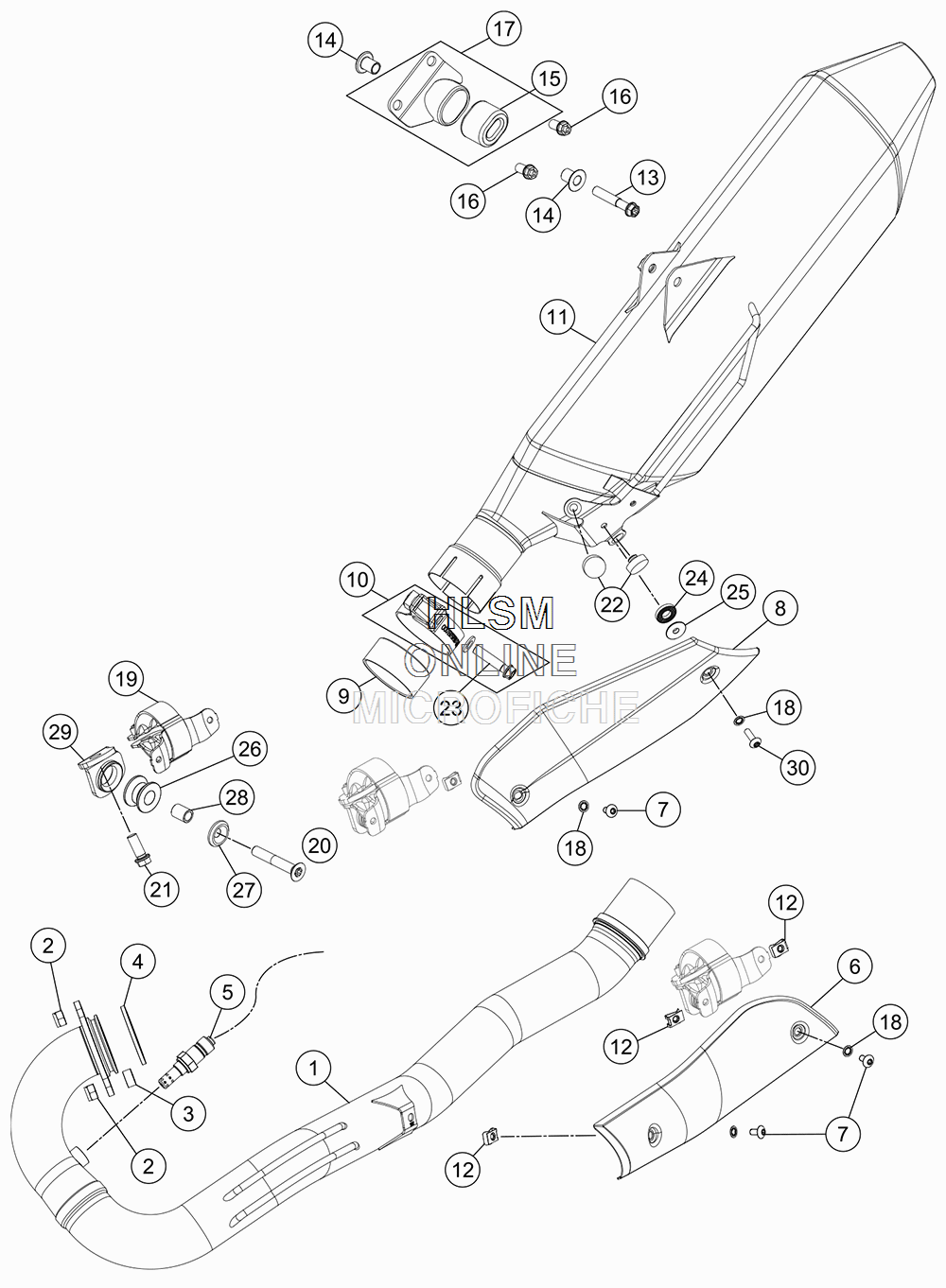

EXHAUST SYSTEM для Ktm 690 ENDURO R - 2018 года выпуска
-
№АртикулНазвание
-
176505007100 MANIFOLD CPL.MANIFOLD CPL.
-
251010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
361005009000 SPACER BUSH. 8,5X15X7,5SPACER BUSH. 8,5X15X7,5
-
461005005000 EXHAUST GASKETEXHAUST GASKET
-
575041090100 LAMBDA SENSORLAMBDA SENSOR
-
676505090010 HEAT SHIELD EXHAUST MANIFOLDHEAT SHIELD EXHAUST MANIFOLD
-
778105081010 SCREW TORX M5X10SCREW TORX M5X10
-
876505090020 HEAT SHIELD SILENCERHEAT SHIELD SILENCER
-
958605005000 GRAPHIT RING 55X50X25GRAPHIT RING 55X50X25
-
1076505051000 CLAMP FOR SILENCER 57,4MMCLAMP FOR SILENCER 57,4MM
-
1176505082200 SILENCER USASILENCER USA
-
1269008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
130025080456 HH COLLAR SCREW M8X45HH COLLAR SCREW M8X45
-
1460305069000 BUSHINGBUSHING
-
1561305068000 DAMPING RUBBERDAMPING RUBBER
-
160025080166 HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
1776505084100 HOLDER SILENCER CPL.HOLDER SILENCER CPL.
-
180797050000 TOOTH LOCK WASHER DIN6797-JTOOTH LOCK WASHER DIN6797-J
-
1976505007025 CLAMP WELD ASSEMBLYCLAMP WELD ASSEMBLY
-
200019080506 COUN.-SUNK SCREW M8X50 ISA10.9COUN.-SUNK SCREW M8X50 ISA10.9
-
210025080206 HH COLLAR SCREW M8X20HH COLLAR SCREW M8X20
-
2254308042000 RUBBER BUFFERRUBBER BUFFER
-
230025080356 HH COLLAR SCREW M8X35HH COLLAR SCREW M8X35
-
2475036052010 DECOUPLING ELEMENTDECOUPLING ELEMENT
-
2576505069000 BUSH 5.5X9X19X3.5BUSH 5.5X9X19X3.5
-
2654305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
2762603061000 SPECIAL WASHER 8X24 ALU H=4,2SPECIAL WASHER 8X24 ALU H=4,2
-
2856505069000 SPACER BUSHING 8,4X12X16SPACER BUSHING 8,4X12X16
-
2976505007027 EXHAUST SUPPORTEXHAUST SUPPORT
-
3058605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
