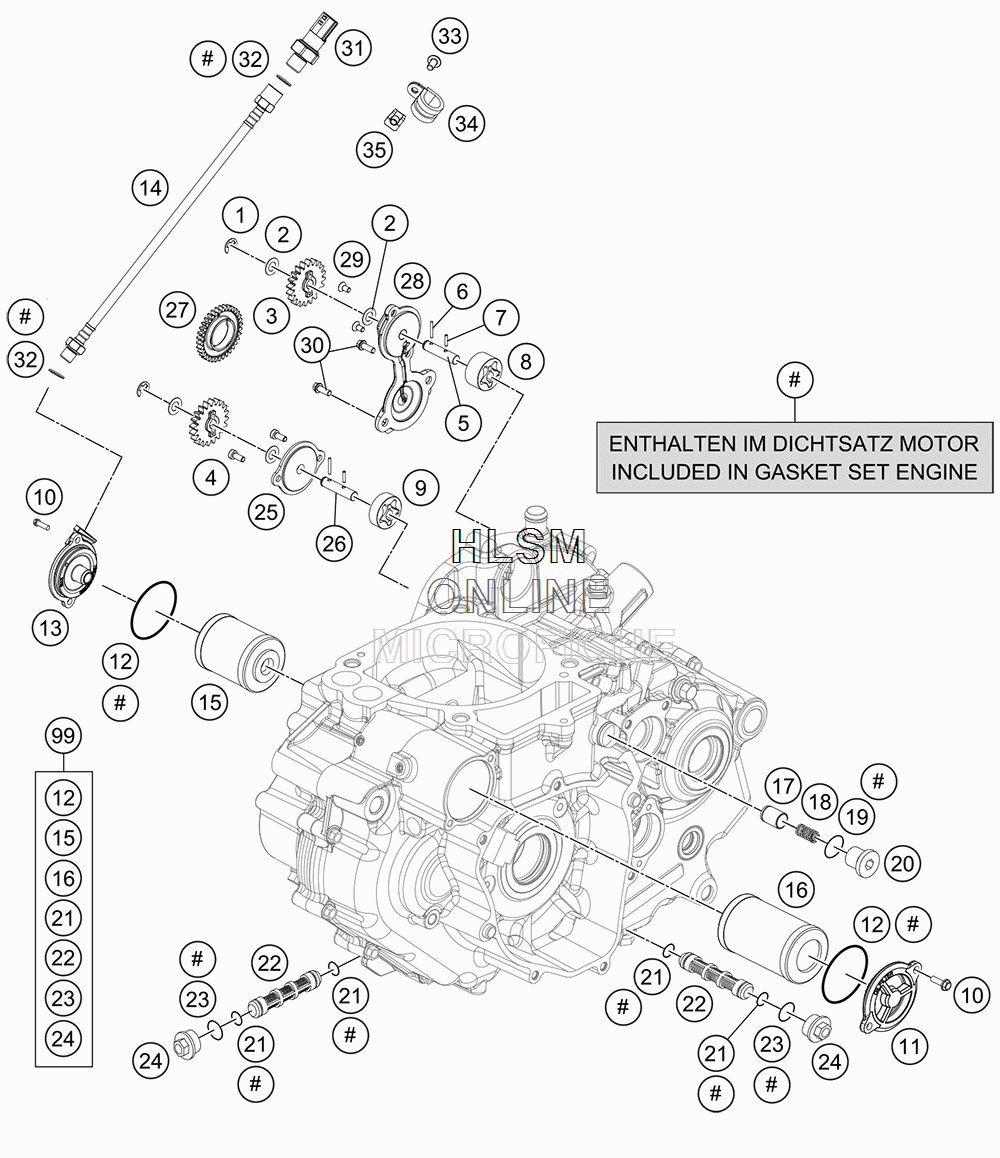

LUBRICATING SYSTEM для Ktm 690 ENDURO R - 2018 года выпуска
-
№АртикулНазвание
-
10799060000 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
258038007755 STOP DISK 8,1 X 15 X 0,5STOP DISK 8,1 X 15 X 0,5
-
375038001020 OIL PUMP GEAR 20-TOIL PUMP GEAR 20-T
-
407984050100 AH SCREW DIN7984 M5X10 A2AH SCREW DIN7984 M5X10 A2
-
575038002000 OIL PUMP SHAFTOIL PUMP SHAFT
-
60402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8NEEDLEROL.DIN5402 NRA 2,5X19,8
-
70402251180 NEEDLE ROLLER DIN5402 2,5X11,8NEEDLE ROLLER DIN5402 2,5X11,8
-
877038011100 OIL PUMP ROTOR COMPL. 15MMOIL PUMP ROTOR COMPL. 15MM
-
959038011110 OIL PUMP ROTOR COMPL. 10MMOIL PUMP ROTOR COMPL. 10MM
-
100025050166 HH COLLAR SCREW M5X16HH COLLAR SCREW M5X16
-
1175038041200 OILFILTER CAPOILFILTER CAP
-
1207700390261 O-RING 39,34X2,62O-RING 39,34X2,62
-
1376038041000 OILFILTER COVEROILFILTER COVER
-
1476538034000 OIL PIPEOIL PIPE
-
1575038046100 OIL FILTER SHORTOIL FILTER SHORT
-
1658038005100 OIL FILTER LONGOIL FILTER LONG
-
1758038028000 VALVE PISTON D=10MMVALVE PISTON D=10MM
-
1858538023000 OIL PRES.SPRING 5 BAR RED 2001OIL PRES.SPRING 5 BAR RED 2001
-
1958038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
200908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
2107701250151 O-RING 12,5X1,5 VITON V75O-RING 12,5X1,5 VITON V75
-
2259038016100 OIL SCREENOIL SCREEN
-
230770020170 O-RING 17,17X1,78 GLOO-RING 17,17X1,78 GLO
-
2459038017100 PLUG M20X1,5 WS=13PLUG M20X1,5 WS=13
-
2575038003000 OIL PUMP COVEROIL PUMP COVER
-
2675038004000 OIL PUMP SHAFTOIL PUMP SHAFT
-
2775032050001 OIL PUMP DRIVE WHEELOIL PUMP DRIVE WHEEL
-
2876038003000 OIL PUMP COVEROIL PUMP COVER
-
290019050163S INT. TORX FLAT HEAD M5X16 8.8INT. TORX FLAT HEAD M5X16 8.8
-
300025060166S HH COLLAR SCREW M6X16 ISA 30HH COLLAR SCREW M6X16 ISA 30
-
3161238091000 OIL PRESSURE SWITCH "BITRON"OIL PRESSURE SWITCH "BITRON"
-
320603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
3358605083014 SCREW M5X14 TORX 25SCREW M5X14 TORX 25
-
3449007439000 CLAMP RSGU 15/12CLAMP RSGU 15/12
-
3569008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
9975038046110 OILFILTER SERVICEKIT 690OILFILTER SERVICEKIT 690
