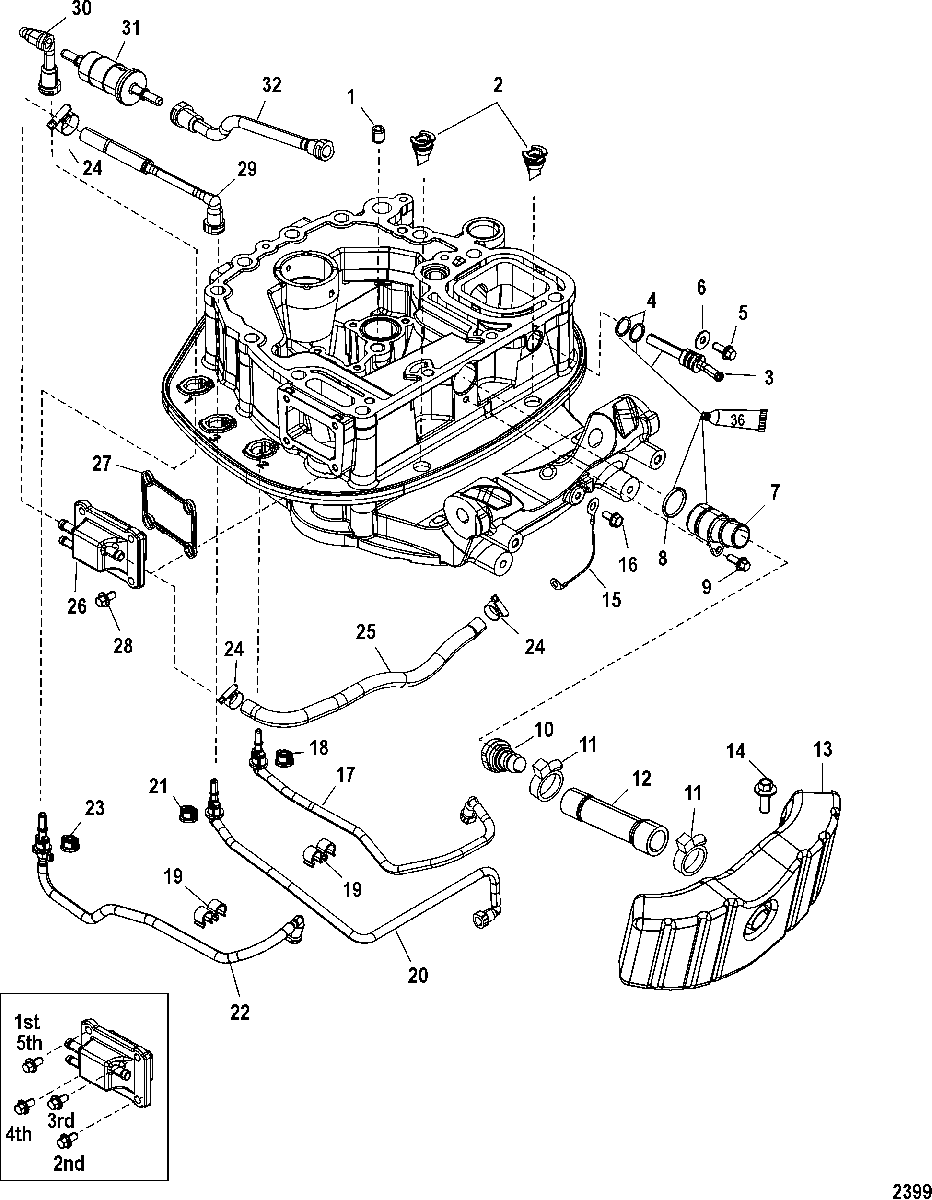

Adaptor Plate Hose Routings для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
117-884474001 PIN, Dowel (12 mm) (12MM)PIN, Dowel (12 mm) (12MM)
-
2888819002 DRAIN, CowlDRAIN, Cowl
-
322-888461A01 FITTING KITFITTING KIT
-
425-892446 O-RING, 14 X 1.78 MMO-RING, 14 X 1.78 MM
-
510-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
612-4002316 WASHERWASHER
-
722-889792A01 FITTING KIT, Idle ExhaustFITTING KIT, Idle Exhaust
-
825-889828 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
910-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
1022-889846 FITTINGFITTING
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1232-888981001 HOSE, Idle ExhaustHOSE, Idle Exhaust
-
13892384T PLENUM, ExhaustPLENUM, Exhaust
-
1410-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1588238A21 CABLE ASSEMBLYCABLE ASSEMBLY
-
1610-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
1732-8M0087120 HOSE, Manifold Reference-LowerHOSE, Manifold Reference-Lower
-
1825-884546 GROMMETGROMMET
-
19888523001 CLIPCLIP
-
2032-8M0087106 HOSE, Water In-LowerHOSE, Water In-Lower
-
2125-884546 GROMMETGROMMET
-
2232-8M0087116 HOSE, FSM-OutHOSE, FSM-Out
-
2325-884546 GROMMETGROMMET
-
2454-815504104 CLAMP, Worm GearCLAMP, Worm Gear
-
2532-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 21 InchesTUBING, (.312) (70.00 Inches Bulk), Cut to 21 Inches
-
26892562T01 HOUSING, ManifoldHOUSING, Manifold
-
27892117 SEALSEAL
-
2810-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
2932-887756 HOSE, Water In-UpperHOSE, Water In-Upper
-
3032-8M0087104 HOSE, Hi-Pressure Filter (PRE)HOSE, Hi-Pressure Filter (PRE)
-
3135-879885Q FILTER, FuelFILTER, Fuel
-
3232-8M0087122 HOSE, Hi-Pressure Filter-To Fuel Rail (POST)HOSE, Hi-Pressure Filter-To Fuel Rail (POST)
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247R06 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
