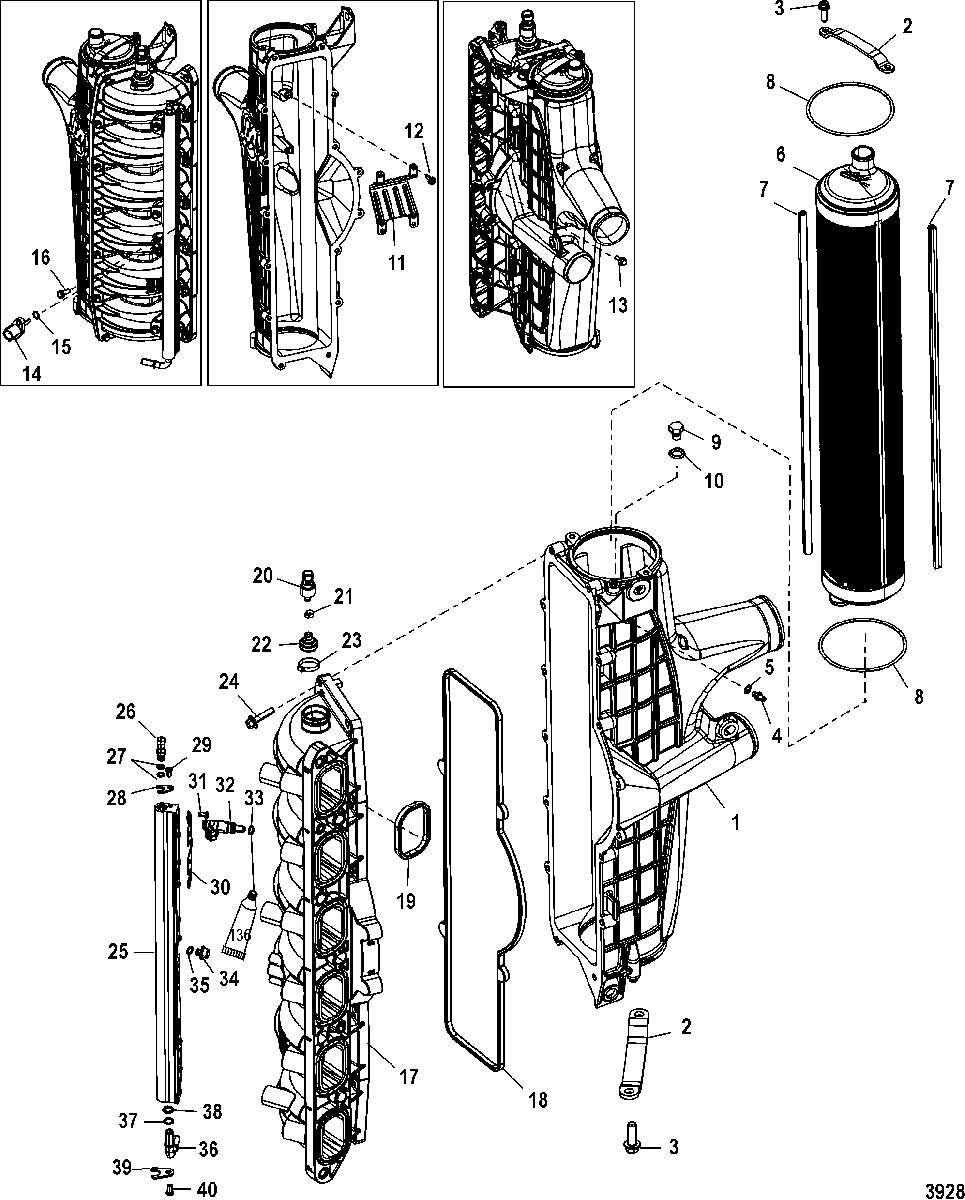

Charge Cooler/Intake Manfifold для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
08M0131233 IAFM, Intergrated Air/Fuel Module
SN# 1B056568 & BelowIAFM, Intergrated Air/Fuel Module
SN# 1B056568 & Below -
08M0131233 IAFM, Intergrated Air/Fuel Module
SN# 1B056569 & UpIAFM, Intergrated Air/Fuel Module
SN# 1B056569 & Up -
18M0132388 CAC ASSEMBLYCAC ASSEMBLY
-
2895032 STRAPSTRAP
-
310-8M0103805 SCREW, (M6 x 18)SCREW, (M6 x 18)
-
422-8M0039993 FITTINGFITTING
-
5NSS NOT SOLD SEPARATE, O RING (Part of 895031 Kit)NOT SOLD SEPARATE, O RING (Part of 895031 Kit)
-
6895030A01 STACK ASSEMBLYSTACK ASSEMBLY
-
7895031 SEALSEAL
-
8NSS NOT SOLD SEPARATE, O RING (Part of 895031 Kit)NOT SOLD SEPARATE, O RING (Part of 895031 Kit)
-
919-8M0048079 FITTINGFITTING
-
10NSS NOT SOLD SEPARATE, O RING (Part of 895031 Kit)NOT SOLD SEPARATE, O RING (Part of 895031 Kit)
-
11895035 PLATEPLATE
-
1210-895337 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1310-895053 SCREW, (M6 x 15)SCREW, (M6 x 15)
-
14891663001 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1525-892317001 O-RINGO-RING
-
1610-895054 SCREW, (M4 x 16 MM)SCREW, (M4 x 16 MM)
-
178M0083678 MANIFOLD ASSEMBLY, IntakeMANIFOLD ASSEMBLY, Intake
-
18895019 SEALSEAL
-
19895020 SEALSEAL
-
208M6000639 SENSORSENSOR
-
2154-13791 CLAMP, (15.7 mm), Map Sensor to BootCLAMP, (15.7 mm), Map Sensor to Boot
-
22892952500 BOOTBOOT
-
2354-888988001 CLAMP, (36.1 mm)CLAMP, (36.1 mm)
-
2410-8M0103807 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
258M0129411 FUEL RAIL KITFUEL RAIL KIT
-
26895028A01 VALVE, SchraderVALVE, Schrader
-
2725-895056 O-RINGO-RING
-
28895026 BRACKETBRACKET
-
2910-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
30895024 BRACKETBRACKET
-
3110-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
328M0041571 INJECTOR, FuelINJECTOR, Fuel
-
3325-851889 O-RINGO-RING
-
34895025 DAMPERDAMPER
-
3525-851889 O-RINGO-RING
-
3632-895029A01 TUBE KIT, Fuel InletTUBE KIT, Fuel Inlet
-
3712-895055 WASHERWASHER
-
3825-895057 O-RINGO-RING
-
39895027 BRACKETBRACKET
-
4010-895051 SCREW, (M5 x 10)SCREW, (M5 x 10)
