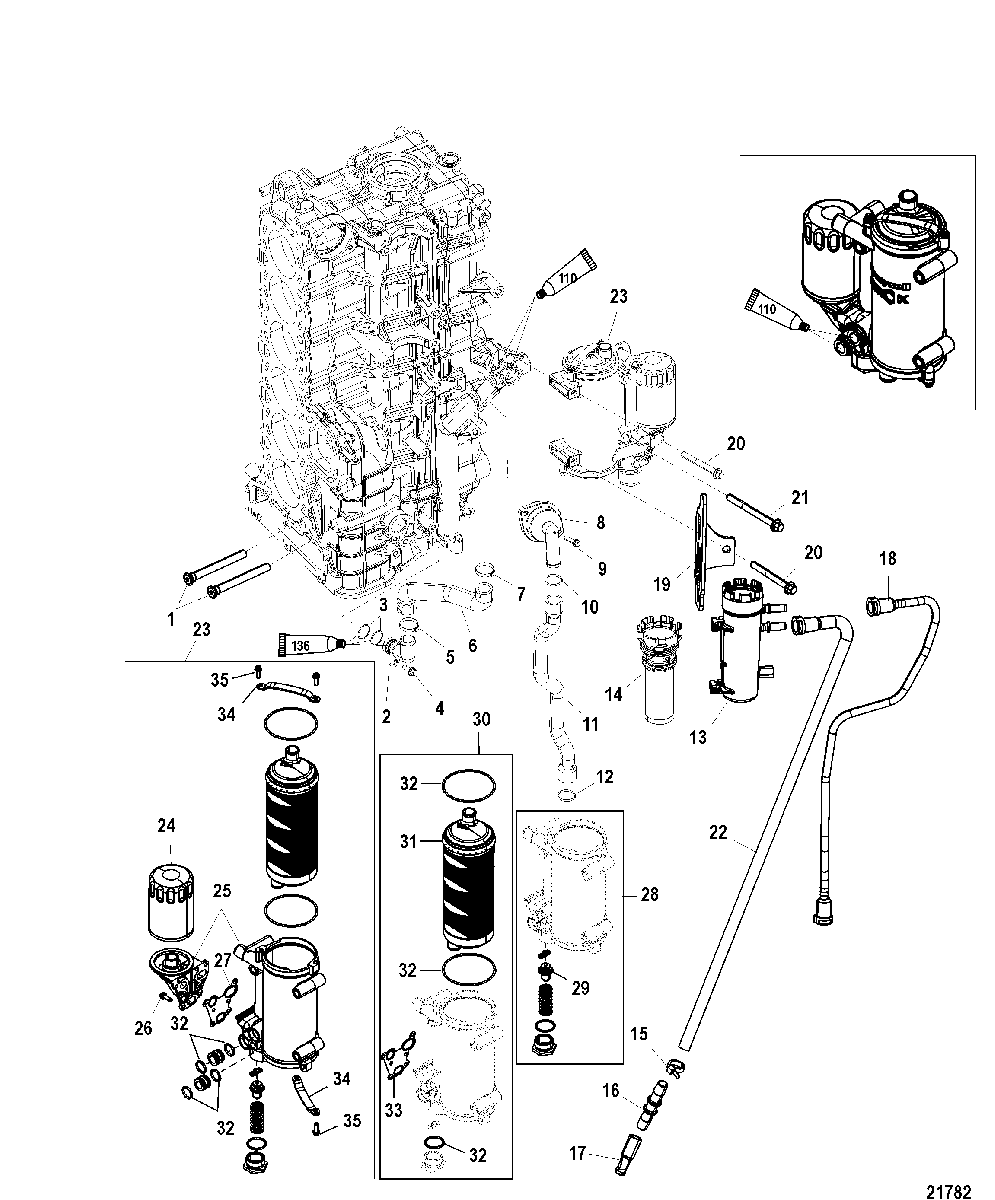

Starboard Cylinder Block/Oil Cooler для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
1892404A05 DEFLECTOR ASSEMBLY, WaterDEFLECTOR ASSEMBLY, Water
-
222-885518A02 FITTING ASSEMBLYFITTING ASSEMBLY
-
325-62701 O-RINGO-RING
-
410-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
554-888988011 CLAMP, (38.1 mm)CLAMP, (38.1 mm)
-
632-888930003 HOSEHOSE
-
754-888988008 CLAMP, (34.6 mm)CLAMP, (34.6 mm)
-
8892864T04 THERMOSTAT ASSEMBLYTHERMOSTAT ASSEMBLY
-
910-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
1054-888988001 CLAMP, (36.1 mm)CLAMP, (36.1 mm)
-
1132-892865 HOSE, ThermostatHOSE, Thermostat
-
1254-888988007 CLAMP, (42.5 mm)CLAMP, (42.5 mm)
-
1335-8M0062950 FILTER, FuelFILTER, Fuel
-
1435-8M0122423 FILTER, FuelFILTER, Fuel
-
1554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1622-892356 CONNECTORCONNECTOR
-
1719-863156 GRAB TABGRAB TAB
-
1832-8M0012214 HOSE, Fuel to Lift PumpHOSE, Fuel to Lift Pump
-
19892147001 BRACKETBRACKET
-
2010-8M0103824 SCREW, (M10 x 85)SCREW, (M10 x 85)
-
2110-8M0103820 SCREW, (M10 x 105)SCREW, (M10 x 105)
-
2232-8M0045343 HOSE, Fuel InletHOSE, Fuel Inlet
-
238M0132390 MODULE ASSEMBLY, Intergrated Oil - CompleteMODULE ASSEMBLY, Intergrated Oil - Complete
-
2435-877769K01 FILTER, OilFILTER, Oil
-
258M0046694 HOUSING ASSEMBLY, Intergrated Oil ModuleHOUSING ASSEMBLY, Intergrated Oil Module
-
2610-8M0103805 SCREW, (M6 x 18)SCREW, (M6 x 18)
-
2727-8M0034568 GASKETGASKET
-
28880640A06 THERMOSTAT/GUIDE KITTHERMOSTAT/GUIDE KIT
-
29880640508 THERMOSTATTHERMOSTAT
-
30880640T07 TUBESTACK REBUILD KITTUBESTACK REBUILD KIT
-
318M0132390 TUBESTACK ASSEMBLYTUBESTACK ASSEMBLY
-
3225-8M0071635 O-RING KITO-RING KIT
-
3327-8M0034568 GASKETGASKET
-
34895032 STRAPSTRAP
-
3510-8M0103805 SCREW, (M6 x 18)SCREW, (M6 x 18)
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247R06 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
