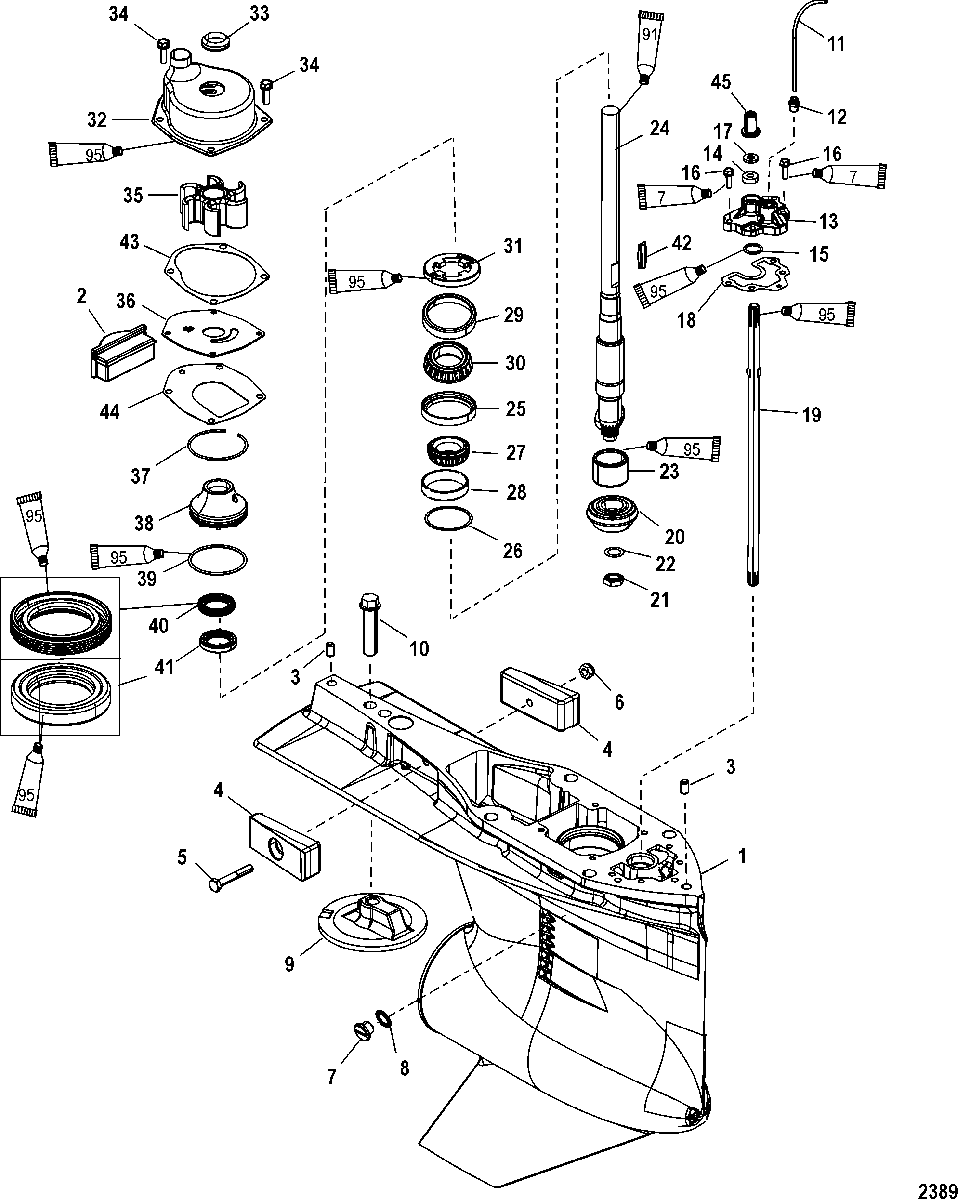

Gear Housing(Driveshaft)(Standard/Counter Rotation) для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
01600-880686T13 GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)GEAR HOUSING ASSEMBLY, Complete
(Standard-Long) -
01600-880686T14 GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long) -
01600-880686T16 GEAR HOUSING ASSEMBLY, Complete
(Standard-XX-Long)GEAR HOUSING ASSEMBLY, Complete
(Standard-XX-Long) -
01600-880686T15 GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-X-Long)GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-X-Long) -
01600-880686T17 GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-XX-Long)GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-XX-Long) -
11600-8M0056631 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
2821526001 FILLER BLOCKFILLER BLOCK
-
317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
497-826134Q ANODEANODE
-
510-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
710-79953A04 PLUG ASSEMBLY, (.375-16 x .250)PLUG ASSEMBLY, (.375-16 x .250)
-
826-830749 SEALSEAL
-
997-76214T5 ANODE KIT
(Mercury)ANODE KIT
(Mercury) -
997-76214Q5 ANODE KIT
(Quicksilver)ANODE KIT
(Quicksilver) -
1010-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
1132-85944975 TUBING, (72.00 Inches Bulk), Cut to 7 Inches
(Long)TUBING, (72.00 Inches Bulk), Cut to 7 Inches
(Long) -
1132-85944975 TUBING, (72.00 Inches Bulk), Cut to 12 Inches
(X-Long)TUBING, (72.00 Inches Bulk), Cut to 12 Inches
(X-Long) -
1132-85944975 TUBING, (72.00 Inches Bulk), Cut to 17 Inches
(XX-Long)TUBING, (72.00 Inches Bulk), Cut to 17 Inches
(XX-Long) -
1222-881866 FITTINGFITTING
-
138M0047129 COVER ASSEMBLYCOVER ASSEMBLY
-
1426-8164641 SEAL, OilSEAL, Oil
-
1525-896522 O-RING, (799 x .103)O-RING, (799 x .103)
-
1610-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1712-77674 WASHERWASHER
-
1827-880729 GASKETGASKET
-
19824145 SHIFT SHAFTSHIFT SHAFT
-
20NSS NOT SOLD SEPARATE, Pinion Gear 13 Teeth
(Part of 43-892595A02)NOT SOLD SEPARATE, Pinion Gear 13 Teeth
(Part of 43-892595A02) -
2111-35921 NUT, (.625-18)NUT, (.625-18)
-
2212-92721 WASHERWASHER
-
2331-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
2445-888572 DRIVESHAFT
(Long)DRIVESHAFT
(Long) -
2445-888573 DRIVESHAFT
(X-Long)DRIVESHAFT
(X-Long) -
2445-888574 DRIVESHAFT
(XX-Long)DRIVESHAFT
(XX-Long) -
2515-884327A02 SHIM/BEARING ASSEMBLYSHIM/BEARING ASSEMBLY
-
2615-8M0063268 SHIM ASSEMBLYSHIM ASSEMBLY
-
27NSS NOT SOLD SEPARATE, Roller Bearing AssemblyNOT SOLD SEPARATE, Roller Bearing Assembly
-
28NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
29NSS NOT SOLD SEPARATE, Roller Bearing AssemblyNOT SOLD SEPARATE, Roller Bearing Assembly
-
30NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
318245191 RETAINERRETAINER
-
32817275A09 HOUSING, Water Pump-CompleteHOUSING, Water Pump-Complete
-
3326-816575A2 FACE SEAL
SN# 1B192803 & BelowFACE SEAL
SN# 1B192803 & Below -
3326-861415A1 SEAL KIT
SN# 1B192804 & UpSEAL KIT
SN# 1B192804 & Up -
3410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
3547-43026T2 IMPELLERIMPELLER
-
368172761 FACEPLATEFACEPLATE
-
3753-880719 RING, RetainingRING, Retaining
-
388M0007131 CARRIER ASSEMBLY, Oil SealCARRIER ASSEMBLY, Oil Seal
-
3925-896523 O-RING, (2.175 x .103)O-RING, (2.175 x .103)
-
4026-888920 SEAL, OilSEAL, Oil
-
4126-888921 SEAL, OilSEAL, Oil
-
4228-8M0032833 KEYKEY
-
4327-8172771 GASKETGASKET
-
4427-430331 GASKETGASKET
-
4543585 COUPLINGCOUPLING
-
-26-830749A01 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
-
-817275A08 REPAIR KIT, Water Pump-UpperREPAIR KIT, Water Pump-Upper
