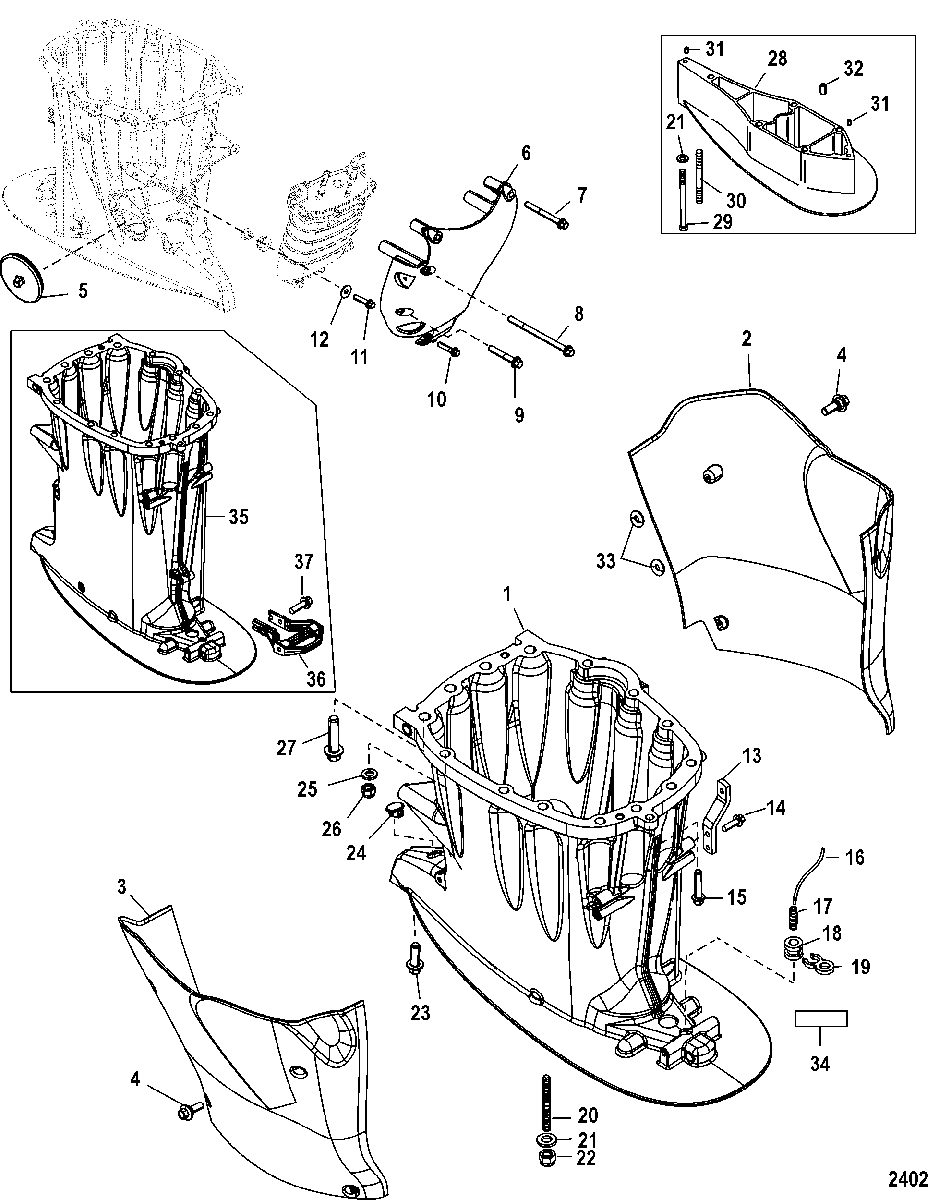

Driveshaft Housing для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
11500-8M0113286 HOUSING, Driveshaft
(Long)HOUSING, Driveshaft
(Long) -
2885365T03 CHAP ASSEMBLY, Lower-Port
(Long)CHAP ASSEMBLY, Lower-Port
(Long) -
2885363T04 CHAP ASSEMBLY, Lower-Port
(X-Long/XX-Long)CHAP ASSEMBLY, Lower-Port
(X-Long/XX-Long) -
3885365T03 CHAP ASSEMBLY, Lower-Starboard
(Long)CHAP ASSEMBLY, Lower-Starboard
(Long) -
3885363T04 CHAP ASSEMBLY, Lower-Starboard
(X-Long/XX-Long)CHAP ASSEMBLY, Lower-Starboard
(X-Long/XX-Long) -
410-892073002 SCREWSCREW
-
525-889568001 GROMMETGROMMET
-
6889656T01 SHROUD, Vapor SeparatorSHROUD, Vapor Separator
-
710-8M0103818 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
810-8M0103812 SCREW, (M8 x 120)SCREW, (M8 x 120)
-
910-8M0103816 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1010-8M0103815 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
1110-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
1212-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
13897784A01 BRACKET KIT, Upper ChapBRACKET KIT, Upper Chap
-
1410-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
1510-8M0103813 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1632-85944975 TUBING, (72.00 Inches Bulk), Cut to 26 InchesTUBING, (72.00 Inches Bulk), Cut to 26 Inches
-
1722-859448T FITTINGFITTING
-
1825-821555001 GROMMETGROMMET
-
19889831 RETAINERRETAINER
-
2016-8M0070951 STUD, (M12 x 52)
(LONG/XL)STUD, (M12 x 52)
(LONG/XL) -
2112-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
2211-896895 NUT, (M12 x 1.75)NUT, (M12 x 1.75)
-
2310-8M0102995 SCREW, (M12 x 35 MM)
(Long/X-Long)SCREW, (M12 x 35 MM)
(Long/X-Long) -
2419-824928001 PLUG, RubberPLUG, Rubber
-
2512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
2611-884412 NUTNUT
-
2710-8M0103825 SCREW, (M12 x 45)SCREW, (M12 x 45)
-
288M0105088 SPACER
(XX-Long)SPACER
(XX-Long) -
2910-857137 SCREW, (M12 x 160)
(XX-Long)SCREW, (M12 x 160)
(XX-Long) -
3016-8M0008047 STUD, (M12 x 179)
(XX-Long)STUD, (M12 x 179)
(XX-Long) -
3117-43044 PIN, Dowel - Without Hole (.375 x .625)
(XX-Long)PIN, Dowel - Without Hole (.375 x .625)
(XX-Long) -
3223-855623 BUSHING
(XX-Long)BUSHING
(XX-Long) -
3354-898033 O-RINGO-RING
-
34NSS NOT SOLD SEPARATE, Decal-Oil DrainNOT SOLD SEPARATE, Decal-Oil Drain
-
351500-8M0113287 HOUSING, Driveshaft
(X-Long/XX-Long)HOUSING, Driveshaft
(X-Long/XX-Long) -
36891966006 BRACKET, Cowl
(X-Long/XX-Long)BRACKET, Cowl
(X-Long/XX-Long) -
3710-8M0103806 SCREW, (M6 x 20 MM) Stainless Steel
(X-Long/XX-Long)SCREW, (M6 x 20 MM) Stainless Steel
(X-Long/XX-Long) -
-61-895247R06 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
