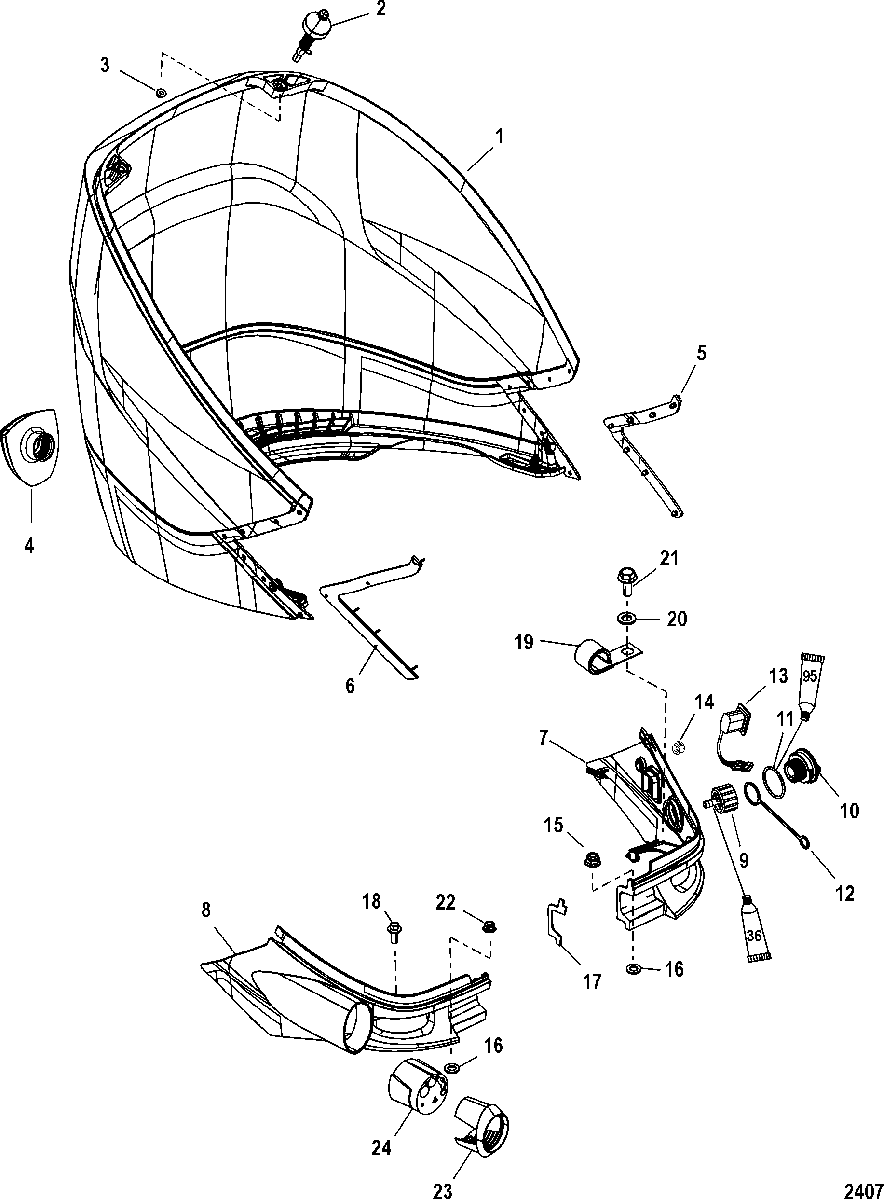

Rear Cowl для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
1100-885358A04 COWL, Rear
(This part is NLA - Replace with 100-885358A03) SN# 1B119484 & BelowCOWL, Rear
(This part is NLA - Replace with 100-885358A03) SN# 1B119484 & Below -
1100-885358A04 REAR COWL KIT, Up-Grade Kit (Replaces 100-885358T01s)
(Includes Port and Starboard Air Intakes) SN# 1B119484 & BelowREAR COWL KIT, Up-Grade Kit (Replaces 100-885358T01s)
(Includes Port and Starboard Air Intakes) SN# 1B119484 & Below -
1100-8M0100175 COWL, Rear
SN# 1B119485 & UpCOWL, Rear
SN# 1B119485 & Up -
217-888961A01 PIN ASSEMBLYPIN ASSEMBLY
-
311-892233 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
4885360 IDLE RELIEFIDLE RELIEF
-
5893343001 SEAL, PortSEAL, Port
-
6893344001 SEAL, StarboardSEAL, Starboard
-
7885356T INTAKE, Air - Front Cowl - Port
SN# 1B119484 & BelowINTAKE, Air - Front Cowl - Port
SN# 1B119484 & Below -
7100-8M0100172 INTAKE, Air - Port
SN# 1B119485 & UpINTAKE, Air - Port
SN# 1B119485 & Up -
8885357T INTAKE, Air - Front Cowl - Starboard
SN# 1B119484 & BelowINTAKE, Air - Front Cowl - Starboard
SN# 1B119484 & Below -
8100-8M0100172 INTAKE, Air - Starboard
SN# 1B119485 & UpINTAKE, Air - Starboard
SN# 1B119485 & Up -
922-885361A01 FITTING ASSEMBLY, FlushFITTING ASSEMBLY, Flush
-
1022-888958001 PLUGPLUG
-
1125-888957 O-RINGO-RING
-
12889823001 TETHERTETHER
-
1387-8M0042300 SWITCH, TrimSWITCH, Trim
-
1419-858768 PLUGPLUG
-
1511-892233 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1612-4002316 WASHERWASHER
-
1727-892315 GASKETGASKET
-
1810-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1954-858951A01 CLAMP KITCLAMP KIT
-
2012-4002316 WASHERWASHER
-
2110-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2211-892233 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
238M0043519 ADAPTORADAPTOR
-
2425-897169 GROMMETGROMMET
