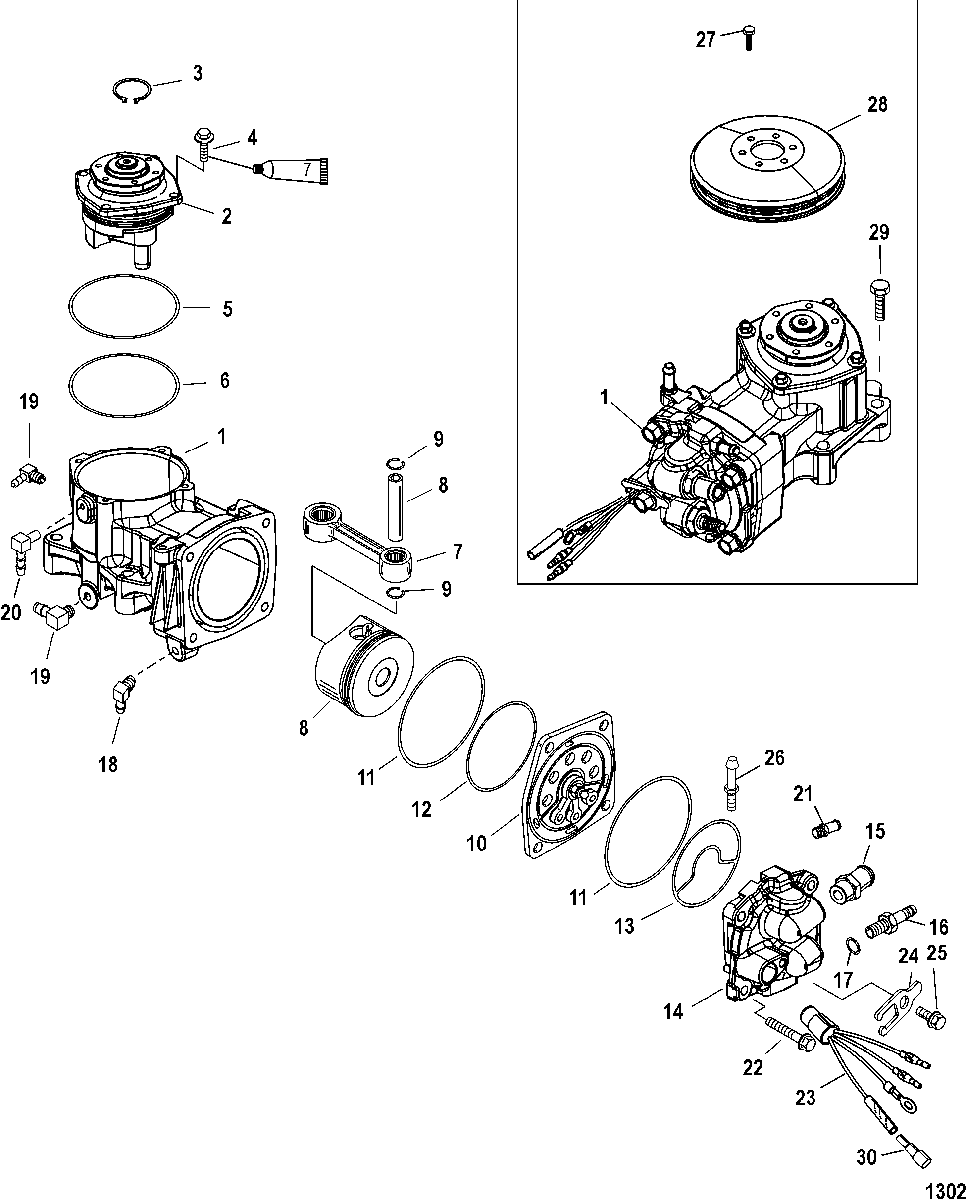

Air Compressor Components для Mariner - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701
-
№АртикулНазвание
-
18M0060052 COMPRESSOR ASSEMBLY, Air
SN# 0T800999 & BelowCOMPRESSOR ASSEMBLY, Air
SN# 0T800999 & Below -
18M0060052 COMPRESSOR ASSEMBLY, Air
SN# 0T801000 THRU 0T971971COMPRESSOR ASSEMBLY, Air
SN# 0T801000 THRU 0T971971 -
18M0060052 COMPRESSOR ASSEMBLY, Air
SN# 0T971972 & UpCOMPRESSOR ASSEMBLY, Air
SN# 0T971972 & Up -
21100-8M0050792 END CAP ASSEMBLY
SN# 0T971971 & BelowEND CAP ASSEMBLY
SN# 0T971971 & Below -
21100-8M0050792 END CAP ASSEMBLY
SN# 0T971972 & UpEND CAP ASSEMBLY
SN# 0T971972 & Up -
3NSS NOT SOLD SEPARATE, Snap RingNOT SOLD SEPARATE, Snap Ring
-
410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
525-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
625-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
7653-833146T06 CONNECTING ROD ASSEMBLY
SN# 0T800999 & BelowCONNECTING ROD ASSEMBLY
SN# 0T800999 & Below -
7653-833146T06 CONNECTING ROD ASSEMBLY
SN# 0T801000 THRU 0T971971CONNECTING ROD ASSEMBLY
SN# 0T801000 THRU 0T971971 -
7653-833146T06 CONNECTING ROD ASSEMBLY
SN# 0T971972 & UpCONNECTING ROD ASSEMBLY
SN# 0T971972 & Up -
8NSS NOT SOLD SEPARATE, Piston assemblyNOT SOLD SEPARATE, Piston assembly
-
953-8348101 RING, LockRING, Lock
-
10835088A10 REED PLATE ASSEMBLYREED PLATE ASSEMBLY
-
1125-67207 O-RING, (3.489 x .070)O-RING, (3.489 x .070)
-
1225-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
1326-828225 SEALSEAL
-
148M0073889 HEAD KIT, CompressorHEAD KIT, Compressor
-
1522-8812711 FITTINGFITTING
-
1622-856744 FITTINGFITTING
-
1725-831985 O-RING, (.468 x .078)O-RING, (.468 x .078)
-
1822-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
1921-428641 FITTING, Check ValveFITTING, Check Valve
-
2022-151331 FITTINGFITTING
-
2122-16604 FITTING, Straight (.125-27)FITTING, Straight (.125-27)
-
2210-82446035 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2313536A14 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
24137151 RETAINERRETAINER
-
2510-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
268215832 PIN, SpecialPIN, Special
-
2710-85593912 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
288328233 PULLEYPULLEY
-
2910-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
3013541 PLUG, MalePLUG, Male
-
-25-832804A03 O-RING KITO-RING KIT
