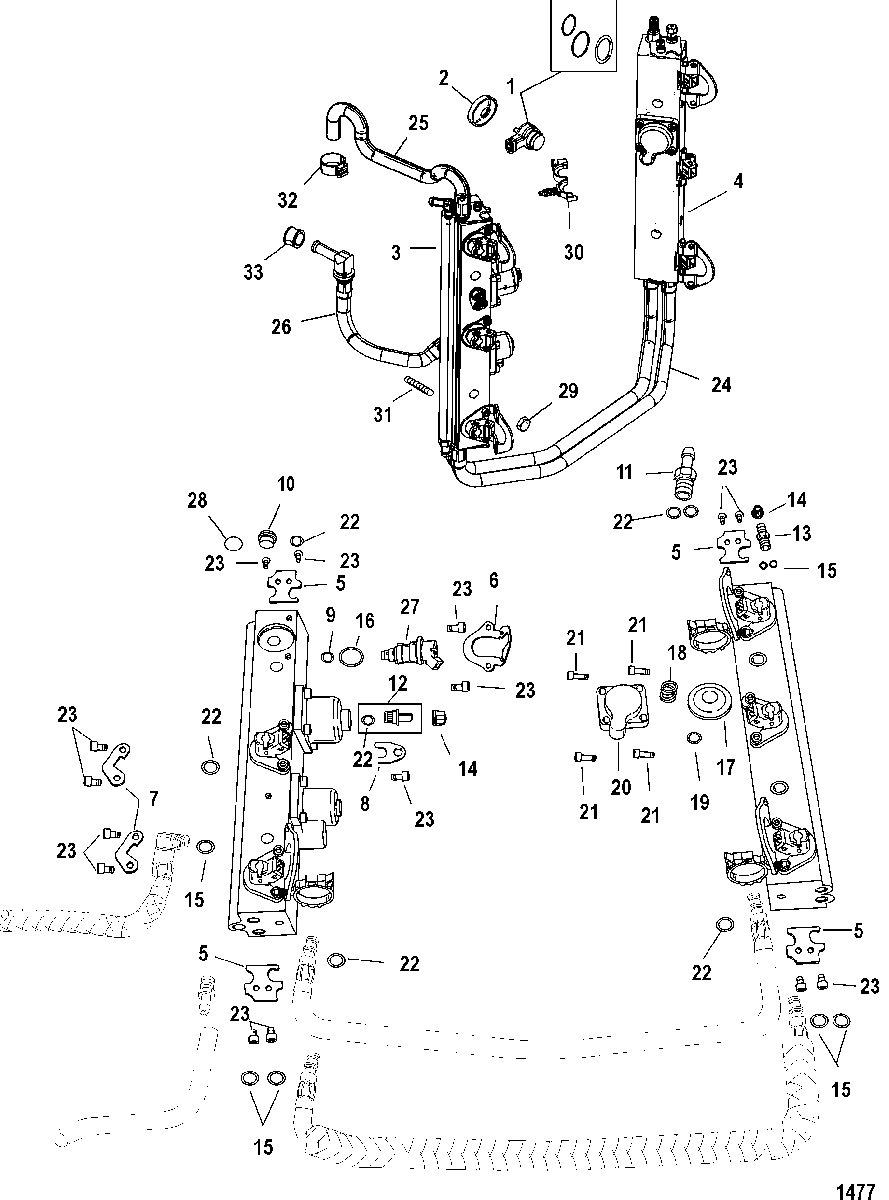

Fuel Rails для Mariner - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701
-
№АртикулНазвание
-
18M6001743 INJECTOR KIT, AirINJECTOR KIT, Air
-
-26-804875 SEAL KITSEAL KIT
-
212-828694A1 WASHER ASSEMBLY, CuppedWASHER ASSEMBLY, Cupped
-
-NSS NOT SOLD SEPARATE, Fuel Rail AssemblyNOT SOLD SEPARATE, Fuel Rail Assembly
-
3884429T16 FUEL RAIL (Port)FUEL RAIL (Port)
-
4884430T06 FUEL RAIL (Starboard)FUEL RAIL (Starboard)
-
554-804830 CLAMPCLAMP
-
654-8048311 CLAMP
SN# 1B226999 & BelowCLAMP
SN# 1B226999 & Below -
654-8048311 CLAMP
SN# 1B227000 & UpCLAMP
SN# 1B227000 & Up -
754-804832 CLAMPCLAMP
-
88M0041097 CLAMPCLAMP
-
925-804529 O-RING KITO-RING KIT
-
1019-804835 PLUGPLUG
-
1122-804836 FITTINGFITTING
-
12804837 VALVE ASSEMBLY, (.5 Inch Diameter)VALVE ASSEMBLY, (.5 Inch Diameter)
-
138M0047053 VALVE ASSEMBLY, (.375 Inch Diameter)VALVE ASSEMBLY, (.375 Inch Diameter)
-
1419-8M0046566 CAP
SN# 0T979999 & UpCAP
SN# 0T979999 & Up -
1419-8M0046566 CAP, Shrader Valve - Brass
SN# 0T980000 & UpCAP, Shrader Valve - Brass
SN# 0T980000 & Up -
1525-804840 O-RING KITO-RING KIT
-
1625-804530 O-RING KITO-RING KIT
-
17804533 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
1824-804534 SPRINGSPRING
-
1925-804536 O-RINGO-RING
-
20804535001 COVERCOVER
-
21804526 SCREW PACKAGE, (M5 x 16) (2 Per)SCREW PACKAGE, (M5 x 16) (2 Per)
-
22804532 O-RING KIT (16 per kit)O-RING KIT (16 per kit)
-
2310-8M0041100 SCREW PACKAGE, (M5 x 8) (2 Per)SCREW PACKAGE, (M5 x 8) (2 Per)
-
2432-8M6005520 HOSE, Fuel BalanceHOSE, Fuel Balance
-
258M6003283 HOSE, Fuel Supply, To Vapor SeparatorHOSE, Fuel Supply, To Vapor Separator
-
2632-8M6001363 HOSE, Fuel By PassHOSE, Fuel By Pass
-
27804528 INJECTOR, FuelINJECTOR, Fuel
-
28804532 SEAL
SN# 0T979999 & BelowSEAL
SN# 0T979999 & Below -
28804532 O-RING KIT
SN# 0T980000 & UpO-RING KIT
SN# 0T980000 & Up -
2911-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
3054-859376 CLIP, ConduitCLIP, Conduit
-
3116-8M0063255 STUD, (M10 x 91)STUD, (M10 x 91)
-
3254-856880 CLAMP, Hose (15.3)CLAMP, Hose (15.3)
-
3326-888852 SEAL, Fuel DirectorSEAL, Fuel Director
-
-877869A07 POWERHEAD ASSEMBLY
SN# 0T800999 & BelowPOWERHEAD ASSEMBLY
SN# 0T800999 & Below -
-877869A07 POWERHEAD ASSEMBLY
SN# 0T801000 & UpPOWERHEAD ASSEMBLY
SN# 0T801000 & Up
