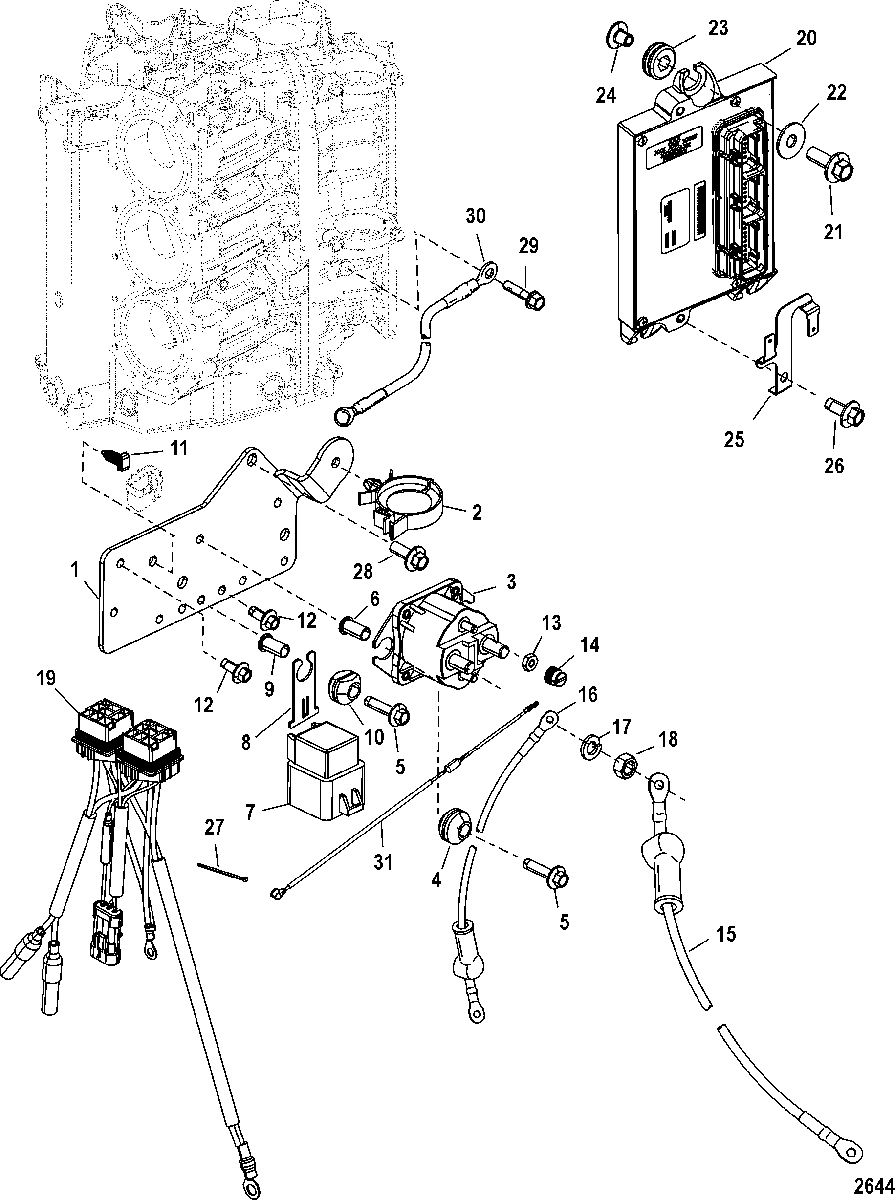

Solenoid Plate(Serial Number 0T980000 and Up) для Mariner - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701
-
№АртикулНазвание
-
1858366T2 PLATEPLATE
-
254-858755 CLIP, (1.00)CLIP, (1.00)
-
389-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
425-822179 GROMMETGROMMET
-
510-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
623-818968 BUSHINGBUSHING
-
7882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
8828102 BRACKETBRACKET
-
923-818968 BUSHINGBUSHING
-
1025-818967 GROMMETGROMMET
-
1154-828991T CLIPCLIP
-
1210-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1411-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
1584-88439A46 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
1684-882829A1 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
1713-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1811-68292 NUT, (.312-18)NUT, (.312-18)
-
1984-819514A22 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
2089790748T PCM, Propulsion Control Module
(200) SN# 1B226999 & BelowPCM, Propulsion Control Module
(200) SN# 1B226999 & Below -
2089790749T PCM, Propulsion Control Module
(200) SN# 1B227000 & UpPCM, Propulsion Control Module
(200) SN# 1B227000 & Up -
2089790751T PCM, Propulsion Control Module
(225) SN# 1B226999 & BelowPCM, Propulsion Control Module
(225) SN# 1B226999 & Below -
2089790752T PCM, Propulsion Control Module
(225) SN# 1B227000 & UpPCM, Propulsion Control Module
(225) SN# 1B227000 & Up -
2110-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2212-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2325-834985 GROMMETGROMMET
-
2423-856954 BUSHINGBUSHING
-
2554-891520001 CLIPCLIP
-
2610-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2810-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
2910-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
3084-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
3184-878231A6 HARNESS ASSEMBLY, Fuse - 100 AmpereHARNESS ASSEMBLY, Fuse - 100 Ampere
