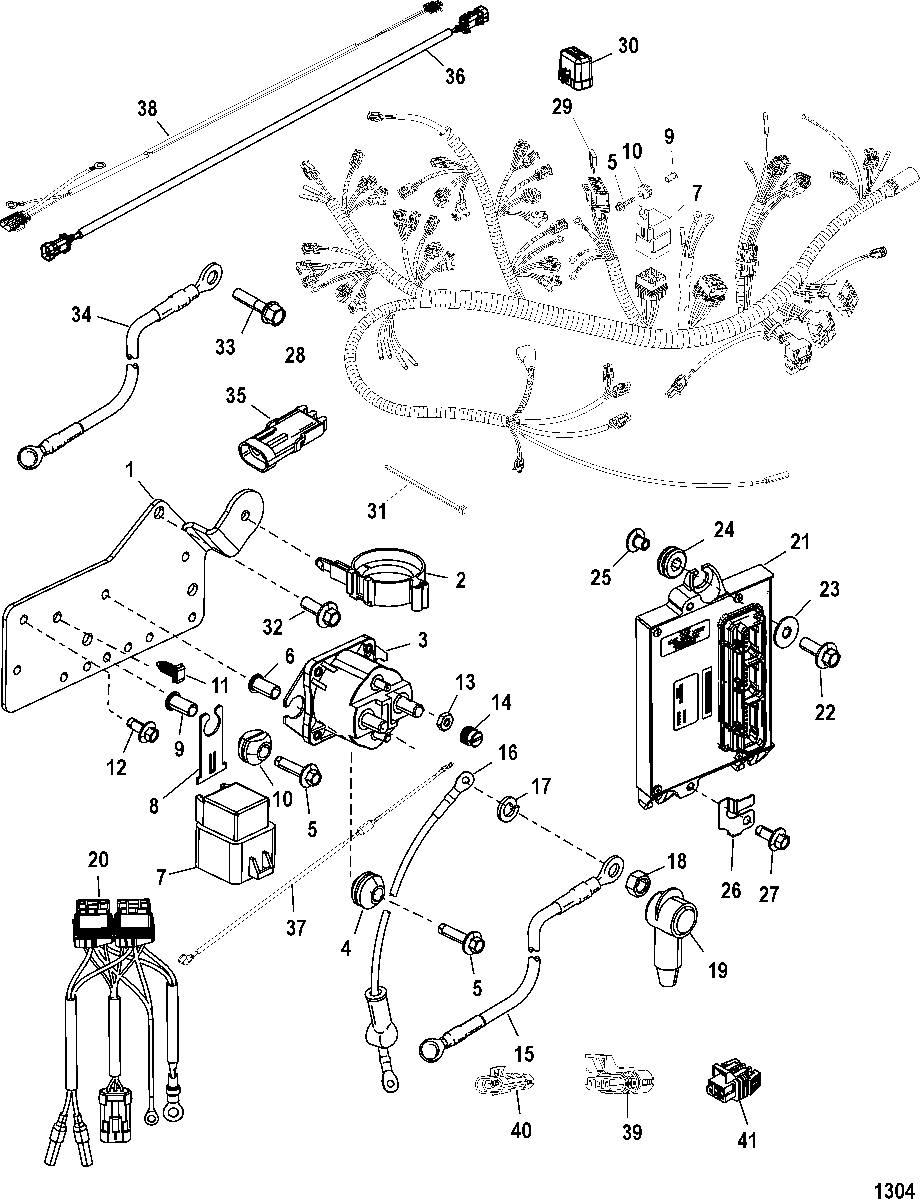

Solenoid Plate(Serial Number 0T979999 and Below) для Mariner - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701
-
№АртикулНазвание
-
1858366T2 PLATEPLATE
-
254-853947 CLIPCLIP
-
389-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
425-822179 GROMMETGROMMET
-
510-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
623-818968 BUSHINGBUSHING
-
7882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
8828102 BRACKETBRACKET
-
923-818968 BUSHINGBUSHING
-
1025-818967 GROMMETGROMMET
-
1154-828991T CLIPCLIP
-
1210-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1411-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
1584-88439A25 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
1684-882829A1 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
1713-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1811-68292 NUT, (.312-18)NUT, (.312-18)
-
1985-8500671 BOOT, Insulator - RedBOOT, Insulator - Red
-
2084-819514A19 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
21859611T02 PCM, Propulsion Control Module
(PCM is Marked 859610--2)PCM, Propulsion Control Module
(PCM is Marked 859610--2) -
2189790750T PCM, Propulsion Control Module
(PCM is Marked 885558001 or 885558005)PCM, Propulsion Control Module
(PCM is Marked 885558001 or 885558005) -
2210-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2312-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2425-834985 GROMMETGROMMET
-
2523-856954 BUSHINGBUSHING
-
268590881 CLIPCLIP
-
2710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2884-880051T2 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
2988-832969T20 FUSE, Mini - Yellow - 20 Ampere
(20 AMP)FUSE, Mini - Yellow - 20 Ampere
(20 AMP) -
2988-8329692 FUSE, Mini - Gray - 2 Ampere
(2 AMP)FUSE, Mini - Gray - 2 Ampere
(2 AMP) -
30858754 COVER, FuseCOVER, Fuse
-
-879346A49 HARNESS ASSEMBLY (Direct Injector)HARNESS ASSEMBLY (Direct Injector)
-
-879346A50 HARNESS ASSEMBLY (Fuel Injector)HARNESS ASSEMBLY (Fuel Injector)
-
-84-881262A2 HARNESS ASSEMBLY, Alternator, AlternatorHARNESS ASSEMBLY, Alternator, Alternator
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3210-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
3310-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
3484-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
35832948A1 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
3684-883459T01 HARNESS ASSEMBLY, DBW Boat AdaptorHARNESS ASSEMBLY, DBW Boat Adaptor
-
3784-878231A6 HARNESS ASSEMBLY, Fuse - 100 AmpereHARNESS ASSEMBLY, Fuse - 100 Ampere
-
3884-8M0113732 HARNESS ASSEMBLY, CHI PowerHARNESS ASSEMBLY, CHI Power
-
39881175A1 CAP ASSEMBLY, 3 Position-Female Connector (Counter Rotation)CAP ASSEMBLY, 3 Position-Female Connector (Counter Rotation)
-
40881176A1 CAP ASSEMBLY, 3 Position-Male Connector (Counter Rotation)CAP ASSEMBLY, 3 Position-Male Connector (Counter Rotation)
-
41881065A1 CONNECTOR, 6 Pin PlugCONNECTOR, 6 Pin Plug
