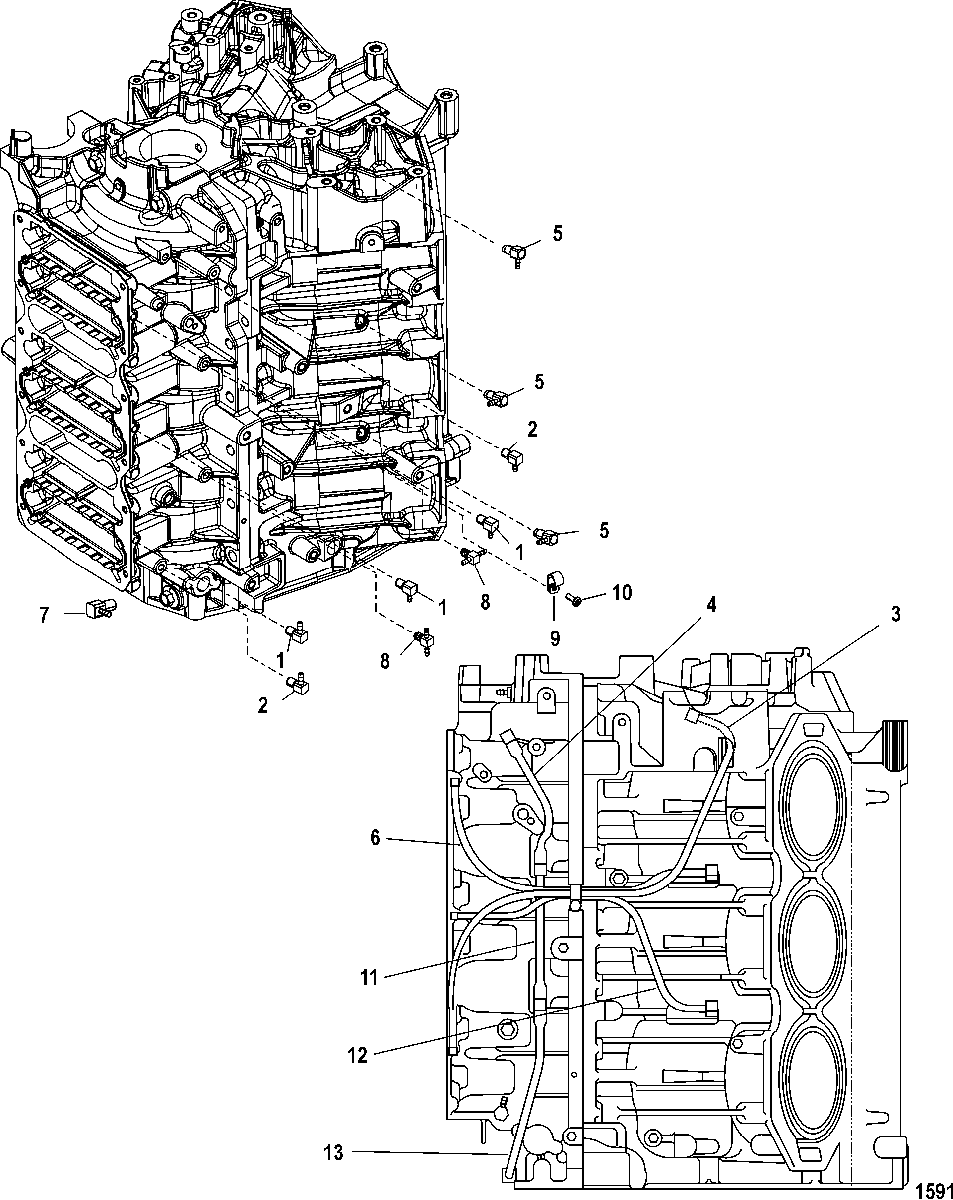

Port Center Main Oiling System для Mariner - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701
-
№АртикулНазвание
-
122-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
222-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 20-1/2 Inches)TUBING, (38.00 Inches Bulk) (Cut to 20-1/2 Inches)
-
432-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 5 Inches)TUBING, (38.00 Inches Bulk) (Cut to 5 Inches)
-
521-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
632-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 13 Inches)TUBING, (38.00 Inches Bulk) (Cut to 13 Inches)
-
721-8282182 CHECK VALVECHECK VALVE
-
821-8582362 CHECK VALVECHECK VALVE
-
954-23567 CLIPCLIP
-
1010-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1132-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 4-3/4 Inches)TUBING, (38.00 Inches Bulk) (Cut to 4-3/4 Inches)
-
1232-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 11 Inches)TUBING, (38.00 Inches Bulk) (Cut to 11 Inches)
-
1332-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 9-1/2 Inches)TUBING, (38.00 Inches Bulk) (Cut to 9-1/2 Inches)
-
-877869A07 POWERHEAD ASSEMBLY
SN# 0T800999 & BelowPOWERHEAD ASSEMBLY
SN# 0T800999 & Below -
-877869A07 POWERHEAD ASSEMBLY
SN# 0T801000 & UpPOWERHEAD ASSEMBLY
SN# 0T801000 & Up
