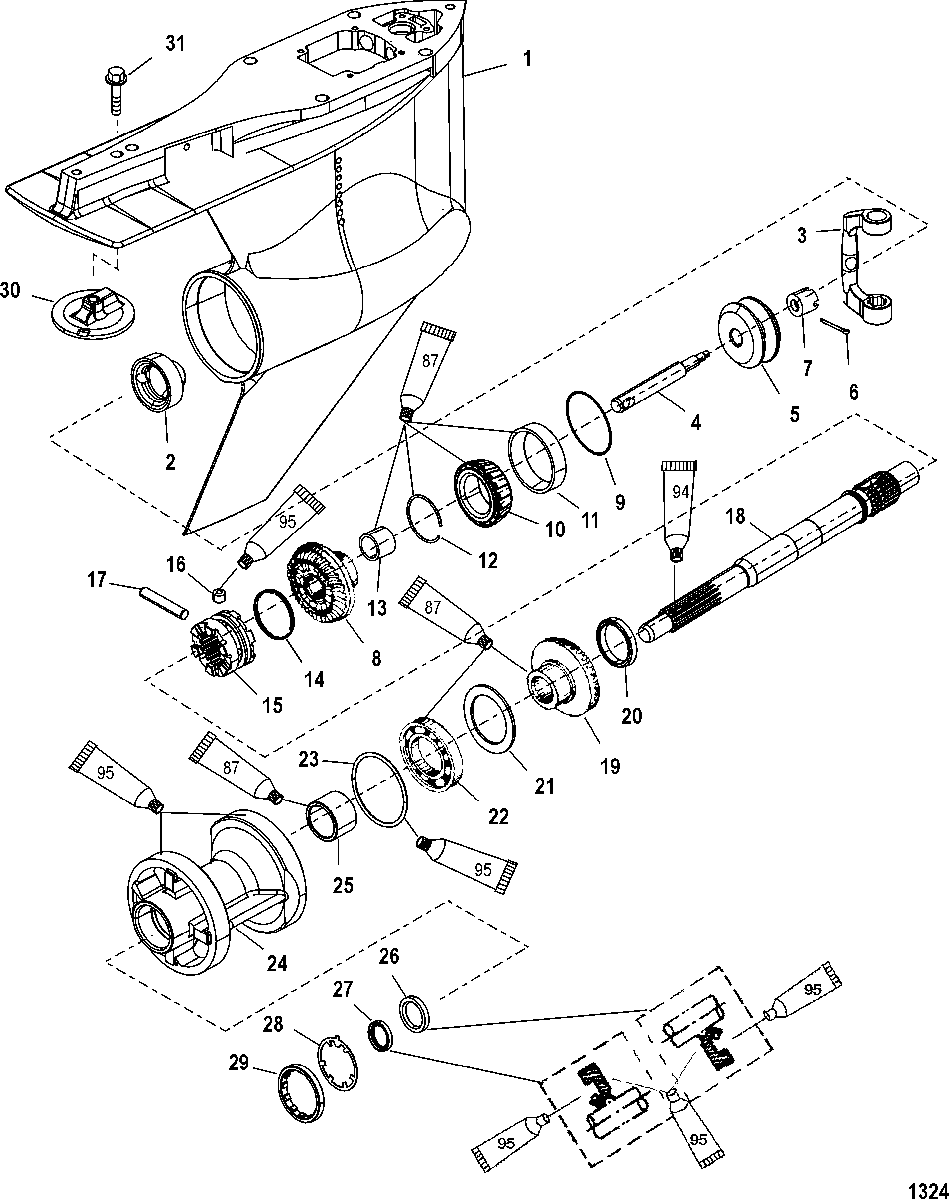

Gear Housing, Propeller Shaft - Standard Rotation для Mariner - 225 (3.0L-DFI)(DTS) 0T599000 THRU 1B417701
-
№АртикулНазвание
-
-1623-859399T13 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Long)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(Long) -
-1623-859399T14 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long) -
-1623-859399T15 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(XX-Long)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(XX-Long) -
11623-859399T18 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
222-859403 PLUGPLUG
-
3823903 SHIFT CRANKSHIFT CRANK
-
419755T7 SPOOL ASSEMBLYSPOOL ASSEMBLY
-
5NSS NOT SOLD SEPARATE, Shift SpoolNOT SOLD SEPARATE, Shift Spool
-
618-469501 COTTER PINCOTTER PIN
-
7NSS NOT SOLD SEPARATE, SleeveNOT SOLD SEPARATE, Sleeve
-
843-859321A3 GEAR SET, Forward/Pinion (12/21)GEAR SET, Forward/Pinion (12/21)
-
915-8M0063266 SHIM SETSHIM SET
-
1031-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
11NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1253-856823 RING, RetainingRING, Retaining
-
1331-30895T BEARING, NeedleBEARING, Needle
-
1424-30893 SPRINGSPRING
-
1552-859340T CLUTCHCLUTCH
-
1617-828356 PIN, DetentPIN, Detent
-
1717-8M0100263 PIN, CrossPIN, Cross
-
1844-8M0140440 PROPELLER SHAFTPROPELLER SHAFT
-
1943-859322A1 GEAR, Reverse (12/21)GEAR, Reverse (12/21)
-
2023-824108 SPACERSPACER
-
21681001 RING, ThrustRING, Thrust
-
2230-88957T BEARING, BallBEARING, Ball
-
2325-31534 O-RING
(Orange)O-RING
(Orange) -
2325-896524 O-RING, (3.850 x .210)
(Black)O-RING, (3.850 x .210)
(Black) -
24818763T11 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
2531-30956T BEARING, NeedleBEARING, Needle
-
2626-14077 SEAL, Oil (Inside)SEAL, Oil (Inside)
-
2726-76868 SEAL (Outside)SEAL (Outside)
-
2814-18323 TAB WASHERTAB WASHER
-
298M2000347 RETAINERRETAINER
-
3097-76214Q5 ANODE KITANODE KIT
-
3110-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
-NS NOT SHOWN, See Accessory Guide-Propellers-For Appropriate Hardware. (Thrust Washers/Nuts)NOT SHOWN, See Accessory Guide-Propellers-For Appropriate Hardware. (Thrust Washers/Nuts)
-
-26-816575A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
