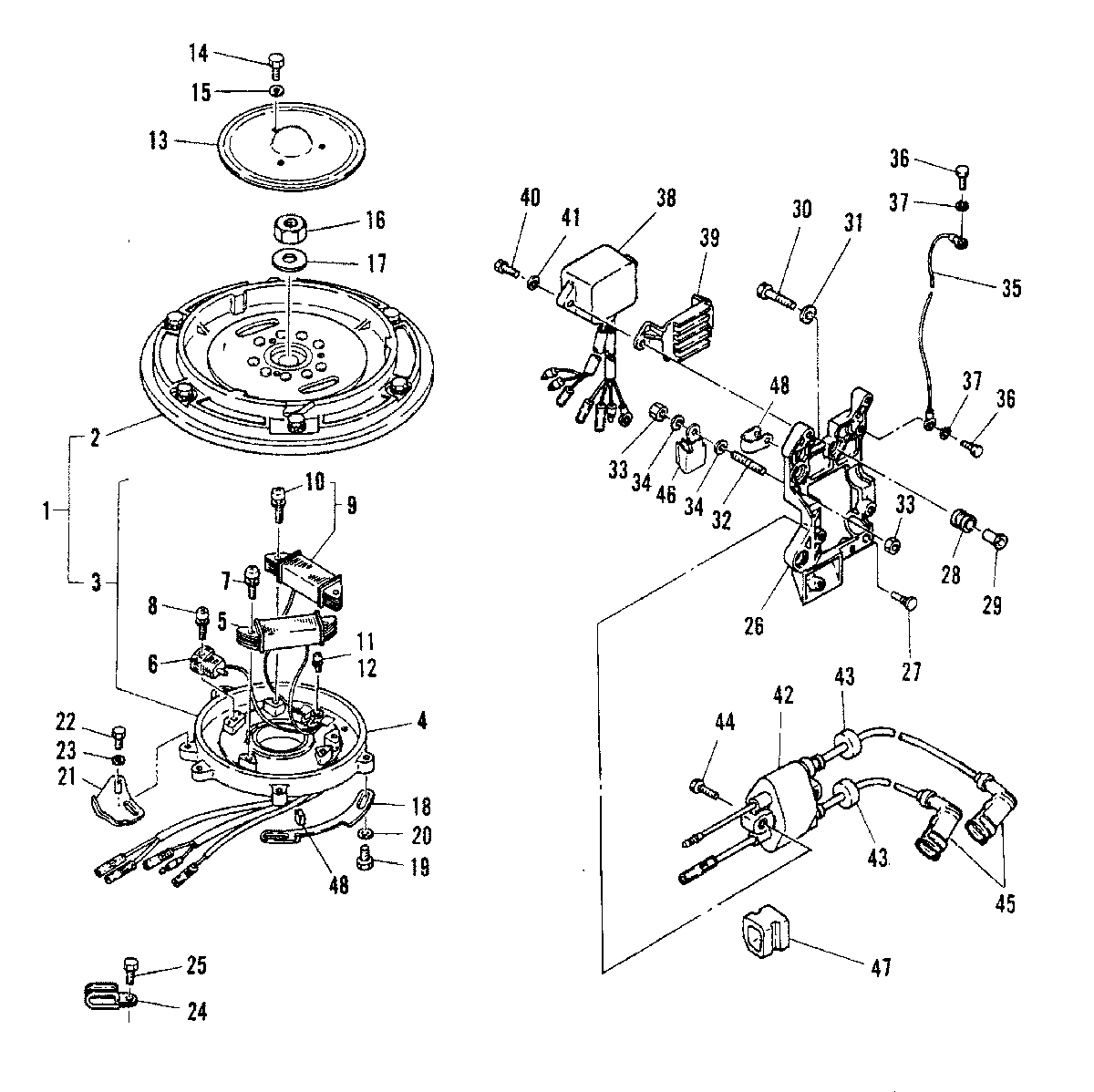

C.D.I. - MAGNETO для Mariner - 25C (THRU PROP. EXHAUST) 695-250101 THRU 253861
-
№АртикулНазвание
-
1253-8371M I. MAGNETO ASS'Y (MANUAL START MODEL)I. MAGNETO ASS'Y (MANUAL START MODEL)
-
1253-8370M I. MAGNETO ASS'Y (ELECTRIC START MODEL)I. MAGNETO ASS'Y (ELECTRIC START MODEL)
-
2253-8372M FLYWHEEL ASS'Y (MANUAL START MODEL)FLYWHEEL ASS'Y (MANUAL START MODEL)
-
2253-9514M FLYWHEEL ASS'Y (ELECTRIC START MODEL)FLYWHEEL ASS'Y (ELECTRIC START MODEL)
-
396342M BASE ASS'YBASE ASS'Y
-
496343M BASE, MAGNETOBASE, MAGNETO
-
596344M CHARGE COIL ASS"YCHARGE COIL ASS"Y
-
696345M PULSER COIL ASS'YPULSER COIL ASS'Y
-
710-96346M SCREW, W/WASHERSCREW, W/WASHER
-
810-91691M SCREW, W/WASHERSCREW, W/WASHER
-
994804M LIGHTING COIL ASS'YLIGHTING COIL ASS'Y
-
1010-97803M SCREW, W/WASHER
(SERIAL 00019911-09999999)SCREW, W/WASHER
(SERIAL 00019911-09999999) -
1010-96346M SCREW, W/WASHER
(SERIAL 00006056-00019910)SCREW, W/WASHER
(SERIAL 00006056-00019910) -
1110-91699M SCREW, W/WASHER (MANUAL START MODEL)SCREW, W/WASHER (MANUAL START MODEL)
-
1210-91693M SCREW, W/WASHER (ELECTRIC START MODELS)SCREW, W/WASHER (ELECTRIC START MODELS)
-
1380688M COVERCOVER
-
1410-91772M BOLTBOLT
-
1512-82213M WASHERWASHER
-
1611-81770M NUTNUT
-
1712-81814M WASHERWASHER
-
1899951M STOP, MAGNETO BASE
(SERIAL 00009376-09999999)STOP, MAGNETO BASE
(SERIAL 00009376-09999999) -
1899951M STOP, MAGNETO BASE
(SERIAL 00000000-00009375)STOP, MAGNETO BASE
(SERIAL 00000000-00009375) -
1910-91772M BOLTBOLT
-
2012-82213M WASHERWASHER
-
2192591M CAMCAM
-
2210-84313M BOLTBOLT
-
2312-82211M WASHERWASHER
-
2454-96348M CLAMPCLAMP
-
2510-84088M BOLTBOLT
-
2696349M BRACKETBRACKET
-
2784869M DAMPERDAMPER
-
2881523M DAMPERDAMPER
-
2923-804344003 COLLARCOLLAR
-
3010-82405M BOLTBOLT
-
3112-83769M WASHERWASHER
-
3216-84870M STUDSTUD
-
3311-82389M NUTNUT
-
3412-82214M WASHERWASHER
-
3584-84871M WIRE, GROUNDWIRE, GROUND
-
3610-91772M BOLTBOLT
-
3713-82212M WASHERWASHER
-
3843077T I. UNIT ASS'YI. UNIT ASS'Y
-
3984873M BRACKETBRACKET
-
4010-82405M BOLTBOLT
-
4112-82214M WASHERWASHER
-
4295188T IGNITION COIL ASS'YIGNITION COIL ASS'Y
-
4325-82069M GROMMETGROMMET
-
4410-82405M BOLTBOLT
-
4585-815119M PLUG CAP ASS'Y (NOISE SUPPRESSOR) STDPLUG CAP ASS'Y (NOISE SUPPRESSOR) STD
-
4585-63709A1 PLUG CAP ASS'YPLUG CAP ASS'Y
-
4654-96352M CLAMPCLAMP
-
4725-84876M GROMMETGROMMET
-
4854-96353M CLAMPCLAMP
-
4999952M CLAMP
(SERIAL 00009376-09999999)CLAMP
(SERIAL 00009376-09999999)
