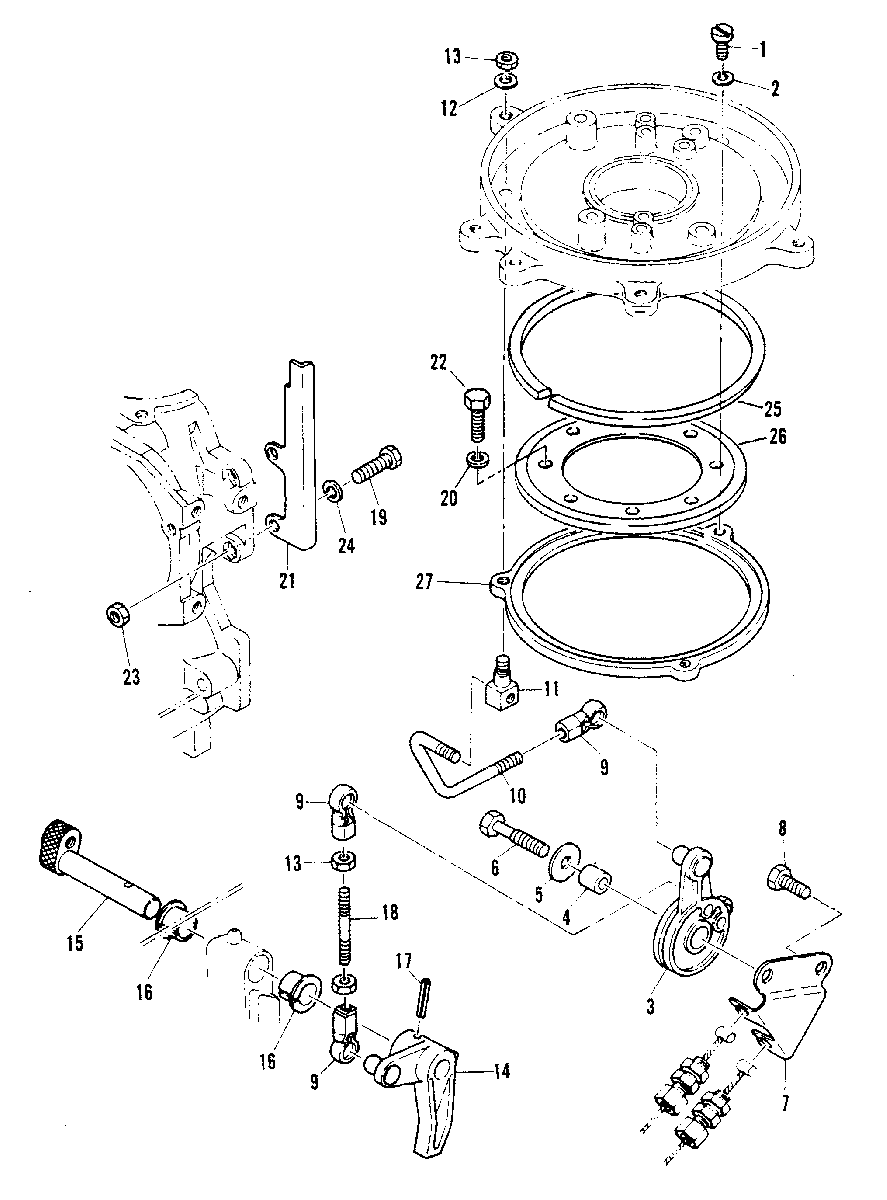

THROTTLE CONTROL для Mariner - 25C (THRU PROP. EXHAUST) 695-250101 THRU 253861
-
№АртикулНазвание
-
110-83523M SCREW, BASE ATTACHINGSCREW, BASE ATTACHING
-
212-82211M WASHER, LOCKWASHER, LOCK
-
381581T CAM, MAGNETO CONTROLCAM, MAGNETO CONTROL
-
423-83310M COLLARCOLLAR
-
512-81969M WASHERWASHER
-
610-82405M BOLTBOLT
-
781563M BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
810-91772M BOLTBOLT
-
916715M JOINTJOINT
-
1081582M LINK ROD, MAGNETO CONTROLLINK ROD, MAGNETO CONTROL
-
1180629M SWIVEL, LINK RODSWIVEL, LINK ROD
-
1212-81789M WASHERWASHER
-
1311-82388M NUTNUT
-
1491651M LEVER, THROTTLE SHAFT
(SERIAL 00009376-09999999)LEVER, THROTTLE SHAFT
(SERIAL 00009376-09999999) -
1492589M LEVER, THROTTLE SHAFT
(SERIAL 00000000-00009375)LEVER, THROTTLE SHAFT
(SERIAL 00000000-00009375) -
1581134M SHAFT, THROTTLESHAFT, THROTTLE
-
1623-81946M BUSHINGBUSHING
-
1717-82156M PIN, ROLLPIN, ROLL
-
1816-81722M LINK RODLINK ROD
-
1910-84058M BOLTBOLT
-
2012-82214M WASHER
(SERIAL 00000000-00019910)WASHER
(SERIAL 00000000-00019910) -
2196378M STOP, MAGNETO BASE
(SERIAL 00006086-09999999)STOP, MAGNETO BASE
(SERIAL 00006086-09999999) -
2180628M STOP, MAGNETO BASE
(SERIAL 00000000-00006085)STOP, MAGNETO BASE
(SERIAL 00000000-00006085) -
2210-84058M BOLTBOLT
-
2311-82389M NUTNUT
-
2412-82214M WASHERWASHER
-
2592572M PLATE, FRICTIONPLATE, FRICTION
-
2692573M RETAINER, MAGNETO BASE (UPPER)RETAINER, MAGNETO BASE (UPPER)
-
2796379M RETAINER, MAGNETO BASE
(SERIAL 00019911-09999999)RETAINER, MAGNETO BASE
(SERIAL 00019911-09999999) -
2783199M RETAINER, MAGNETO BASE
(SERIAL 00000000-00019910)RETAINER, MAGNETO BASE
(SERIAL 00000000-00019910)
