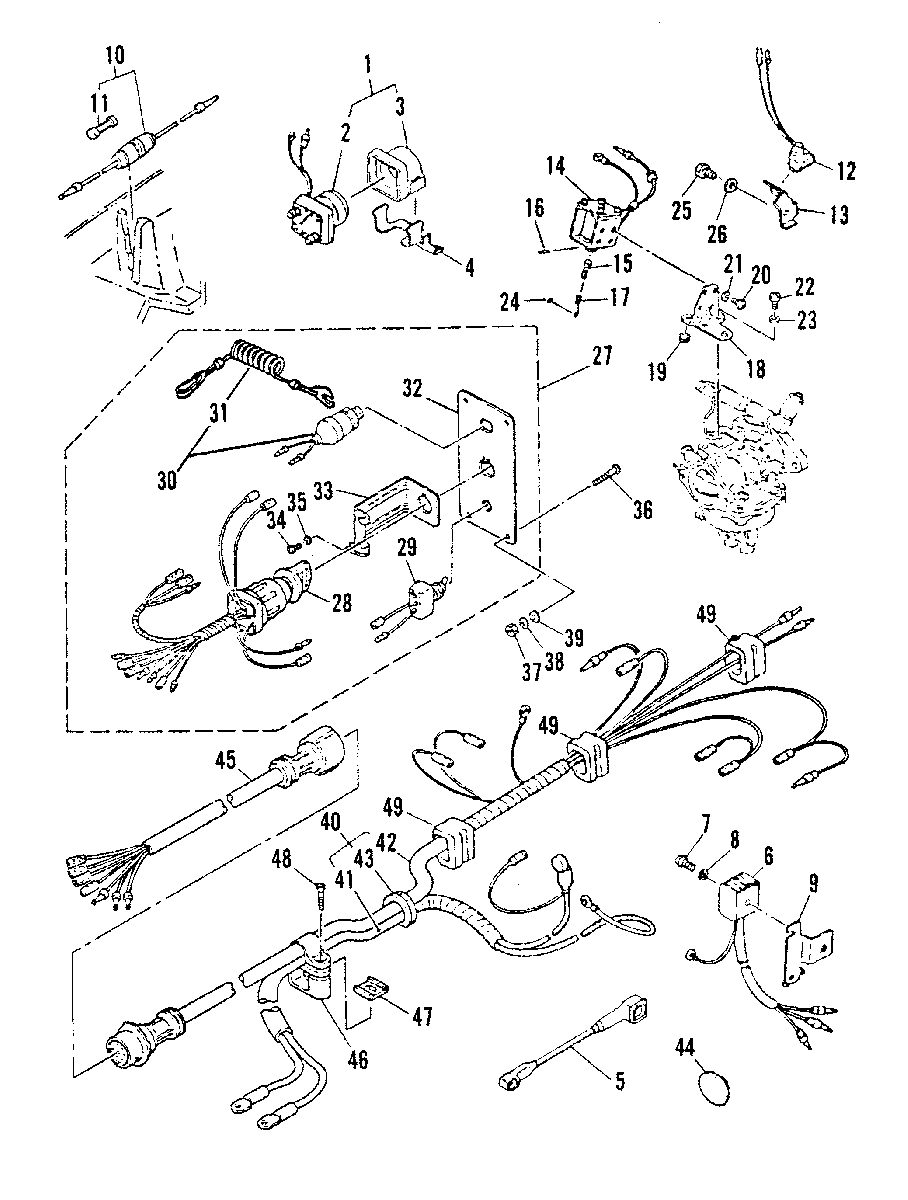

ELECTRIC START COMPONENTS для Mariner - 25C (THRU PROP. EXHAUST) 695-250101 THRU 253861
-
№АртикулНазвание
-
189-8M0098898 STARTER SOLENOID ASS'YSTARTER SOLENOID ASS'Y
-
289-96357T SOLENOIDSOLENOID
-
384934M MOUNTING BRACKETMOUNTING BRACKET
-
492601M PLATE, SOLENOID MOUNTINGPLATE, SOLENOID MOUNTING
-
584-96358M WIRE, SOLENOID
(SERIAL 00251106-09999999)WIRE, SOLENOID
(SERIAL 00251106-09999999) -
584-92602M WIRE, SOLENOID
(SERIAL 00000000-00251105)WIRE, SOLENOID
(SERIAL 00000000-00251105) -
68M0091976 RECTIFIERRECTIFIER
-
710-83108M SCREWSCREW
-
812-82211M WASHERWASHER
-
992603M PLATE, RECTIFIER MOUNTINGPLATE, RECTIFIER MOUNTING
-
1084937M FUSE ASS'YFUSE ASS'Y
-
1188-81522M FUSEFUSE
-
1287-97684M NEUTRAL START SWITCHNEUTRAL START SWITCH
-
1381110M PLATE, SWITCH AND LOCKOUT MOUNTINGPLATE, SWITCH AND LOCKOUT MOUNTING
-
1484940M CHOKE SOLENOIDCHOKE SOLENOID
-
1584411M HOOK, WIREHOOK, WIRE
-
1617-82145M PIN, ROLLPIN, ROLL
-
1724-81667M WIRE, PULLWIRE, PULL
-
1884941M PLATE, SOLENOID MOUNTINGPLATE, SOLENOID MOUNTING
-
1925-82060M GROMMETGROMMET
-
2010-82512M SCREWSCREW
-
2112-82847M WASHERWASHER
-
2210-14232M SCREWSCREW
-
2312-82211M WASHERWASHER
-
2425-82258M O-RINGO-RING
-
2510-91772M BOLTBOLT
-
2612-82214M WASHER, LOCKWASHER, LOCK
-
2718975A1 SWITCH PANEL ASS'Y
(SERIAL 00009376-09999999)SWITCH PANEL ASS'Y
(SERIAL 00009376-09999999) -
2797769M SWITCH PANEL ASS'Y
(SERIAL 00006086-00009375)SWITCH PANEL ASS'Y
(SERIAL 00006086-00009375) -
2792604M SWITCH PANEL ASS'Y
(SERIAL 00000000-00006085)SWITCH PANEL ASS'Y
(SERIAL 00000000-00006085) -
2887-8M0078321 KEY SWITCH
(SERIAL 00006086-09999999)KEY SWITCH
(SERIAL 00006086-09999999) -
2887-92605M KEY SWITCH
(SERIAL 00000000-00006085)KEY SWITCH
(SERIAL 00000000-00006085) -
2987-84944M CHOKE SWITCHCHOKE SWITCH
-
3087-97682M KILL SWITCH ASS'YKILL SWITCH ASS'Y
-
3197756M STOPPERSTOPPER
-
3242435M PANEL
(SERIAL 00019911-09999999)PANEL
(SERIAL 00019911-09999999) -
3292661M PANEL
(SERIAL 00000000-00019910)PANEL
(SERIAL 00000000-00019910) -
3381537M BRACKETBRACKET
-
3410-82500M SCREWSCREW
-
3513-82206M WASHER, LOCKWASHER, LOCK
-
3610-80164M SCREW
(SERIAL 00019911-09999999)SCREW
(SERIAL 00019911-09999999) -
3610-84946M SCREW
(SERIAL 00000000-00019910)SCREW
(SERIAL 00000000-00019910) -
3711-82377M NUT
(SERIAL 00019911-09999999)NUT
(SERIAL 00019911-09999999) -
3711-82388M NUT
(SERIAL 00000000-00019910)NUT
(SERIAL 00000000-00019910) -
3813-82186M WASHER, LOCKWASHER, LOCK
-
3912-82847M WASHER
(SERIAL 0M019911-0Z999999)WASHER
(SERIAL 0M019911-0Z999999) -
3912-82211M WASHER
(SERIAL 00000000-00019910)WASHER
(SERIAL 00000000-00019910) -
4084-95646M ENGINE WIRING HARNESS
(SERIAL 00025701-09999999)ENGINE WIRING HARNESS
(SERIAL 00025701-09999999) -
4084-96354M ENGINE WIRING HARNESS
(SERIAL 00000000-00251700)ENGINE WIRING HARNESS
(SERIAL 00000000-00251700) -
4184-97771M WIRE ASS'Y, BATTERY
(SERIAL 00251701-09999999)WIRE ASS'Y, BATTERY
(SERIAL 00251701-09999999) -
4184-96355M WIRE ASS'Y, BATTERY
(SERIAL 00000000-00251701)WIRE ASS'Y, BATTERY
(SERIAL 00000000-00251701) -
4284-95647M WIRE ASS'Y< IGNITION
(SERIAL 00251106-09999999)WIRE ASS'Y< IGNITION
(SERIAL 00251106-09999999) -
4284-95671M >WIRE ASS'Y, IGNITION
(SERIAL 00000000-00251105)>WIRE ASS'Y, IGNITION
(SERIAL 00000000-00251105) -
4325-84950M GROMMETGROMMET
-
4482066M GROMMETGROMMET
-
4584-84711M EXTENSION, WIRE HARNESS (5M)EXTENSION, WIRE HARNESS (5M)
-
4654-97772M CLAMP
(SERIAL 00251701-09999999)CLAMP
(SERIAL 00251701-09999999) -
4654-97772M CLAMP
(SERIAL 00000000-00251700)CLAMP
(SERIAL 00000000-00251700) -
4784708M PLATEPLATE
-
4810-84709M SCREWSCREW
-
4925-84876M GROMMETGROMMET
